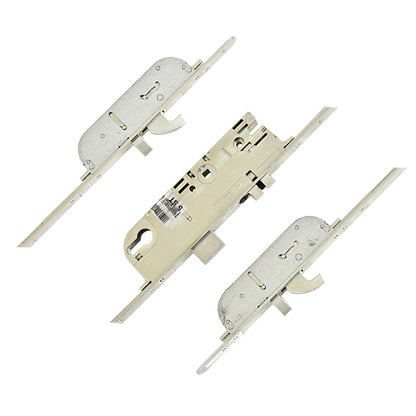

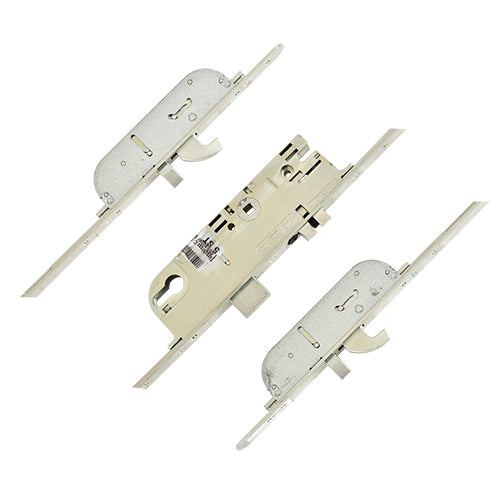

Latch & Deadbolt 2 Hooks 2 Anti Lift Bolts Split Spindle Multipoint Door Lock

Product Overview: Maco C-TS Multipoint Door Lock

The Maco C-TS multipoint door lock is designed for enhanced security and functionality, featuring a robust configuration that includes 2 rollers, 1 deadbolt, 1 latch, and 2 anti-lift bolts.

Key Features:

• Innovative Design: Introduced in 2012, the C-TS range replaces the older G-TS series, offering a split spindle mechanism that allows for both lift lever and split spindle functions.
• Identification: C-TS locks can be easily identified by the Maco logo on the faceplate and the unique shape of the locking gearboxes once removed.
• Faceplate Options: Available in traditional 16mm and 20mm faceplates, the C-TS locks also offer a "Top Hat" faceplate option. This innovative design features a 16mm faceplate that fits into the euro groove, topped with a 24mm faceplate that conceals routing details for a seamless finish.
• Distinctive Shape: The C-TS locks are characterized by their rounded main gearbox and hook boxes, with a notably rounded corner next to the euro cut-out.
• Compact Size: Measuring 202mm high, these locks are among the smaller gearboxes available, featuring a "soft" latch that is split in half. Note that Maco provides various latch variants, so this feature alone may not definitively identify the lock.
• Specifications: The latch and deadbolt each measure 30mm high, with a spacing of 55mm between them. They are secured to the faceplate with three screws, with specific measurements for screw placement.
• Backset Measurement: When measuring the backset, account for an additional 2-3mm for the faceplate. For instance, a 35mm backset gearbox will measure 32mm when detached from the strip.
• Security Features: The C-TS locks come with different hook locking arrangements, including a standard uni-directional hook and a higher security hook with an anti-lift pin.

Operation Instructions:

• To Lock the Door:
  • Lift the handle upwards to engage the locking points.
  • Secure the locking points and main deadbolt (if applicable) by turning the key.
• To Unlock the Door:
  • Turn the key to unlock the system.
  • Push the handle downwards to disengage the locking points and retract the latch.

Durability: The Maco Protect C-TS locks are endurance tested to withstand up to 100,000 cycles, ensuring long-lasting performance and reliability.

For any replacements or inquiries regarding the Maco A-TS locks, we have stock available to meet your needs.

Product Specification

• Manufacturer: Maco
• Spindle Size: 8mm
• Hooks: 2
• Deadbolts: 1
• Latch: 1
• Anti Lift Bolts: 2
• Main Gearbox: Latch & deadbolt
• Spindle: Split 8mm
• Handing: Non handed
• Distance Between Outer Locking: 1490mm
• Height: 2100mm
• Top Hook to Spindle: 730mm
• Bottom Hook to Spindle: 760mm
• Door Material: UPVC, Aluminium

Measuring Guidelines:

To ensure accurate measurements for your Maco C-TS multipoint door lock, follow these guidelines:

Backset Measurement: To measure the backset, take a ruler and measure the distance from the edge of the door to the center of the lock cylinder. Remember to account for an additional 2-3mm for the faceplate thickness.

Centres PZ Measurement: To measure the centres, find the distance between the center of the keyhole and the center of the handle hole. This is typically 92mm for the C-TS locks.

Faceplate Measurement: For the faceplate, measure the width and length of the faceplate itself. The C-TS locks feature a 16mm flat end faceplate, which should be measured from edge to edge.

By following these steps, you can ensure that your door lock installation is precise and secure. If you have any further questions or need assistance, feel free to reach out!
