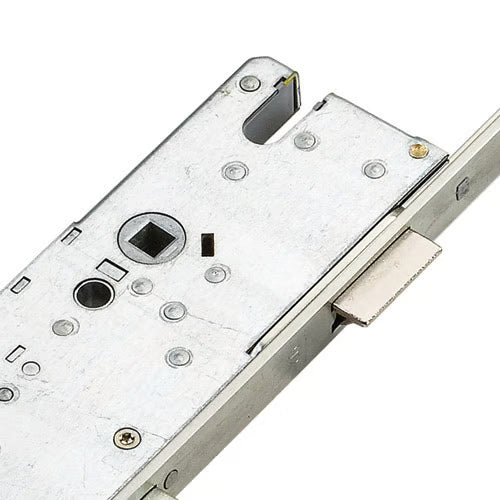

Latch Deadbolt 2 Hooks 16mm Flat Faceplate Lift Lever Multipoint Door Lock

Product Overview: Winkhaus Trulock Multipoint Door Lock

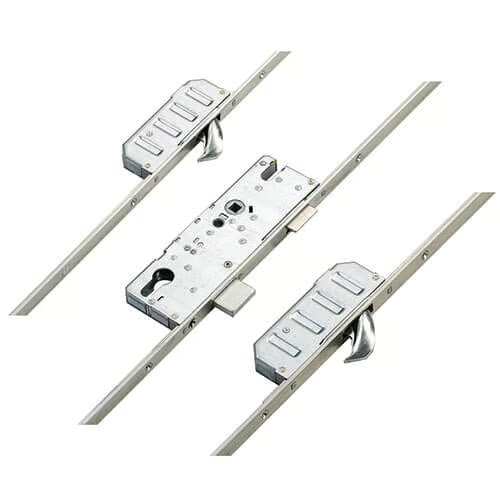

The Winkhaus Trulock multipoint door lock is engineered for security and reliability, featuring a robust design that includes 2 hooks, 1 deadbolt, and 1 latch. This locking system is ideal for timber and composite doors, particularly in social housing and new build projects.

Key Features:

• Multi-Point Locking System: The Trulock system incorporates a central latch and deadbolt, complemented by 2 or more hook locking points, ensuring enhanced security.
• Operation Options: Available in lift lever operation, split spindle, or key wind, providing flexibility to suit various user preferences.

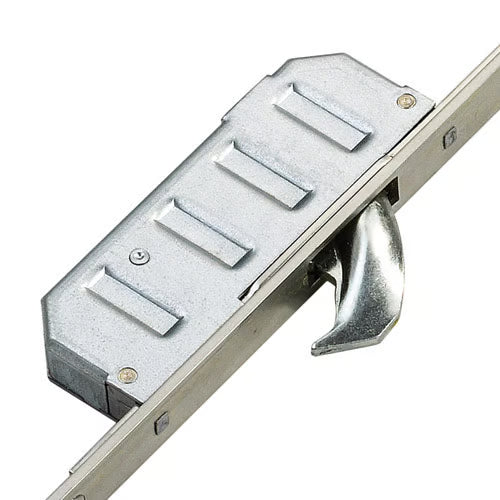

• Handed Hook Locking Points: Trulocks are designed with handed hooks that cannot be reversed on-site, ensuring precise fitting and operation.
• Identification: Easily identify the Trulock by checking the faceplate for the Winkhaus logo and the Secured by Design logo. The central deadbolt and handed hooks are key indicators of this model.
• Interchangeability: The Trulock gearbox shares routing details with Cobra locks, allowing for straightforward upgrades or changes in locking operations. New keeps and handles may be necessary for modifications.

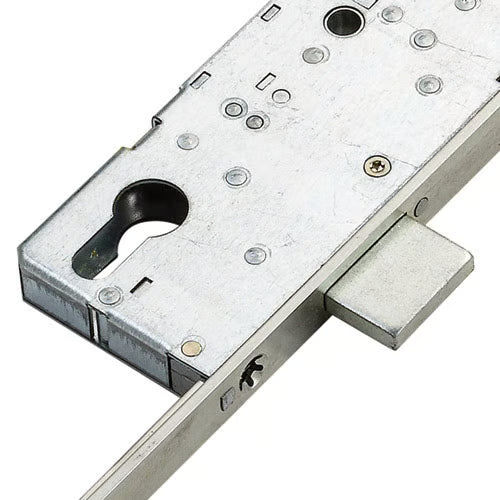

• Compact Gearbox Design: All Winkhaus gearboxes, except the AV4, measure 185mm high with a backset of +15mm, making them among the smallest on the market. The design includes a groove above the spindle for easy handle fitting.
• Rivet Attachment: Gearboxes are attached to the faceplate with rivets, making them unique and easily identifiable. For detailed instructions on replacing a Winkhaus gearbox, refer to our guide and video.
• Versatile Gearbox Options: Trulock gearboxes feature a latch and deadbolt and are available in various operations. The color-coded stickers on the side of the gearbox indicate the type: blue for lift lever, green for split spindle, and red for key wind. The split spindle option offers versatility, allowing it to function as a lever-operated lock.
• Legacy Models: Older Winkhaus gearboxes may have screws for attachment and a passivated yellow finish. These models are no longer available but can be identified by their operation stickers.

Installation and Operation:

• Fitting Tolerance: The specially designed tensile steel handed hook with a 4.5mm chamfer allows for a high degree of fitting tolerance, enhancing door installation.
• Locking Procedure:
  • Lift the handle upwards to engage the locking points.
  • Secure the locking points and main deadbolt by turning the key.
• Unlocking Procedure:
  • Turn the key to unlock the system.
  • Push the handle downwards to disengage the locking points and retract the latch.

Security Assurance: The Winkhaus Trulock has been rigorously tested to withstand 100,000 cycles, ensuring long-lasting performance and security for your doors.

For more information or assistance, please refer to our comprehensive guides or contact our support team.

Product Specification

• Manufacturer: Winkhaus
• Spindle Size: 8mm
• Hooks: 2
• Deadbolts: 1
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Spindle: Split 8mm
• Handing: Right Hand
• Distance Between Inner Locking: 1490mm
• Height: 2100mm
• Top Hook to Spindle: 720mm
• Bottom Hook to Spindle: 770mm

For precise measurements, follow these guidelines:

Measuring the Backset: To measure the backset, take a tape measure and measure the distance from the edge of the door to the center of the lock cylinder. This measurement is crucial for ensuring a proper fit.

Measuring the Centres (PZ): The PZ measurement is the distance from the center of the lock cylinder to the center of the handle spindle. Use a tape measure to find this distance accurately.

Measuring the Faceplate: To measure the faceplate, you need to measure the width and height of the existing faceplate on the door. This ensures that the new faceplate will fit perfectly without any gaps.

If you have any further questions or need assistance with installation, feel free to reach out to our support team!
