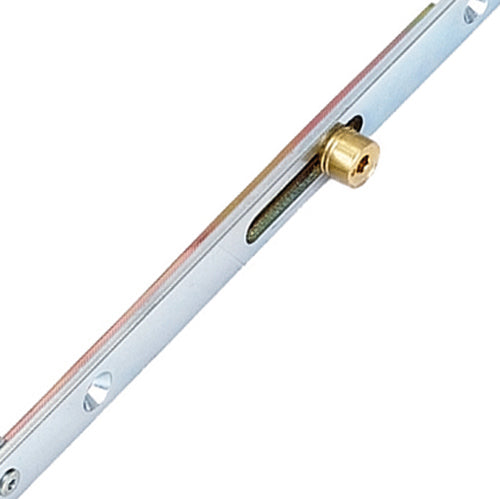

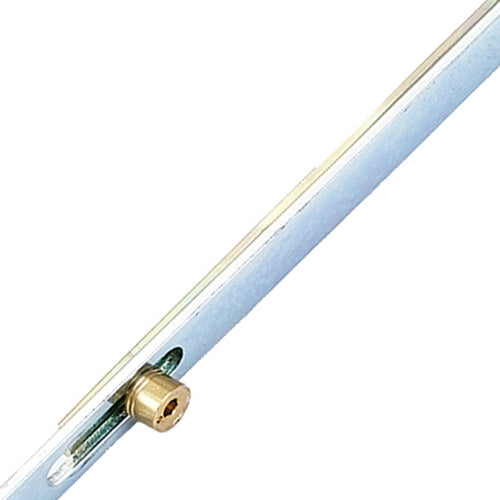

Latch Deadbolt 2 Hook 2 Roller Lift Lever Multipoint Door Lock

Product Overview: KFV Lever Multipoint Door Lock

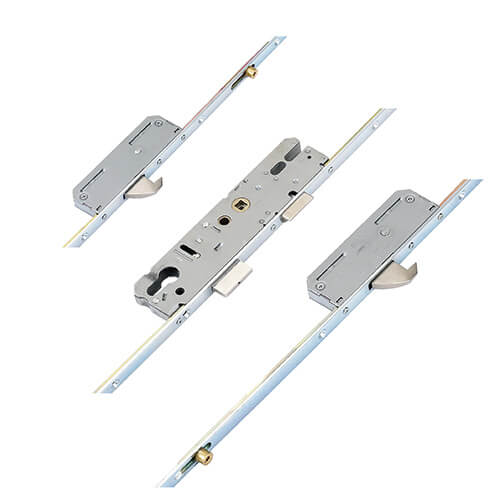

The KFV Lever multipoint door lock is designed for enhanced security and durability, featuring a robust configuration that includes 2 Rollers, 2 Hooks, 1 Deadbolt, and 1 Latch.

Identification Tips

Identifying a KFV multipoint door lock can be tricky. While earlier models lacked a stamp on the faceplate, recent versions proudly display the KFV logo. To accurately identify the lock, it’s advisable to remove it from the door.

• Faceplate Colors: Early models have a yellow passivated faceplate and dark grey gearboxes, while newer models feature shiny silver faceplates and light grey gearboxes.
• Measurements: Use the provided outline drawings to match measurements for precise identification.

Modular Design and Compatibility

KFV locks have evolved, with many older models now discontinued. The new modular design eliminates the need for changing routing positions during installation. However, when replacing old locks, adjustments may be necessary, such as moving keeps or repositioning hook boxes, especially if there’s limited clearance.

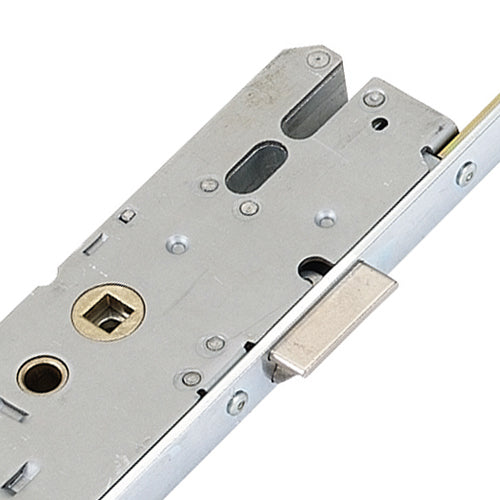

• Gearbox Specifications: KFV multipoint door lock gearboxes are single spindle with 92mm centers.
• Dimensions:
  • Overall height: 210mm
  • Bolt throw: 21mm
  • Distance from latch to deadbolt: 56mm
  • Distance from spindle to top of case: 85mm

Connection and Variants

Older KFV gearboxes are typically connected to the faceplate with 1/8" rivets, a rare feature that aids in identification. In contrast, newer models use screws for attachment. KFV locks are available in both lift lever and key wind variants, and it’s important to note that these cannot be interchanged.

Hook Locking Arrangements

KFV multipoint locks feature two types of hook locking arrangements:

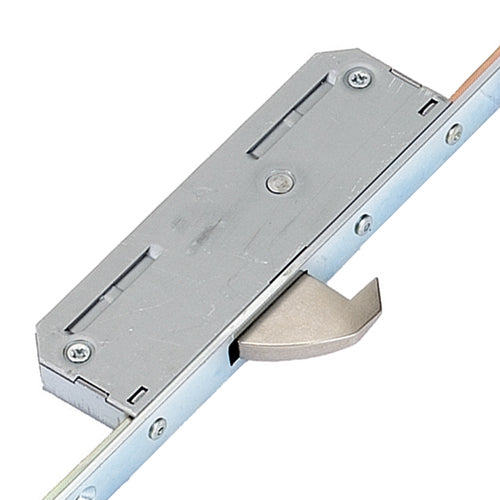

1. Standard Hook: Typically throws upwards, regardless of its position on the door.
2. Hook and Anti-Lift Pin: Offers higher security with additional protection against forced entry. This arrangement requires special keeps due to the close proximity of the pin and hook bolt.

Deadbolt and Roller Functionality

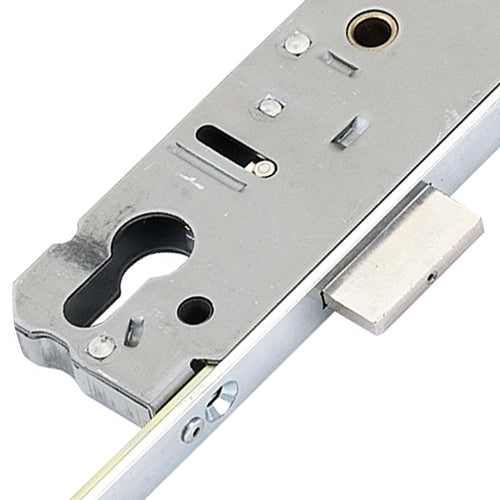

KFV deadbolts are characterized by a chamfered center, aiding in proper alignment with the keep. The unique shape, with raised sections at the top and bottom, assists in lock identification.

Operating Instructions: Lift Lever

• To Lock the Door:
  • Lift the handle upwards to engage the locking points.
  • Secure the locking points and main deadbolt (if applicable) by turning the key.
• To Unlock the Door:
  • Turn the key to unlock the system.
  • Push the handle downwards to disengage the locking points and retract the latch.

Product Specification

• Manufacturer: KFV
• Spindle Size: 8mm
• Rollers: 2
• Hooks: 2
• Deadbolts: 1
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Spindle: Single 8mm
• Handing: Non handed
• Distance Between Inner Locking: 1185mm
• Distance Between Outer Locking: 1595mm
• Height: 2230mm
• Top Hook to Spindle: 575mm
• Bottom Hook to Spindle: 610mm
• Top Roller to Spindle: 745mm
• Bottom Roller to Spindle: 850mm
• Door Material: UPVC, Aluminium

Measuring Guidelines

To ensure accurate measurements for your KFV multipoint door lock, follow these guidelines:

• Backset Measurement:
  • Measure from the edge of the door to the center of the lock cylinder.
  • Ensure to account for any faceplate thickness when determining the backset.
• Centres PZ Measurement:
  • Measure the distance from the center of the keyhole to the center of the handle.
  • This measurement is crucial for ensuring compatibility with your door hardware.
• Faceplate Measurement:
  • Measure the width and height of the faceplate.
  • Ensure to check the thickness as well, as this can affect installation.

By following these steps, you can ensure that your KFV multipoint door lock is properly fitted and functions optimally.
