Latch and Deadbolt Multipoint Gearbox - Lift Lever or Double Spindle

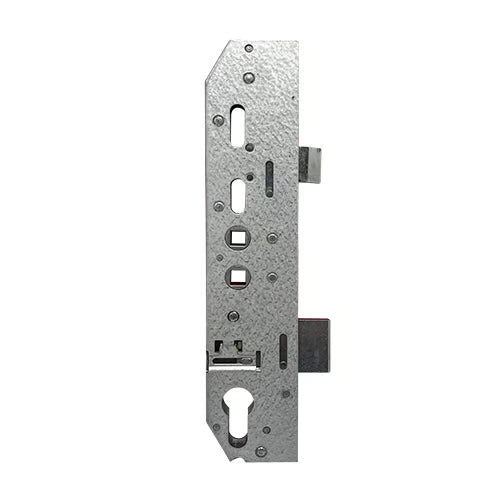

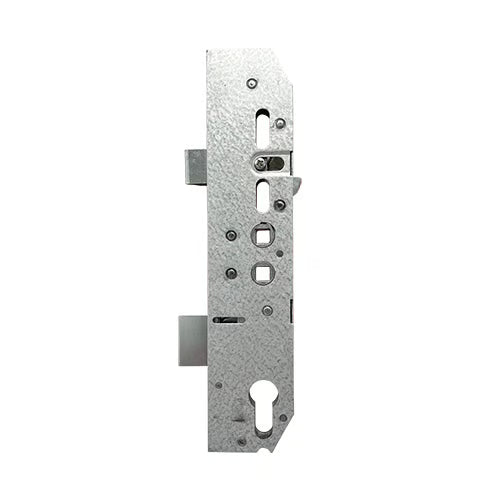

Product Overview: Swiftframe Gearbox

The Swiftframe gearbox is designed for durability and versatility, featuring a double spindle with 92/70mm centres. It is essential to note that the fixing points are not threaded, necessitating the use of self-tapping screws for installation.

Key Features:

• Configurations: Available in latch-only and latch & deadbolt options, with a double spindle design.

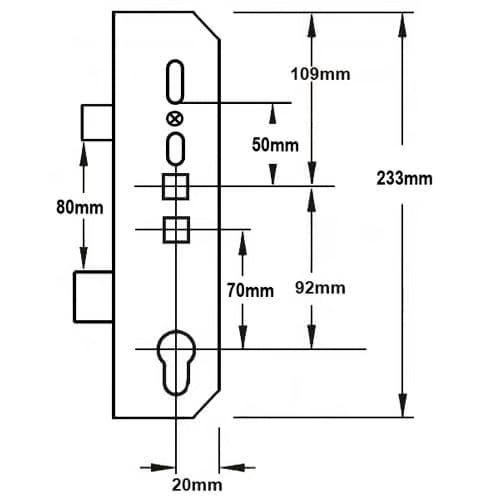

• Dimensions:

  • Case Height: 233mm
  • Case Width: 55mm
  • Backset: 35mm (Refer to our guide on how to measure the backset)

• Latch and Deadbolt Measurements:

  • Latch Height: 20mm
  • Deadbolt Height: 30mm
  • Distance between Latch and Deadbolt: 80mm

Compatibility Note: Older locks may feature an offset or cranked connector. When replacing a gearbox, it's crucial to adapt the drive gear behind the faceplate, as replacement gearboxes now come with inline connectors. Follow our technical guide for detailed instructions on modifying the drive gear.

Operation Instructions:

• To Lock the Door:

  1. Close the door to automatically engage the latch.
  2. Lift the handle to engage additional locking points.
  3. Throw the deadbolt and secure the system by turning the key (some brands may allow the deadbolt to be thrown by lifting the handle).

• To Unlock the Door:

  1. Turn the key to unlock the system.
  2. Push the handle down to disengage the locking points.
  3. A further quarter turn of the key will retract the latch.

Latch Reversal: To reverse the latch, simply undo the screw on the side of the lock case, remove the latch, reverse it, reinsert, and replace the screw.

Product Specifications:

• Manufacturer: Swiftframe
• Centres PZ: 92mm/70mm (Refer to our guide on how to measure the centres)
• Copy/Genuine: Copy
• Cylinder Type: Euro
• Handing: Not Handed
• Main Gearbox: Latch & deadbolt
• Spindle: Double 8mm
• Packaging: Supplied in singles

This Swiftframe gearbox is a reliable choice for enhancing the security and functionality of your doors. For any further assistance or technical guidance, please refer to our comprehensive resources.
