Latch and Deadbolt Multipoint Gearbox - Lift Lever or Double Spindle

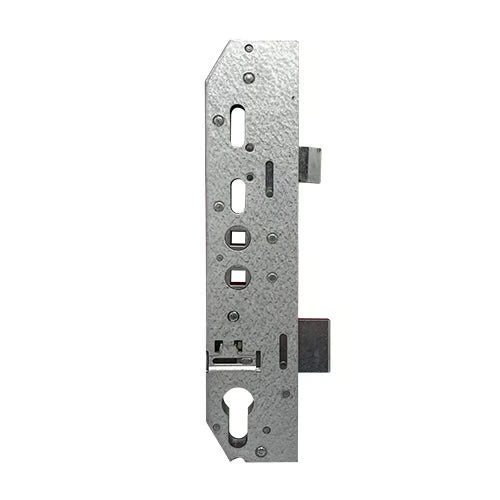

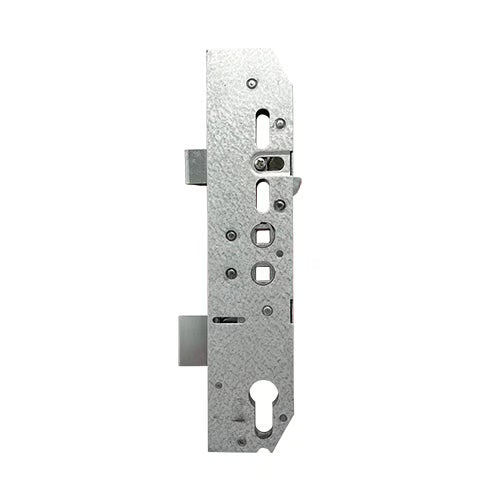

Product Overview: Swiftframe Gearbox

The Swiftframe gearbox is designed for durability and versatility, featuring a double spindle with 92/70mm centres. It is essential to note that the fixing points are not threaded, necessitating the use of self-tapping screws for installation.

Configurations Available:

• Latch-only
• Latch and deadbolt
• Double spindle

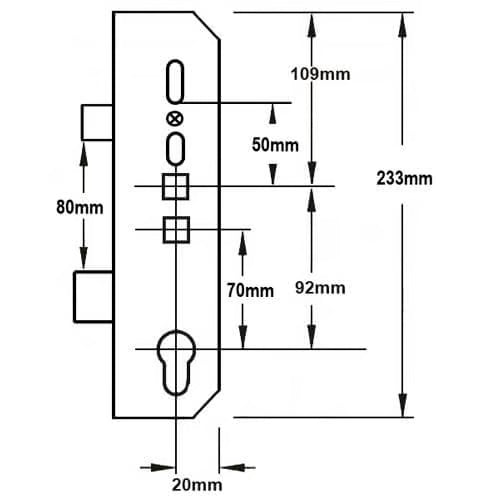

Dimensions:

• Case Height: 233mm
• Case Width: 55mm
• Backset: 35mm (Refer to our guide on how to measure the backset)
• Latch Height: 20mm
• Deadbolt Height: 30mm
• Distance Between Latch and Deadbolt: 80mm

Important Considerations:

When replacing a gearbox, be aware that some older locks may feature an offset or cranked connector. Replacement gearboxes are now only available with inline connectors, which are compatible with older locks. However, you will need to adapt the drive gear behind the faceplate. This involves cutting a square hole in the drive gear to create a slot for proper functionality. Please consult our technical guide for detailed instructions.

Operation Instructions:

• To Lock the Door:

  1. Close the door to automatically engage the latch.
  2. Lift the handle to engage additional locking points.
  3. Throw the deadbolt and secure the system by turning the key (note: on some brands, lifting the handle will throw the deadbolt).

• To Unlock the Door:

  1. Turn the key to unlock the system.
  2. Push the handle down to disengage the locking points.
  3. A further quarter turn of the key will retract the latch.

Product Specifications:

• Manufacturer: Swiftframe
• Centres PZ: 92mm/70mm (Refer to our guide on how to measure the centres)
• Copy/Genuine: Copy
• Cylinder Type: Euro
• Handing: Not Handed
• Main Gearbox: Latch & deadbolt
• Spindle: Double 8mm
• Operation: Double spindle (What is the operation?)
• Packaging: Supplied in singles

This Swiftframe gearbox is an excellent choice for those seeking reliability and ease of use in their locking systems.
