Latch 5 Deadbolts Split Spindle Multipoint Door Lock

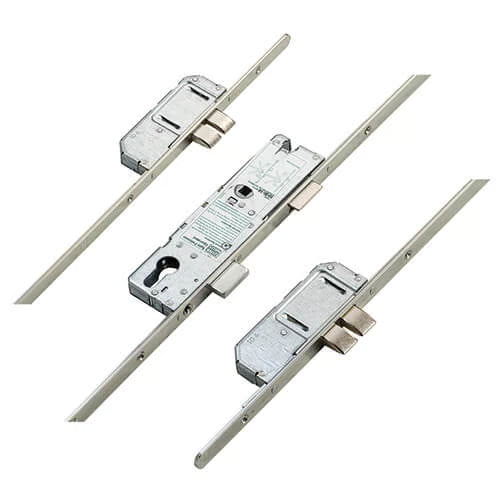

Winkhaus Thunderbolt Multipoint Door Lock

The Winkhaus Thunderbolt multipoint door lock is engineered for security and reliability, featuring an impressive configuration of 5 deadbolts and 1 latch. This unique design includes chamfered deadbolts positioned at both the top and bottom, ensuring enhanced protection for your doors.

Key Features:

• Versatile Operation: Available in lift lever, split spindle, or key wind operation, catering to various user preferences.
• Robust Design: The Thunderbolt is characterized by its central latch and deadbolt, complemented by twin deadbolts, making it suitable for timber, composite, and PVCu doors.

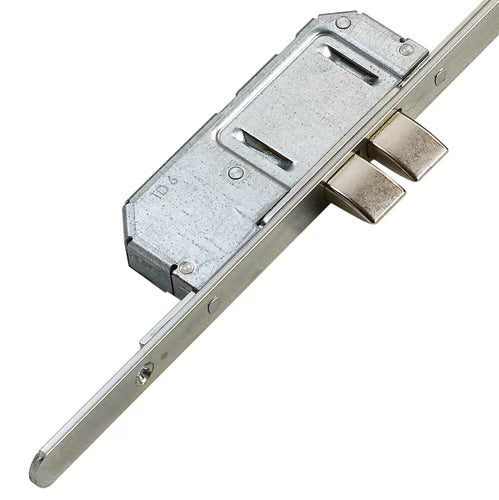

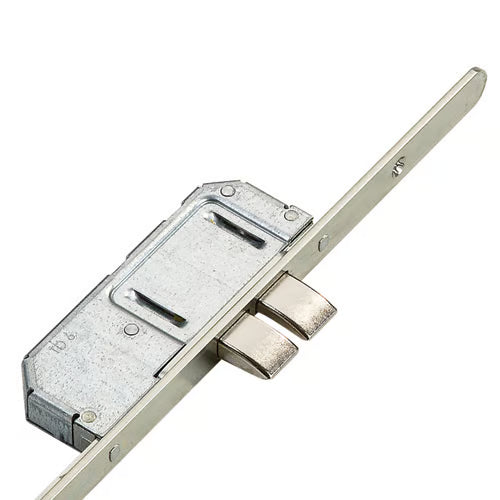

• Identifiable Markings: Easily recognize the Thunderbolt by checking the faceplate for the Winkhaus logo and the distinctive chamfered twin deadbolts.
• Compatibility: The Thunderbolt shares the same gearbox as the Cobra locks, ensuring seamless integration and replacement options.
• Enhanced Fitting Tolerances: Designed to assist door manufacturers, the Thunderbolt allows for up to 50% greater fitting tolerances, accommodating variations in airgap dimensions during installation.
• Standardized Routing Details: All Winkhaus locks maintain consistent routing details, simplifying the process of changing locking operations or upgrading to automatic locking.

Specifications:

• Manufacturer: Winkhaus
• Backset: Selectable (refer to measurement guide)
• Centres PZ: 92mm
• Faceplate: Selectable (refer to measurement guide)
• Spindle Size: 8mm
• Deadbolts: 5
• Latch: 1

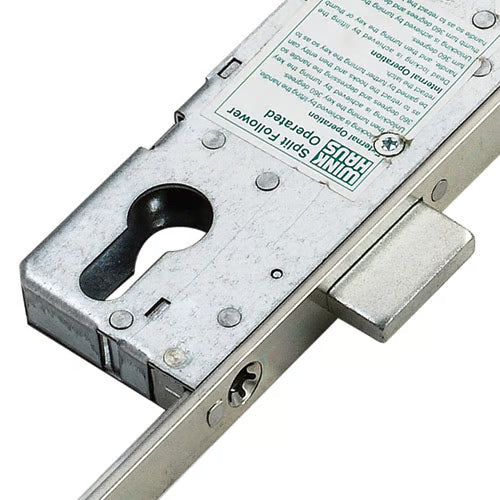

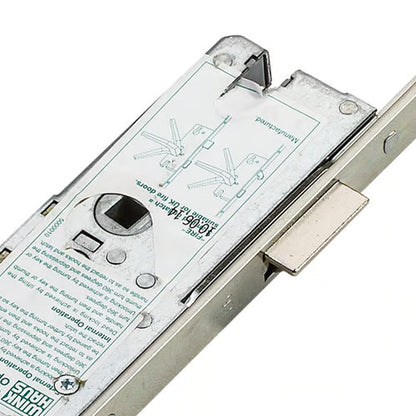

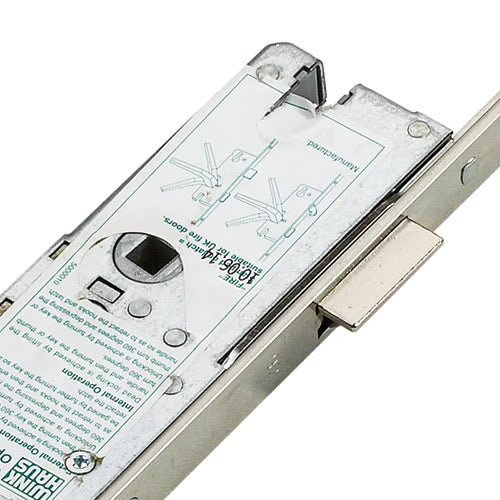

• Main Gearbox: Latch & deadbolt
• Operation: Selectable (refer to operation guide)
• Spindle: Split 8mm
• Handing: Right Hand
• Distance Between Inner Locking: 1490mm
• Height: 1770mm
• Top Deadbolt to Spindle: 720mm
• Bottom Deadbolt to Spindle: 770mm

Operation Instructions:

• To lock the door:
  • Lift the handle upwards to engage the locking points.
  • Turn the key to secure the locking points and main deadbolt.
• To unlock the door:
  • Turn the key to unlock the system.
  • Push the handle downwards to disengage the locking points and retract the latch.

Secured by Design: The Thunderbolt has been rigorously tested to withstand 100,000 cycles, ensuring long-lasting performance.

Associated Products: We offer a range of compatible products for the Winkhaus Thunderbolt, including keeps, spindles, handles, and accessories, making it easy to find everything you need for your installation.
