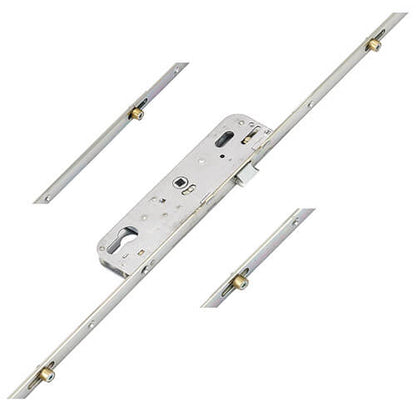

GU Ferco Standard Multipoint Door Lock is a reliable locking device for UPVC and aluminium doors. It is a unique device consisting of 4 rollers and 1 latch.
This lock is from the GU group of companies and is easily recognizable due to it's 70mm PZ centres. It has a latch-only system with no deadbolt in the central gearbox. It has been a popular option for many years, but despite contemporary security standards, there is a huge demand for replacements.
Specifications:

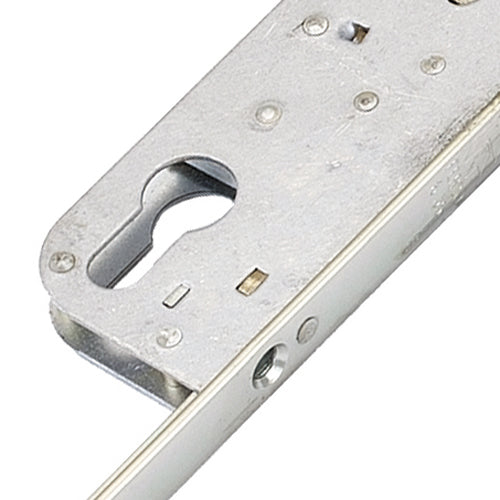

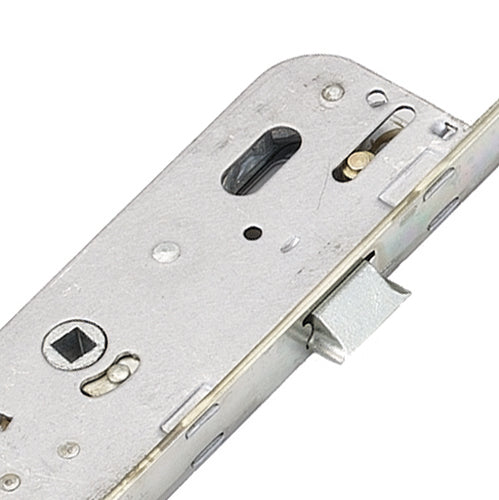

Unique Gearbox Construction: Ferco gearboxes are unique in the market with only a latch and a PZ of 70mm.
Solid Spindle This lock has a solid spindle and works with a standard lift lever function. Please note: the spindle size is 7mm, a little smaller than the standard 8mm so please check compatibility with your handles.

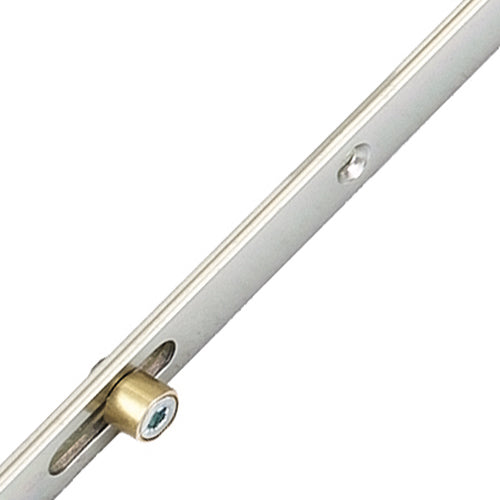

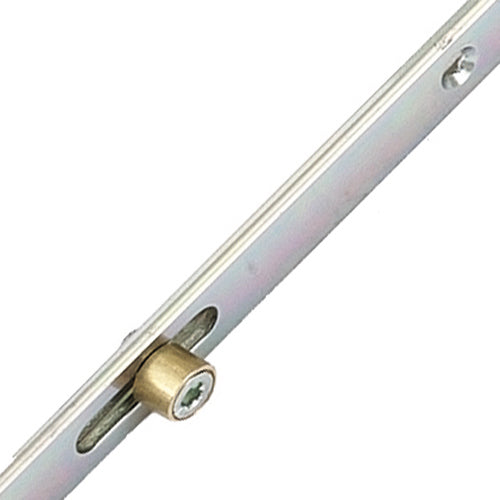

Roller Function The rollers push the door against the frame which helps with weather sealing and prevents warping. They are adjustable +/- 1mm for best performance.
INSTRUCTIONS Operate:
To Lock the Door:
Lift the handle up and secure it.
Turn the key to lock the locking points and the main deadbolt (if used).
To Open the Door:
Turn the key and unlock the system
To release the locking points, press the handle down and lift the latch back.
Key Product Features:
Brand: GU Ferco
Backset: Choose from drop-down options
PZ Centres: 70mm
Faceplate: Choose from drop down options
Spindle Size: 7mm
Rollers 4
Latch: 1.
Operation: Choose from drop-down menu
Spindle: One 7mm
Handed: Non-handed
Inner locking between distance: 446 mm
Distance between outer locking:1405mm
Height 2200 mm
Roller Top to Spindle: 720 mm
Bottom Roller to Spindle 685mm
Material of Door UPVC, Aluminum
We also carry a large selection of associated products for the GU Ferco Standard multipoint door locks such as keeps, spindles, handles and accessories so you have everything you need for installation or replacement.
