Latch 3 Hooks Multipoint Door Lock

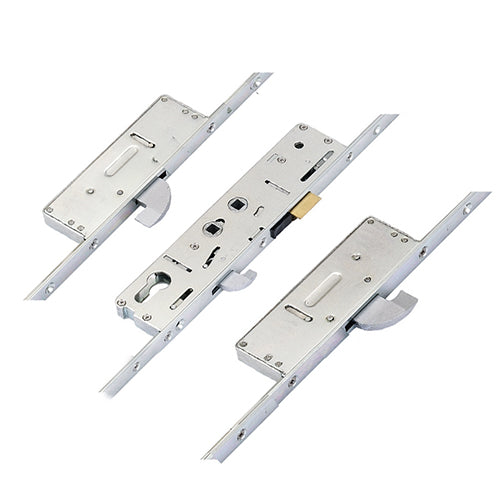

Product Overview: Kenrick Excalibur Multipoint Door Lock

The Kenrick Excalibur multipoint door lock is designed for enhanced security and ease of use, featuring 2 hooks and 1 latch. This lock is a reliable choice for homeowners seeking robust protection for their doors.

Identification Tips

Identifying a Kenrick Excalibur lock can be challenging due to similar models from other manufacturers. Here are some key features to look for:

• Brand Stamping: Check the faceplate for the Kenrick brand or the Secured By Design logo.
• Snib Location: Look for a small black snib below the latch. Note that other brands like ERA and Ingenious may also have similar snibs.
• Central Hook Mechanism: All Kenrick Excalibur locks feature a central hook that throws upward, distinguishing them from deadbolt locks.

For accurate identification, we recommend removing the lock from the door, especially if the brand is not visible.

Specifications

• Gearbox Options: Available in single or double spindle configurations.
• Centre Measurements: Gearboxes come with centres at either 92mm or 62mm and 92mm.
• Height: The overall height of the gearbox is 225mm, secured with 3 screw holes.
• Bolt Through Handle Fixings: A hole above the top spindle (21mm from the top) allows for handle fixings.
• Backset Measurement: When measuring backset, account for 2-3mm for the faceplate.

Security Features

Kenrick Excalibur hooks are crafted from sintered steel, providing additional resistance against attacks. The main gearbox features an upward-throwing hook, while outer hooks are bi-directional, enhancing door stability. Additionally, outer hooks include steel anti-lift bolts for increased security.

Operation Instructions

To Lock the Door:

1. Close the door to engage the latch automatically.
2. Lift the handle to engage the locking points.
3. Turn the key to lock the system.

To Unlock the Door:

1. Turn the key to unlock the system.
2. Push the handle down to disengage the locking points.
3. A quarter turn of the key will retract the latch.

Certifications and Testing

Kenrick Excalibur locks are recognized as an approved Secured by Design supplier, with some models compatible with PAS24 standards. They undergo rigorous testing, including:

• Cycle Testing: Tested to 100,000 cycles for durability.
• Salt Spray Testing: Exceeds BS EN 1670:2007 with a minimum of 240 hours of exposure.

For more information or assistance, please contact us. Your security is our priority!

Product Specification

• Manufacturer: Kenrick
• Spindle Size: 8mm
• Hooks: 2
• Latch: 1
• Main Gearbox: Latch & hookbolt
• Spindle: Double 8mm
• Handing: Non handed
• Distance Between Inner Locking: 1506mm
• Height: 1750mm
• Top Hook to Spindle: 737mm
• Bottom Hook to Spindle: 769mm
• Door Material: UPVC, Aluminium, Timber, Composite

For any further questions or assistance with your Kenrick Excalibur multipoint door lock, feel free to reach out! Your security is our priority!
