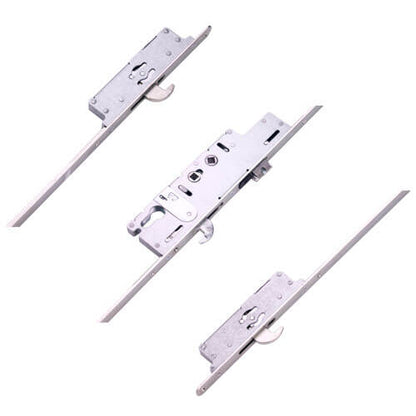

Latch 3 Hooks Double Spindle Multipoint Door Lock

Product Overview: Ingenious Professional Multipoint Door Lock

The Ingenious Professional multipoint door lock is engineered for security and convenience, featuring 3 hooks and 1 latch, making it an ideal choice for composite doors. With a robust 20mm faceplate, this lock ensures durability and reliability.

Gearbox Specifications

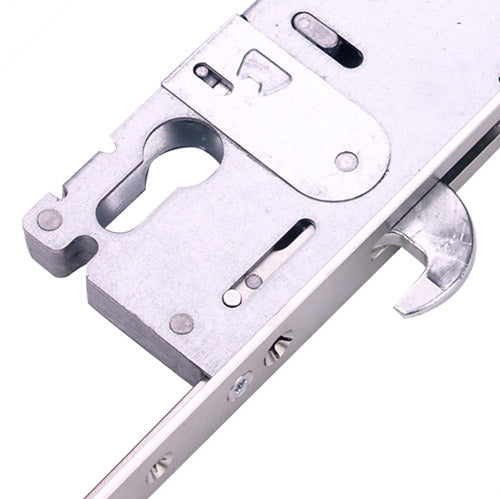

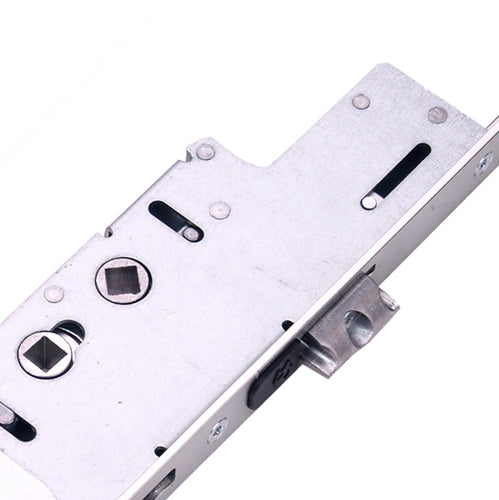

Ingenious gearboxes feature a unique double spindle arrangement with centers at 62mm and 92mm. Both followers are unsprung, so using sprung door furniture is advisable. The top corner of the gearbox has a distinctive cut-out.

• Overall Height: 230mm
• Screw Hole Measurements:
  • Top to Middle: 110mm
  • Middle to Bottom: 108mm

The hook and latch each measure 30mm in height, with a distance of 75mm between them. When measuring the backset, remember to account for an additional 2-3mm for the faceplate; thus, a 35mm backset gearbox will measure 32mm when not fixed to the strip.

Convenience Features

Ingenious multipoint door gearboxes include a small plastic snib on the faceplate, allowing you to hold the latch back for convenience and to prevent accidental lockouts.

Comparison with Fullex XL Series

While Ingenious gearboxes may resemble the Fullex XL series (also 230mm), you can confirm the model by comparing the hook boxes against reference images, as they have distinct features.

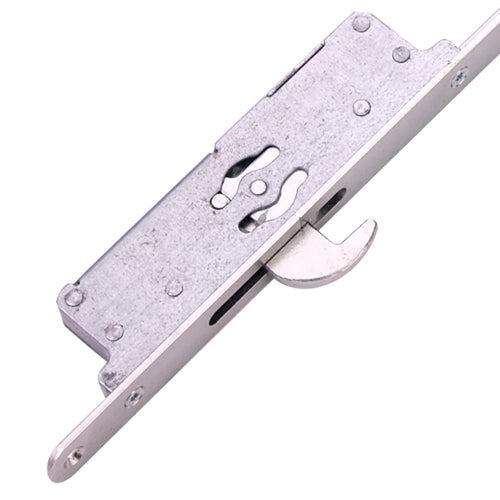

Hook Locking Arrangements

Ingenious locks come with different hook locking arrangements:

1. Standard Hook: Typically throws upwards, regardless of its position on the door.
2. Duplex Hook: Offers higher security with a pair of cast zinc hooks that throw towards each other, resembling crab claws. The Duplex locks have a larger hook case than standard hooks, so if you're upgrading and the routing on the door is tight, you may need to enlarge the hook box holes.

Operating Instructions

To Lock the Door:

1. Close the door to automatically engage the latch.
2. Lift the handle to engage the locking points.
3. Turn the key to lock the system.

To Unlock the Door:

1. Turn the key to unlock the system.
2. Push the handle down to disengage the locking points.
3. A further quarter turn of the key will retract the latch.

Product Specification

• Manufacturer: Ingenious
• Spindle Size: 8mm
• Hooks: 3
• Latch: 1
• Main Gearbox: Latch & hookbolt
• Spindle: Double 8mm
• Handing: Non handed
• Distance Between Inner Locking: 1420mm
• Height: 1614mm
• Top Hook to Spindle: 710mm
• Bottom Hook to Spindle: 710mm
• Door Material: Timber, Composite

Measuring Guidelines

To ensure accurate measurements for your Ingenious multipoint door lock, follow these guidelines:

Backset Measurement:

1. Measure from the edge of the door to the center of the keyhole.
2. This distance is your backset.

Centres PZ Measurement:

1. Measure the distance between the centers of the keyhole and the handle.
2. This will give you the PZ measurement (92mm/62mm).

Faceplate Measurement:

1. Measure the width and height of the existing faceplate.
2. Ensure to select the correct size from the drop-down options.

By following these steps, you can ensure that your lock installation is seamless and secure.
