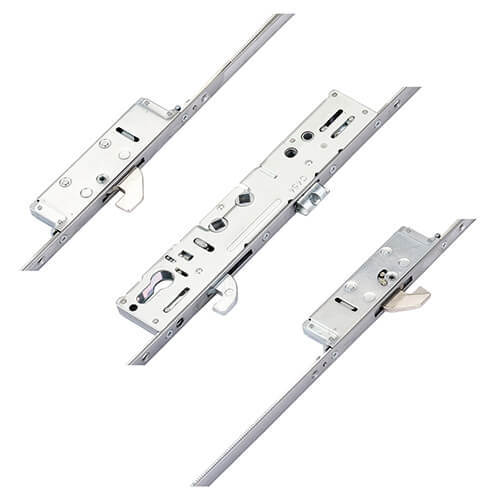

Latch 3 Hooks Double Spindle Multipoint Door Lock

Product Overview: Safeware Multipoint Door Lock

The Safeware multipoint door lock is designed for enhanced security and ease of use, featuring a robust configuration of 3 hooks and 1 latch. This lock is specifically engineered to fit a wide range of Epwin Window Systems doors, providing a reliable locking solution.

Key Features:

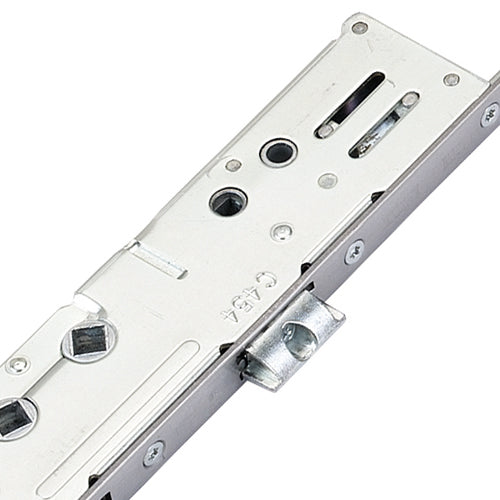

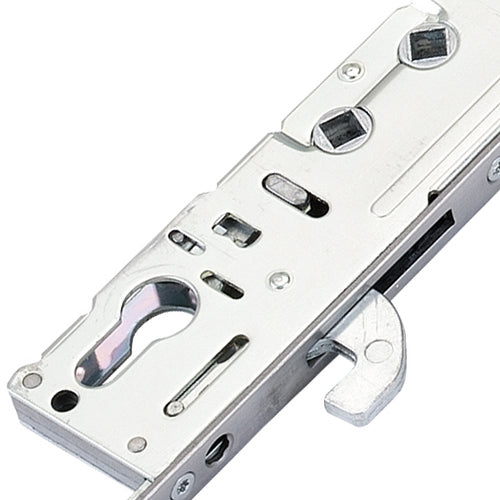

• Gearbox Design: The lock incorporates a gearbox with a hook, which is an extended version of the Lockmaster centre case. This unique design ensures compatibility and functionality across various door types.
• Versatile Locking Options: Safeware locks come in three distinct designs, offering hooks, rollers, and a combination of hook/deadbolt locking points to cater to different security needs.
• Dimensions: The Safeware gearboxes are the largest available on the market, measuring 255mm in height and 50mm in width. The latch and hook each measure 30mm high, with an 80mm distance between the bottom of the latch and the top of the hook.
• Secure Fixing: Due to the length of the gearboxes, they are secured to their faceplates with four screws, positioned at specific intervals (55mm, 80mm, and 108mm) for added stability.

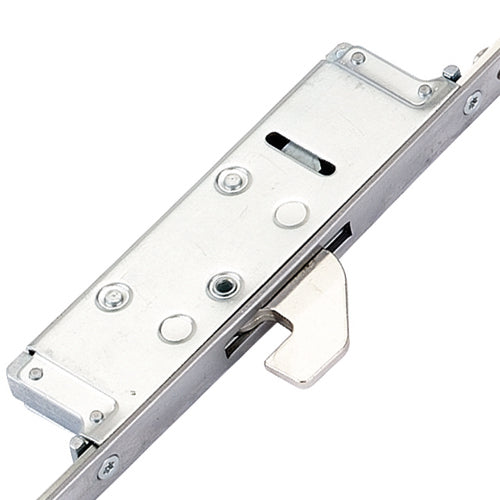

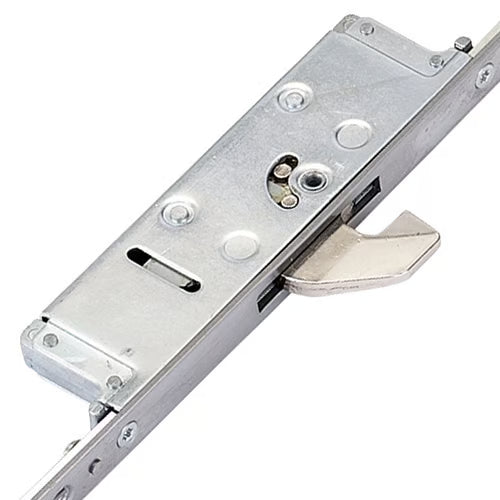

• Bi-Directional Hooks: The hooks are designed to move towards each other when thrown, providing an additional layer of security.

Operation Instructions:

To Lock the Door:

1. Close the door to automatically engage the latch.
2. Lift the handle to engage the locking points.
3. Turn the key to secure the system.

To Unlock the Door:

1. Turn the key to unlock the system.
2. Push the handle down to disengage the locking points.
3. A quarter turn of the key will retract the latch for easy access.

This Safeware multipoint door lock combines advanced security features with user-friendly operation, making it an ideal choice for homeowners seeking peace of mind.

Product Specification

• Manufacturer: Safeware
• Spindle Size: 8mm
• Hooks: 3
• Latch: 1
• Main Gearbox: Latch & hookbolt
• Spindle: Double 8mm
• Handing: Non handed
• Distance Between Inner Locking: 1290mm
• Height: 2096mm
• Top Hook to Spindle: 645mm
• Bottom Hook to Spindle: 645mm
• Door Material: UPVC, Aluminium, Timber, Composite

Measuring Guidelines:

To ensure accurate measurements for your Safeware multipoint door lock, follow these guidelines:

Backset Measurement:
To measure the backset, take a tape measure and measure the distance from the edge of the door to the center of the lock cylinder. This measurement is crucial for ensuring the lock fits properly.

Centres PZ Measurement:
For the Centres PZ, measure the distance between the center of the keyhole and the center of the handle hole. This will help you select the correct locking mechanism for your door.

Faceplate Measurement:
To measure the faceplate, you need to measure the width and height of the area where the faceplate will be installed. This ensures a snug fit and optimal security.

By following these measurement instructions, you can confidently select the right specifications for your Safeware multipoint door lock.
