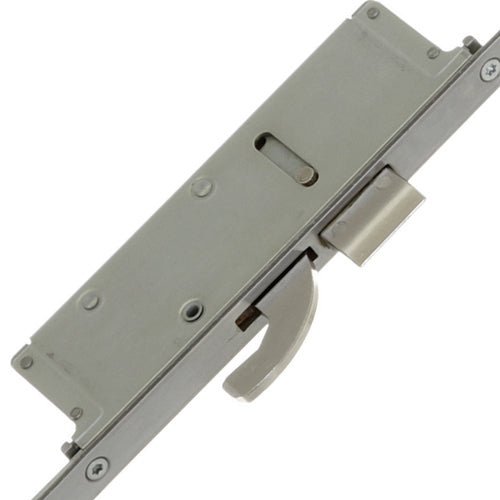

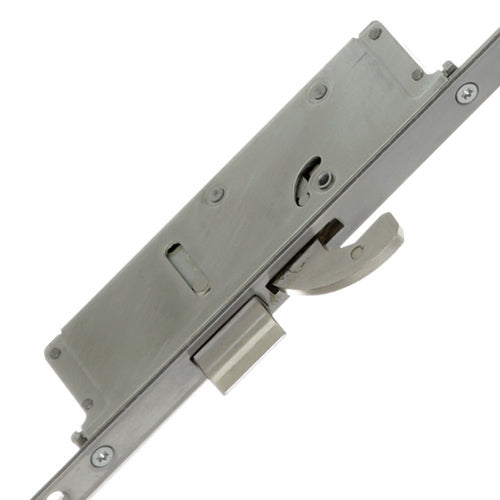

Latch 3 Hooks 2 Deadbolts Double Spindle Multipoint Door Lock

Product Overview: Safeware Multipoint Door Lock

The Safeware multipoint door lock is designed for enhanced security and ease of use, featuring a robust configuration of 3 hooks, 2 deadbolts, and 1 latch. This lock is ideal for a variety of applications, particularly with Epwin Window Systems doors.

Key Features:

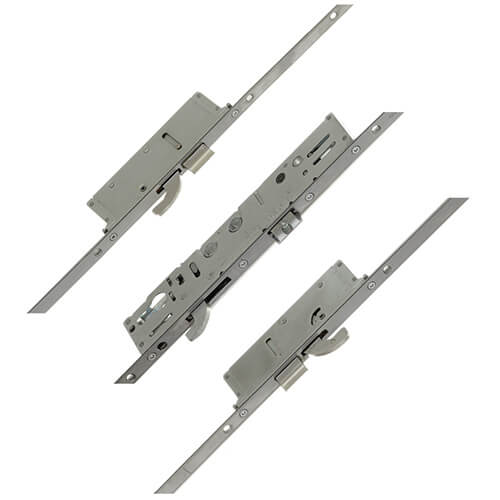

• Unique Design: While based on the Lockmaster product line, Safeware locks incorporate a distinctive design that sets them apart, ensuring both functionality and aesthetic appeal.
• Versatile Locking Mechanisms: Available in three designs, Safeware locks offer options with hooks, rollers, and a combination of hook/deadbolt locking points to suit different security needs.

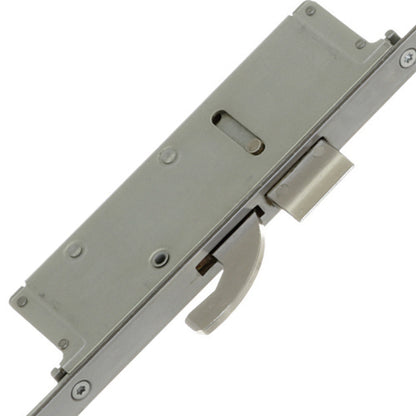

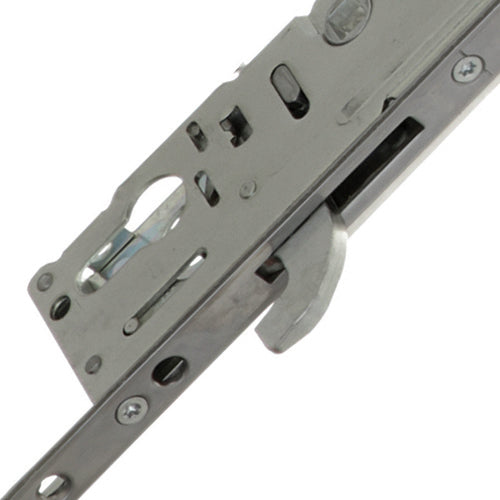

• Gearbox Specifications: The Safeware gearbox is visually similar to the Lockmaster range but features a longer case. It operates with a central hook that throws downwards and is available in double spindle operation only, with PZ measurements of 92mm and 62mm.

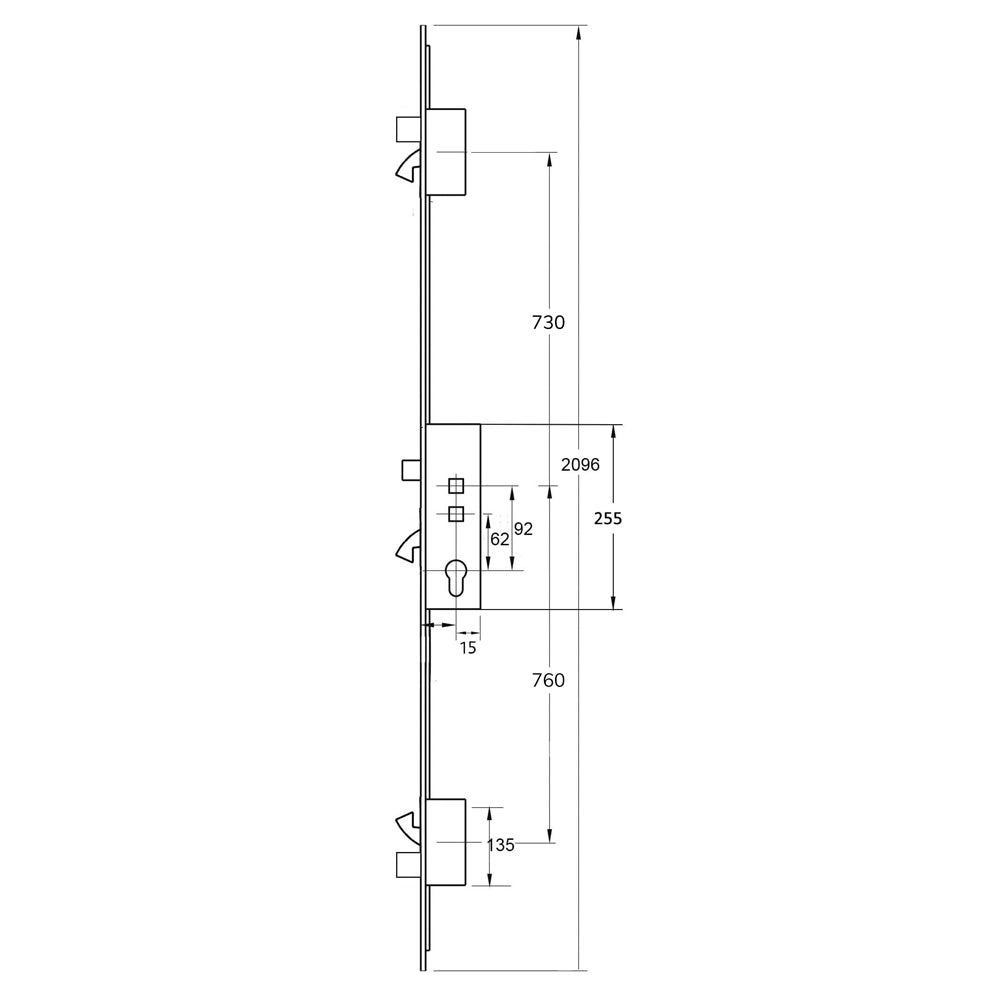

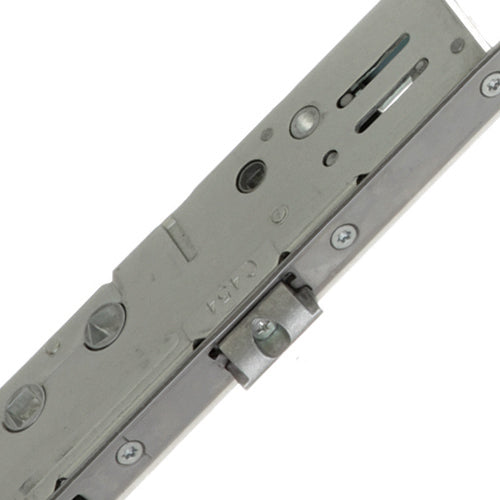

• Dimensions: The gearboxes are the largest on the market, measuring 255mm high and 50mm wide. The latch and hook each measure 30mm high, with an 80mm distance between the bottom of the latch and the top of the hook.
• Secure Fixing: Due to their length, these gearboxes are secured to their faceplates with four screws, positioned at 55mm, 80mm, and 108mm intervals.
• Bi-Directional Hooks: The Safeware hooks are designed to move towards each other when thrown, providing an additional layer of security.

Operation Instructions:

To Lock the Door:

1. Close the door to automatically engage the latch.
2. Lift the handle to engage the locking points.
3. Turn the key to lock the system.

To Unlock the Door:

1. Turn the key to unlock the system.
2. Push the handle down to disengage the locking points.
3. A quarter turn of the key will retract the latch.

This multipoint door lock combines advanced security features with user-friendly operation, making it an excellent choice for safeguarding your property.

Product Specification

• Manufacturer: Safeware
• Spindle Size: 8mm
• Hooks: 3
• Deadbolts: 2
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Spindle: Double 8mm
• Handing: Non handed
• Distance Between Inner Locking: 1300mm
• Distance Between Outer Locking: 1380mm
• Height: 2096mm
• Top Hook to Spindle: 650mm
• Bottom Hook to Spindle: 650mm
• Door Material: UPVC, Aluminium, Timber, Composite

For precise measurements, follow these guidelines:

Measuring the Backset:
To measure the backset, take a tape measure and measure the distance from the edge of the door to the center of the lock cylinder. This will give you the backset measurement needed for proper installation.

Measuring the Centres (PZ):
To measure the centres, measure the distance between the center of the keyhole and the center of the handle hole. This is crucial for ensuring that the lock aligns correctly with the door hardware.

Measuring the Faceplate:
To measure the faceplate, measure the width and height of the area where the faceplate will be installed. Ensure to account for any existing cutouts or recesses in the door.

These specifications ensure that the Safeware multipoint door lock fits perfectly and operates smoothly, providing optimal security for your property.
