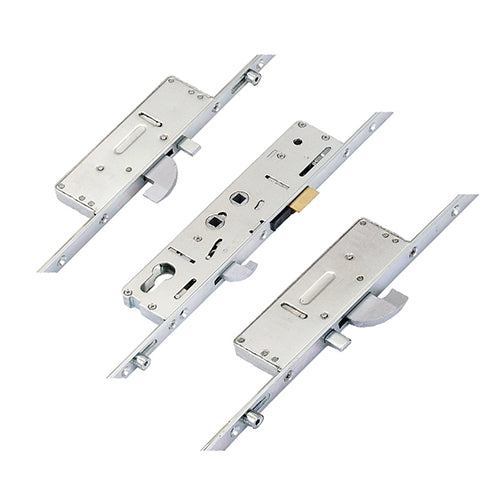

Latch 3 Hooks 2 Anti Lift Pins 3 Rollers Multipoint Door Lock - Option 2 (top hook to spindle = 615mm)

Product Overview: Kenrick Excalibur Multipoint Door Lock

The Kenrick Excalibur multipoint door lock is engineered for security and durability, featuring a robust design that includes:

• 3 Rollers
• 2 Hooks
• 1 Latch
• 2 Anti Lift Bolts

Installation and Measurements

For accurate identification, it’s advisable to remove the lock from the door. Kenrick Excalibur gearboxes come in single or double spindle configurations, with centers measuring either 92mm or 62mm. The overall height of the gearbox is 225mm, secured with three screw holes.

Features and Security

The Kenrick Excalibur gearboxes include a small plastic snib for convenience, allowing the latch to be held back and preventing accidental lockouts. The hooks are crafted from sintered steel, enhancing resistance against forced entry.

Operation Instructions

To lock the door:

1. Close the door to engage the latch automatically.
2. Lift the handle to engage the locking points.
3. Turn the key to secure the system.

To unlock the door:

1. Turn the key to unlock the system.
2. Push the handle down to disengage the locking points.
3. A quarter turn of the key will retract the latch.

Compliance and Testing

Kenrick Excalibur locks are recognized as an approved Secured by Design supplier, with some models compatible with PAS24 standards. They undergo rigorous testing, including 100,000 operational cycles and a minimum of 240 hours of salt spray testing, surpassing BS EN 1670:2007 standards.

For further information or assistance, please contact us.

Product Specification

• Manufacturer: Kenrick
• Spindle Size: 8mm
• Main Gearbox: Latch & hookbolt
• Spindle: Double 8mm
• Handing: Non handed
• Distance Between Inner Locking: 1195mm
• Distance Between Outer Locking: 1370mm
• Height: 2300mm
• Top Hook to Spindle: 615mm
• Bottom Hook to Spindle: 580mm
• Top Roller to Spindle: 700mm
• Bottom Roller to Spindle: 670mm
• Door Material: UPVC, Aluminium

Measuring Guidelines

To ensure accurate measurements for your Kenrick Excalibur multipoint door lock, follow these guidelines:

Backset Measurement : To measure the backset, take a tape measure and measure the distance from the edge of the door to the center of the lock cylinder. This distance is crucial for ensuring a proper fit.

Centres PZ Measurement: For measuring the centres, determine the distance between the center of the keyhole and the center of the handle. This will help you select the correct PZ measurement for your lock.

Faceplate Measurement: To measure the faceplate, measure the width and height of the existing faceplate on your door. This will ensure that the new lock fits seamlessly into the door frame.

By following these steps, you can confidently select the right specifications for your Kenrick Excalibur multipoint door lock, ensuring optimal security and functionality.
