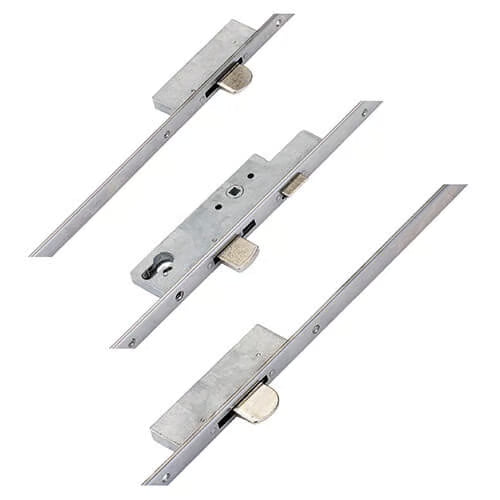

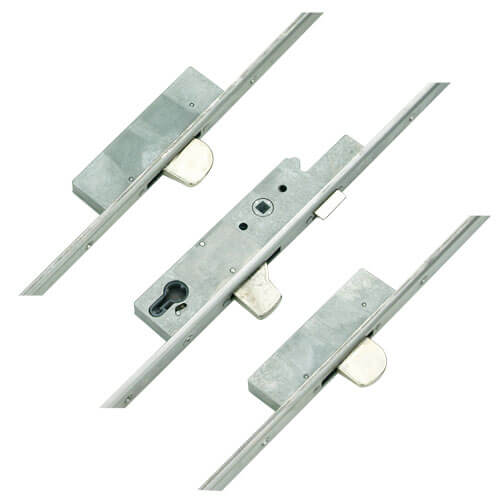

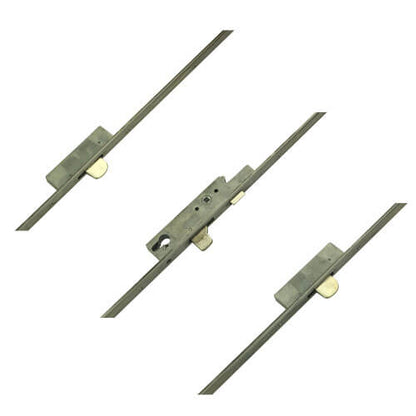

Latch 3 Drop Bolts Key Wind Operated Multipoint Door Lock - U-Rail 22mm Faceplate

Sobinco Multipoint Door Lock

The Sobinco multipoint door lock is engineered for security and reliability, featuring 3 deadbolts and 1 latch. Crafted in Belgium, these high-quality locks are predominantly used on aluminium doors, ensuring durability and performance.

Unique Design Features

Identifying a Sobinco lock is straightforward due to its distinctive "drop bolt" mechanism. While referred to as deadbolts for convenience, these locks combine a hook and deadbolt that engage as the lock is activated. Sobinco locks are often found branded under names like Raynaers and Aliplast, but they maintain the same robust design.

Locking Positions and Configuration

All Sobinco locks share consistent locking positions, with a top drop bolt located at 720mm and a bottom drop bolt at 760mm from the spindle. This adheres to the widely recognized 1490mm locking centres configuration, making it compatible with various door types.

Faceplate Variations

The primary distinction among Sobinco models lies in the faceplate options, which include:

• 16mm
• Flat 20mm (square edges)
• Flat 24mm (square edges)
• U-shaped 22mm x 6.5mm
• U-shaped 24mm in two sizes: 24mm x 5mm and 24mm x 6.5mm

Gearbox Specifications

Sobinco gearboxes come in backsets of 30mm, 35mm, and 40mm, with the narrower styles ideal for aluminium doors. All gearboxes feature a single spindle with key wind operation, measuring 210mm in height plus the backset, with a latch height of 11mm and a throw of 9.5mm.

Operation Instructions

To Lock the Door:

1. Close the door to automatically engage the latch.
2. Turn the key to throw and engage the locking points.

To Unlock the Door:

1. Turn the key to unlock by "unwinding" the locking points.
2. A further quarter turn retracts the latch.

Additional Products

We offer a comprehensive range of associated products for Sobinco multipoint door locks, including keeps, spindles, handles, and accessories. This lock is versatile enough to be used in UPVC, aluminium, timber, or composite doors, making it a reliable choice for various applications.

Product Specification

• Manufacturer: Sobinco
• Spindle Size: 8mm
• Deadbolts: 3
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Spindle: Single 8mm
• Handing: Non handed
• Distance Between Inner Locking: 1490mm
• Height: 2170mm
• Top Deadbolt to Spindle: 720mm
• Bottom Deadbolt to Spindle: 760mm

Measuring Guidelines

To ensure accurate measurements for your Sobinco multipoint door lock, follow these guidelines:

• Backset Measurement:
  • Measure from the edge of the door to the center of the keyhole.
  • This distance is your backset.
• Centres PZ Measurement:
  • Measure from the center of the keyhole to the center of the handle hole.
  • This measurement will give you the PZ centres.
• Faceplate Measurement:
  • Measure the width and height of the existing faceplate.
  • Ensure to note any specific shapes or profiles that may affect compatibility.

By following these steps, you can ensure that your Sobinco lock installation is seamless and secure.
