Latch 3 Deadbolts Split Spindle Multipoint Door Lock - Option 2 (top deadbolt to spindle = 680mm)

Product Overview: ERA Deadbolt Multipoint Door Lock

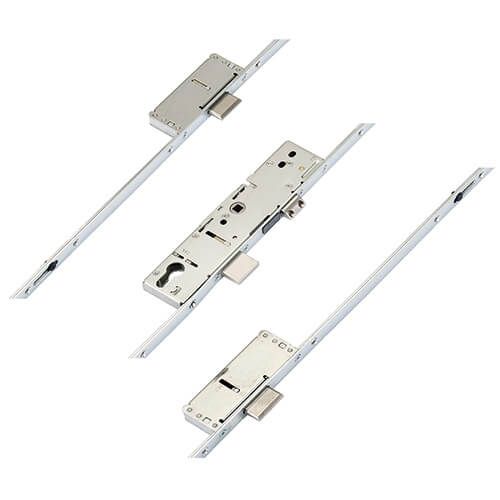

The ERA Deadbolt multipoint door lock is engineered for security and reliability, featuring 3 deadbolts and 1 latch. This lock is a popular choice in the UK, known for its robust design and ease of identification.

Key Features:

• Versatile Branding: ERA manufactures locks for various door and window companies, often leading to rebranding. Look for the ERA logo on the faceplate, but be aware that it may also display other brand names like Surelock, Saracen, and more.
• Distinctive Holdback Snib: The holdback snib color can help identify the lock. Typically, it’s grey for deadbolt and hook bolt locks, and blue for Vectis locks. Note that some brands may have altered the snib color.
• Split Spindle Mechanism: Most ERA multipoint locks utilize a split spindle mechanism, simplifying replacements by focusing on one locking function. Exceptions include SureFire locks and specific automatic locking models.

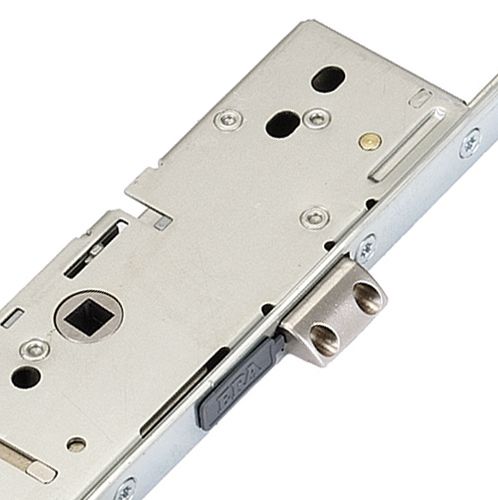

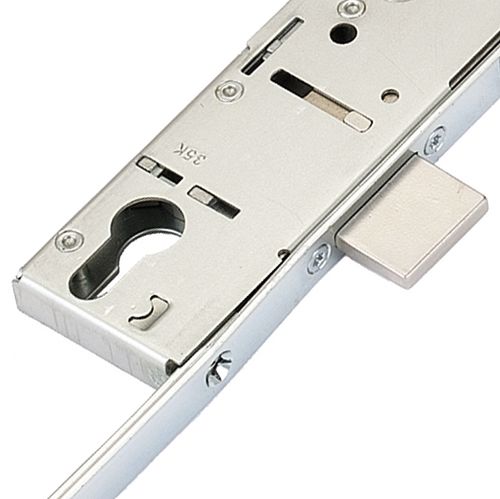

• Gearbox Design: ERA gearboxes are uniquely square with no corner cutouts, measuring 221mm in length. They come in 30mm, 35mm, or 45mm backsets, maintaining consistent dimensions across models.
• Interchangeable Gearboxes: With the exception of the British Standard Fortress lock and SureFire models, ERA gearboxes can be interchanged. Custom orders are available for specific locking needs.

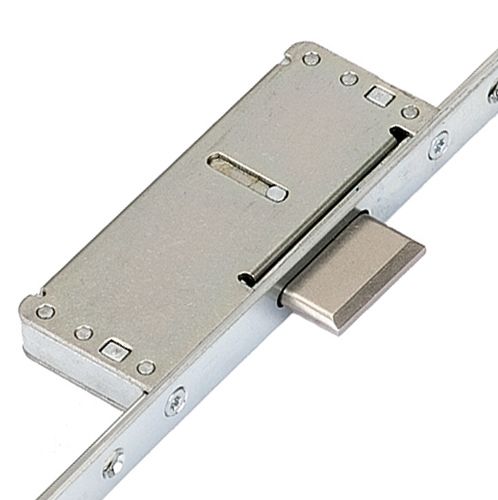

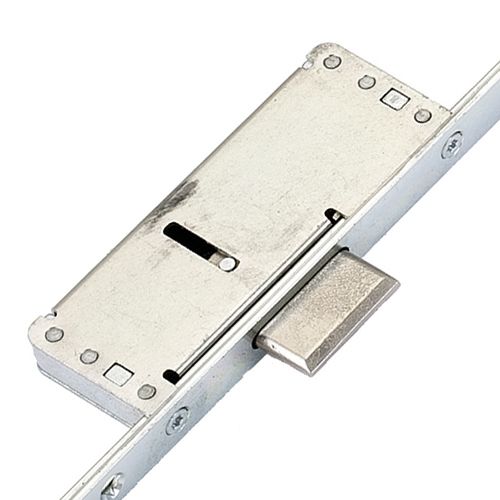

• Durable Construction: The deadbolts, referred to as linear bolts, feature an 18mm throw and are designed to pull the door tightly against the frame.

Operation Instructions:

To lock the door:

1. Lift the handle upwards to engage the locking points.
2. Turn the key to secure the locking points and main deadbolt.

To unlock the door:

1. Turn the key to unlock the system.
2. Push the handle downwards to disengage the locking points and retract the latch.

Compliance and Testing:

• Meets BS EN 1670:2007 Grade 4 Corrosion Resistance (240 hours).
• Endurance tested to 50,000 cycles.
• Designed to comply with PAS24:2012 standards for enhanced security.

This ERA multipoint door lock is an excellent choice for those seeking a reliable and secure locking solution for timber and composite doors.

Product Specification

• Manufacturer: ERA
• Spindle Size: 8mm
• Deadbolts: 3
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Spindle: Split 8mm
• Handing: Non handed
• Distance Between Inner Locking: 1380mm
• Height: 2250mm
• Top Deadbolt to Spindle: 680mm
• Bottom Deadbolt to Spindle: 700mm
• Door Material: UPVC, Aluminium, Timber, Composite

Measuring Guidelines:

To ensure accurate measurements for your ERA Deadbolt multipoint door lock, follow these guidelines:

Backset Measurement:
Measure from the edge of the door to the center of the keyhole. This distance is crucial for selecting the correct backset.

Centres PZ Measurement:
The PZ measurement is the distance from the center of the keyhole to the center of the handle. Use a ruler or tape measure for precision.

Faceplate Measurement:
To measure the faceplate, determine the width and height of the existing faceplate on your door. This will help you select the appropriate option from the drop-down menu.

By following these steps, you can ensure that your lock installation is seamless and secure.
