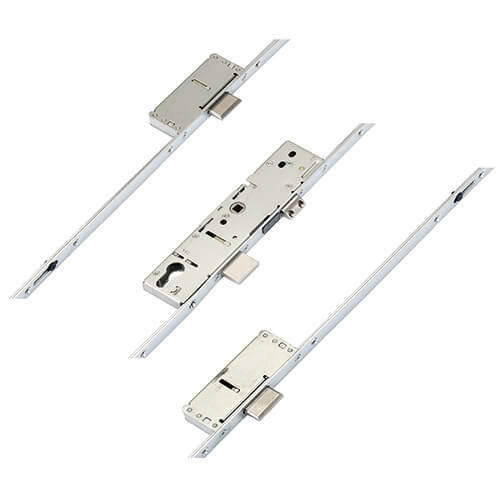

Latch 3 Deadbolts Split Spindle Multipoint Door Lock - Option 1 (top deadbolt to spindle = 570mm)

Product Overview: ERA Deadbolt Multipoint Door Lock

The ERA Deadbolt multipoint door lock is engineered for security and reliability, featuring 3 deadbolts and 1 latch. This lock is a popular choice in the UK, known for its robust design and ease of identification.

Key Features:

• Versatile Branding: ERA manufactures locks for various door and window companies, often rebranded under names like Surelock, Saracen, and more. Look for the ERA logo on the faceplate, although some brands may use different colors for the holdback snib.
• Identification Tips: The holdback snib is typically grey for deadbolt and hook bolt locks, and blue for Vectis locks. Be aware that some brands may have altered the snib color to black or green.
• Split Spindle Mechanism: Most ERA multipoint locks utilize a split spindle mechanism, simplifying replacements by focusing on one locking function. Note that this does not apply to SureFire locks or specific automatic locking models.

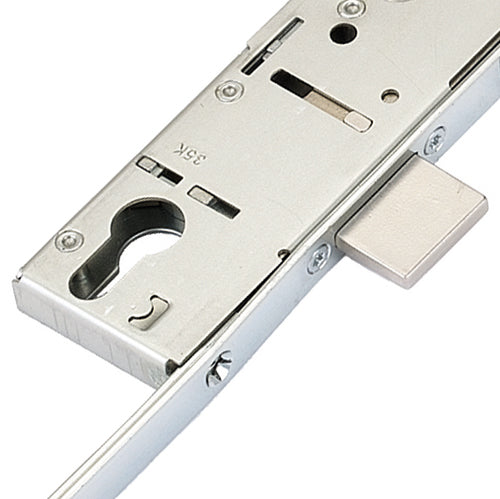

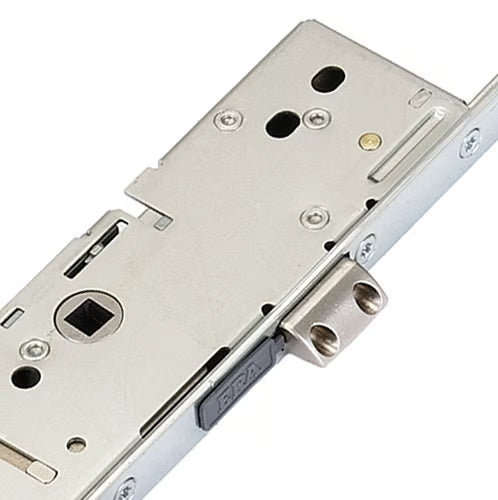

• Distinctive Gearbox Design: ERA gearboxes are square with no corner cutouts, measuring 221mm in length. They come in 30mm, 35mm, or 45mm backsets, maintaining consistent dimensions across models.
• Interchangeability: With the exception of the British Standard Fortress lock and SureFire models, ERA gearboxes can be interchanged. If your client requires a different locking mechanism, contact us for custom solutions.

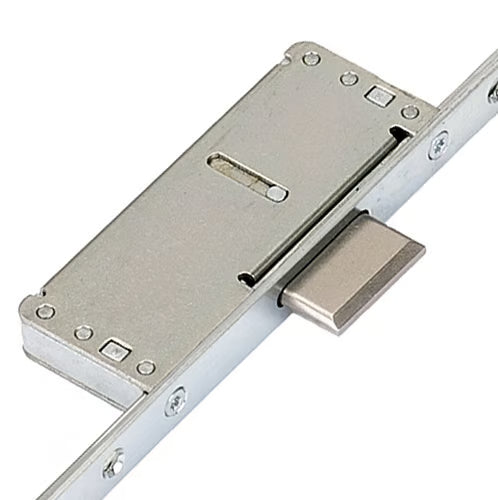

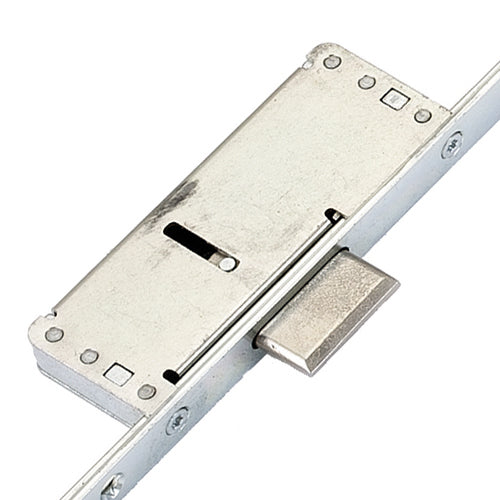

• Durable Construction: The deadbolts, referred to as linear bolts, feature an 18mm throw and are designed to pull the door tightly against the frame.

Operation Instructions:

To lock the door:

1. Lift the handle upwards to engage the locking points.
2. Turn the key to secure the locking points and main deadbolt.

To unlock the door:

1. Turn the key to unlock the system.
2. Push the handle downwards to disengage the locking points and retract the latch.

Compliance and Testing:

• Meets BS EN 1670:2007 Grade 4 Corrosion Resistance (240 hours).
• Endurance tested for 50,000 cycles.
• Designed to comply with PAS24:2012 standards for enhanced security.

Product Specification

• Manufacturer: ERA
• Spindle Size: 8mm
• Deadbolts: 3
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Spindle: Split 8mm
• Handing: Non handed
• Distance Between Inner Locking: 1232mm
• Height: 2250mm
• Top Deadbolt to Spindle: 570mm
• Bottom Deadbolt to Spindle: 662mm
• Door Material: UPVC, Aluminium, Timber, Composite

Measuring Guidelines:

To ensure accurate measurements for your ERA Deadbolt multipoint door lock, follow these guidelines:

Backset Measurement:
Measure from the edge of the door to the center of the keyhole. This distance is crucial for selecting the correct backset.

Centres PZ Measurement:
The PZ measurement is the distance from the center of the keyhole to the center of the handle hole. Use a ruler or tape measure for precision.

Faceplate Measurement:
To measure the faceplate, determine its width and length. This will help you select the appropriate faceplate from the drop-down options.

Operation Selection:
Choose the operation type based on how you intend to use the lock. Options may include key operation, handle operation, or automatic locking.

By following these measuring tips, you can ensure a perfect fit for your door lock installation.
