Latch 3 Deadbolts Lift Lever or Double Spindle Multipoint Door Lock - Option 2 (top deadbolt to spindle = 704mm)

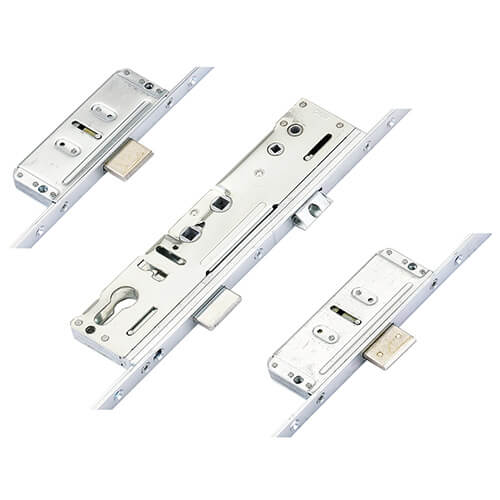

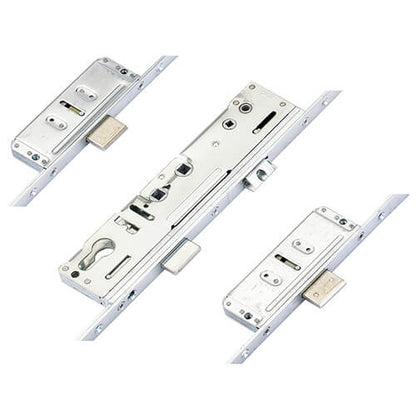

Product Overview: Lockmaster Standard Multipoint Door Lock

The Lockmaster Standard multipoint door lock is designed for enhanced security, featuring 3 deadbolts and 1 latch. This lock is part of the renowned Lockmaster range, known for its variety of locking mechanisms that can be tailored to meet specific requirements.

Key Features:

• Versatile Locking Options: The Lockmaster range includes multiple variants with locking points positioned differently, allowing for customization based on existing door setups.

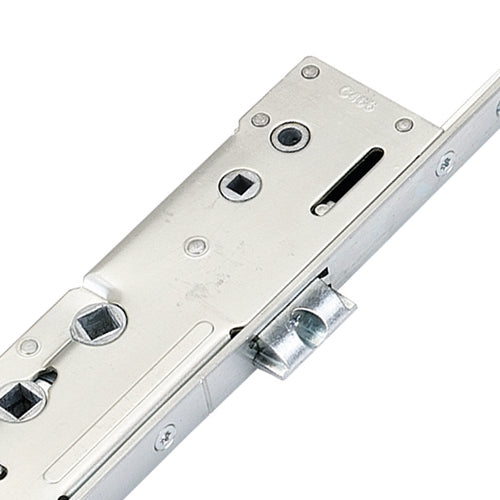

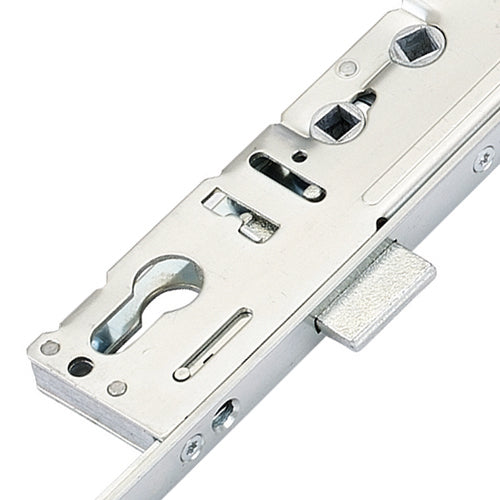

• Easy Identification: Once removed from the door, Lockmaster locks can be easily identified by their unique features, such as the upwards throwing mechanism and a large gearbox measuring 228mm.
• Best Seller in the UK: Lockmaster locks are the leading choice for multipoint door security in the UK, now part of the Yale family, which includes brands like Millenco and Milamaster.
• Adaptability: Older versions may have different locking point locations, necessitating minor adjustments to the door routing (40-50mm) for proper installation.

Specifications:

• Gearbox Options: Available in 35mm or 45mm backsets, with double or single spindle mechanisms. Bifold door versions come in 25mm and 28mm backsets.
• Double Spindle Features: These locks have 62mm and 92mm centers and are unsprung, making them ideal for use with sprung door handles. They can function as lift lever or double spindle nightlatch.
• Single Spindle Features: Sprung and designed for lift lever function only.

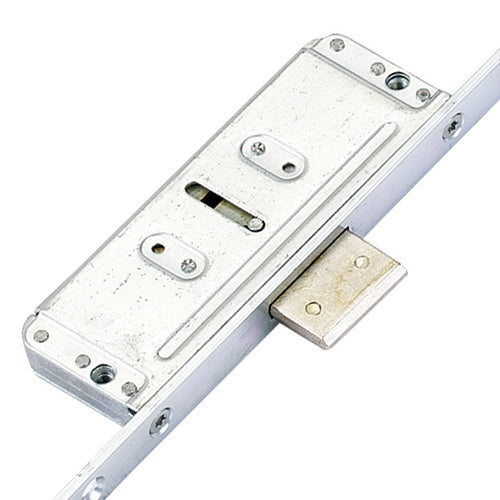

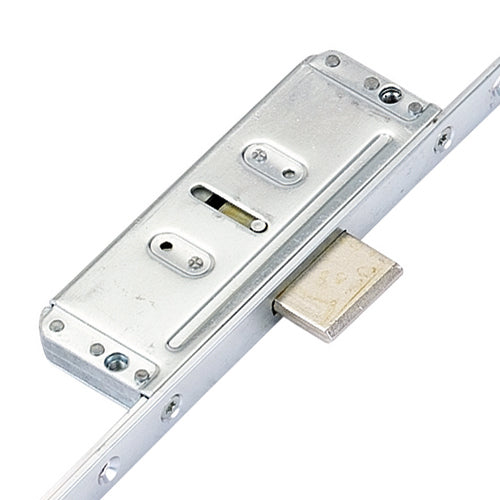

• Dimensions: Gearboxes measure 228mm high plus backset +15mm. The latch and deadbolt both measure 30mm high, with a 65mm gap between them.
• Screw Hole Measurements: Gearboxes are fitted with faceplates that have 3 screw holes, with the top to middle and middle to bottom holes both measuring 109mm apart.
• Corrosion Resistance: Tested to BS EN 1670:2007 Grade 4 (240hrs. NSST), ensuring durability and longevity.

Operation Instructions:

To Lock the Door:

1. Close the door to automatically engage the latch.
2. Lift the handle to engage the locking points.
3. Turn the key to secure the system.

To Unlock the Door:

1. Turn the key to unlock the system.
2. Push the handle down to disengage the locking points.
3. A quarter turn of the key will retract the latch.

This Lockmaster Standard multipoint door lock combines security, adaptability, and ease of use, making it an excellent choice for any entryway.

Product Specification

• Manufacturer: Lockmaster
• Spindle Size: 8mm
• Deadbolts: 3
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Spindle: Double 8mm
• Handing: Non handed
• Distance Between Inner Locking: 1436mm
• Height: 1790mm
• Top Deadbolt to Spindle: 704mm
• Bottom Deadbolt to Spindle: 732mm
• Door Material: UPVC, Aluminium, Timber, Composite

Measuring Guidelines:

To ensure a perfect fit for your Lockmaster Standard multipoint door lock, follow these simple measuring guidelines:

1. Backset Measurement:
   1. Measure from the edge of the door to the center of the keyhole.
   2. This distance is your backset measurement.
2. Centres PZ Measurement:
   1. Measure the distance between the center of the keyhole and the center of the handle.
   2. This will give you the PZ measurement, which is crucial for compatibility.
3. Faceplate Measurement:
   1. Remove the existing lock and measure the width and height of the faceplate.
   2. Ensure to note any specific shapes or cutouts that may affect installation.

By following these guidelines, you can confidently select the right specifications for your Lockmaster door lock, ensuring optimal security and functionality for your entryway.
