Latch 3 Deadbolts Lift Lever or Double Spindle Multipoint Door Lock - Option 1 (top deadbolt to spindle = 718mm)

Product Overview: Lockmaster Standard Multipoint Door Lock

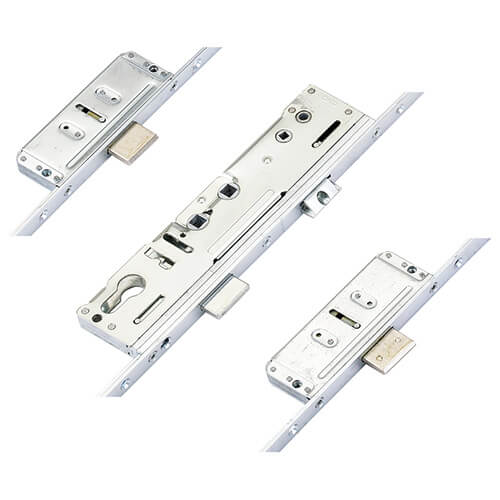

The Lockmaster Standard multipoint door lock is designed for enhanced security, featuring 3 deadbolts and 1 latch. This lock is part of the renowned Lockmaster range, known for its variety of locking mechanisms tailored to meet diverse needs.

Key Features:

• Versatile Options: The Lockmaster range includes numerous variants, allowing for adaptations to existing door requirements. We stock the most popular versions and can source specific products as needed.
• Easy Identification: Once removed from the door, Lockmaster locks are identifiable by their unique features, such as upwards throwing locks and a large 228mm gearbox.
• Best Seller: Lockmaster locks are the UK's top-selling multipoint door locks, now part of the Yale family, which includes brands like Millenco and Millenco Mantis.
• Compatibility Note: Be aware that older Lockmaster versions may have different locking point locations, potentially requiring door routing adjustments of 40-50mm.

Specifications:

• Gearbox Options: Available in 35mm or 45mm backsets, with double or single spindle mechanisms. Bifold door versions come in 25mm and 28mm backsets.
• Locking Mechanism: Double spindle locks feature 62mm and 92mm centers and are unsprung, while single spindles are sprung and limited to lift lever functions.

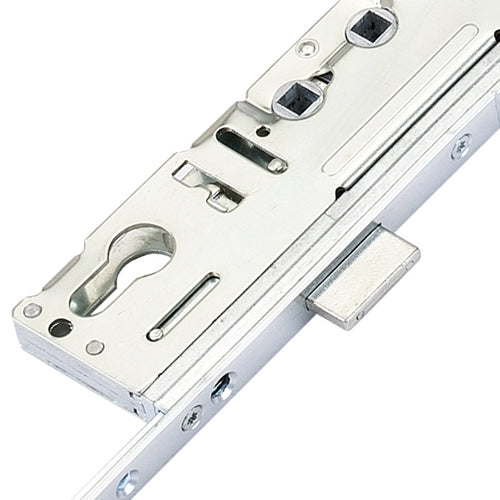

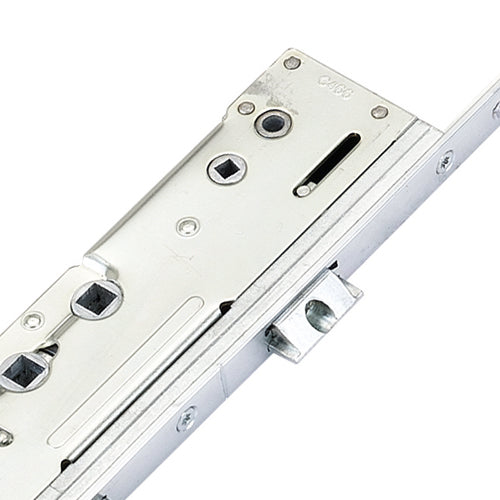

• Dimensions: Gearboxes measure 228mm high plus backset +15mm. The latch and deadbolt each measure 30mm high, with a 65mm gap between them.
• Screw Hole Measurements: Gearboxes are fitted with faceplates that have 3 screw holes, with the top to middle and middle to bottom holes each measuring 109mm.
• Corrosion Resistance: Tested to BS EN 1670:2007 Grade 4 (240hrs. NSST), ensuring durability and reliability.

Operation Instructions:

To Lock the Door:

1. Close the door to automatically engage the latch.
2. Lift the handle to engage the locking points.
3. Turn the key to secure the system.

To Unlock the Door:

1. Turn the key to unlock the system.
2. Push the handle down to disengage the locking points.
3. A quarter turn of the key will retract the latch.

This Lockmaster Standard multipoint door lock combines security, versatility, and ease of use, making it an excellent choice for any property.

Product Specification

• Manufacturer: Lockmaster
• Spindle Size: 8mm

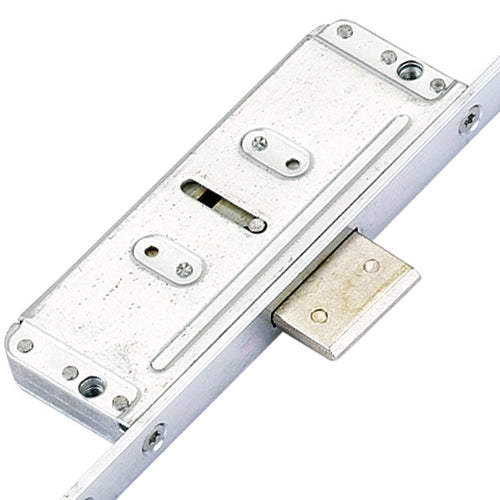

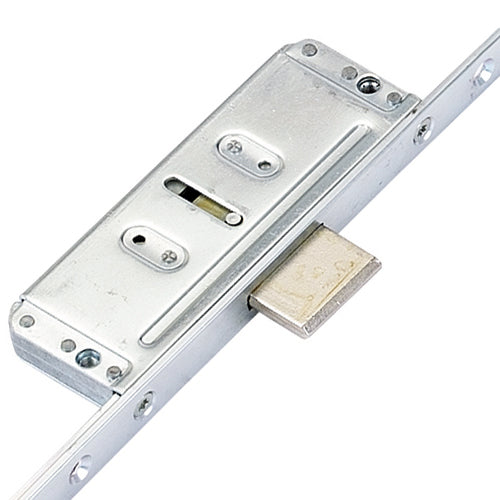

• Deadbolts: 3
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Spindle: Double 8mm
• Handing: Non handed
• Distance Between Inner Locking: 1436mm
• Height: 2200mm
• Top Deadbolt to Spindle: 718mm
• Bottom Deadbolt to Spindle: 718mm
• Door Material: UPVC, Aluminium, Timber, Composite

Measuring Guidelines:

To ensure accurate measurements for your Lockmaster Standard multipoint door lock, follow these guidelines:

How to Measure the Backset:

1. Measure from the edge of the door to the center of the keyhole.
2. This distance is your backset measurement.

How to Measure the Centres (PZ):

1. Measure from the center of the keyhole to the center of the handle hole.
2. This will give you the PZ measurement, which is crucial for compatibility.

How to Measure the Faceplate:

1. Remove the existing faceplate from the door.
2. Measure the length and width of the faceplate to ensure you select the correct size from the drop-down options.

These measurements are essential for ensuring a proper fit and optimal security for your door lock installation.
