Latch 3 Deadbolts 4 Rollers Double Spindle Multipoint Door Lock

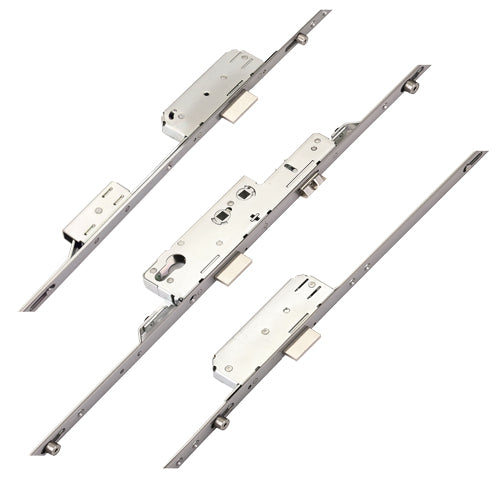

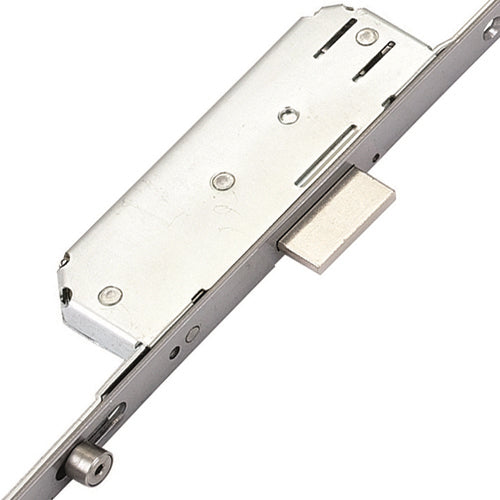

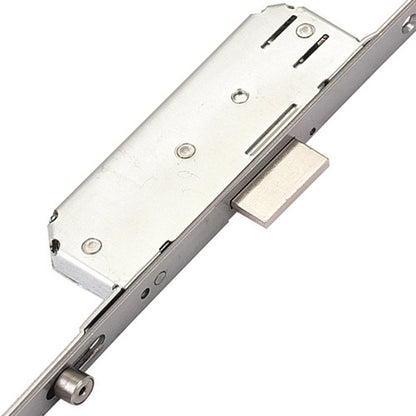

Product Overview: Avocet Multipoint Door Lock

The Avocet multipoint door lock is designed for enhanced security and durability, featuring a robust configuration of 4 rollers, 3 deadbolts, and 1 latch. This lock is engineered to provide peace of mind while ensuring ease of use.

Key Features:

• Unique Locking Positions: The original Avocet design incorporates distinctive locking positions for added security.
• Finish Options: Available in a Trivalent silver finish, with a stainless steel option available by special order for harsher environments.
• Identification: Easily identifiable by faceplates stamped with the Avocet logo or the older "WMS" logo. The uniquely shaped gearboxes feature a cut-out extending below the latch.
• Versatile Configurations: Originally offered in various configurations, including hooks and rollers, with notable exceptions for specific models.
• Sash Lifter Device: Some models include a "sash lifter" for improved alignment, though replacements are recommended for discontinued versions.
• Backset Measurements: Most locks are designed with a 35mm backset, while the Affinity Bastion lock accommodates a 45mm backset for composite doors.

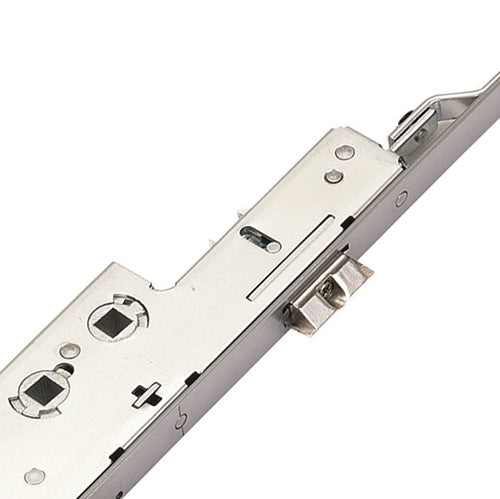

• Double Spindle Nightlatch Configuration: Current models are available only in this configuration, with options for lift lever functionality.
• Compatibility with Shootbolts: Designed for PVCu doors with a flat 16mm faceplate, allowing for shootbolt integration.

Technical Specifications:

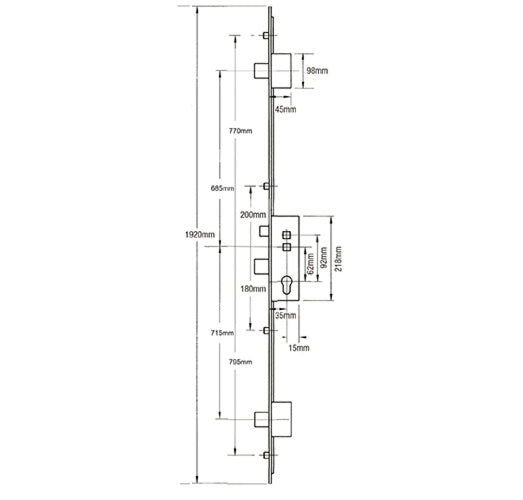

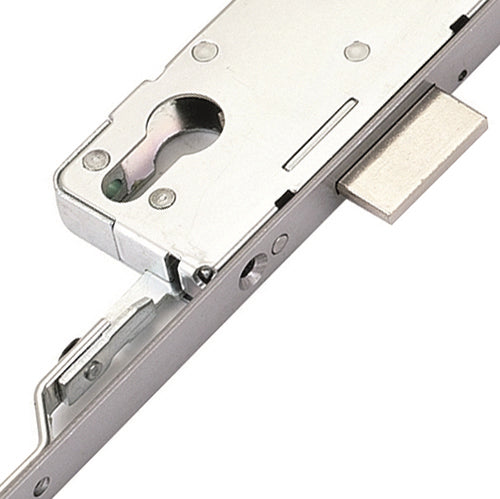

• Gearbox Dimensions: 218mm high, with a backset measurement of 35mm plus 15mm for the faceplate.

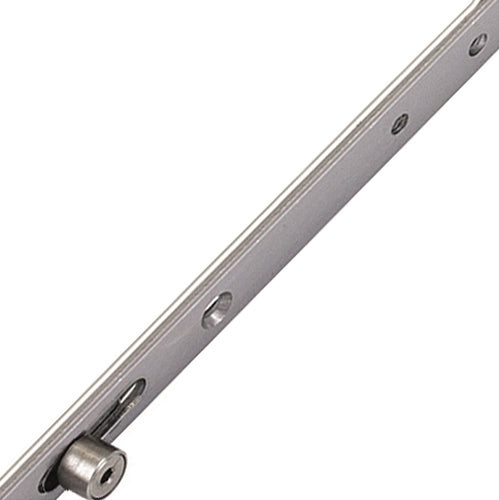

• Deadbolt and Roller Design: Deadbolts feature a 20mm throw made from nickel-plated brass, while rollers are also nickel-plated for durability.
• Operation Mechanism:
  • To Lock:
    • Close the door to engage the latch.
    • Lift the handle to engage locking points.
    • Turn the key to secure the system.
  • To Unlock:
    • Turn the key to unlock.
    • Push the handle down to disengage locking points.
    • A quarter turn of the key retracts the latch.

Corrosion Resistance: Compliant with BSEN1670:2007 Grade 4, tested for 100,000 cycles, ensuring long-lasting performance.

For assistance in finding the best replacements or for any inquiries regarding Avocet multipoint door locks, please contact us. Your security is our priority!

Product Specification

• Manufacturer: Avocet
• Spindle Size: 8mm
• Rollers: 4
• Deadbolts: 3
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Spindle: Double 8mm
• Handing: Non handed
• Distance Between Inner Locking: 380mm
• Distance Between Outer Locking: 1565mm
• Height: 1920mm
• Top Roller to Spindle: 770mm
• Bottom Roller to Spindle: 795mm
• Top Deadbolt to Spindle: 685mm
• Bottom Deadbolt to Spindle: 715mm
• Door Material: UPVC, Aluminium

Measuring the Backset:
To measure the backset, take a ruler and measure the distance from the edge of the door to the center of the lock cylinder. This measurement is crucial for ensuring a proper fit.

Measuring the Centres (PZ):
To measure the centres, measure the distance from the center of the keyhole to the center of the handle hole. This will help you determine the correct PZ measurement for your lock.

Measuring the Faceplate:
To measure the faceplate, measure the width and height of the existing faceplate on your door. Ensure to account for any additional features or cutouts that may be present.

If you have any further questions or need assistance with your Avocet multipoint door lock, feel free to reach out! Your security is our priority!
