Latch 2 Rollers Multipoint Door Lock

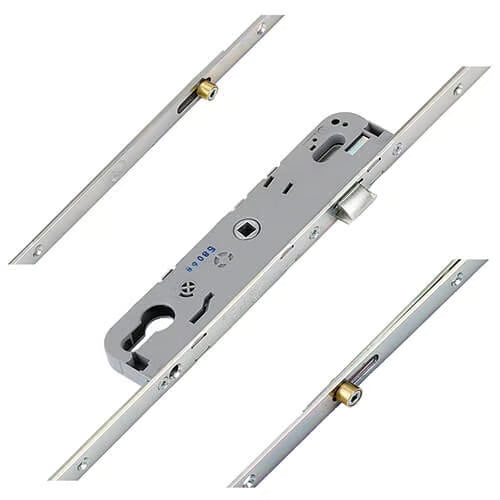

Product Overview: GU Ferco Standard Multipoint Door Lock

The GU Ferco Standard multipoint door lock is designed for durability and ease of use, featuring 2 rollers and 1 latch. This lock is part of the GU group of companies, known for its unique 70mm centres (PZ), making it easily identifiable in the market.

Key Features:

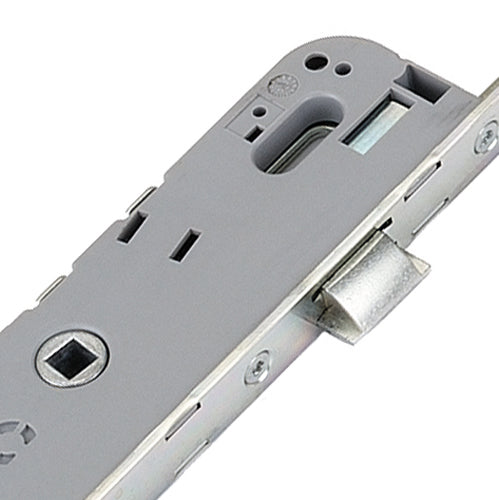

• Latch-Only Design: The standard Ferco UPVC door lock operates with a latch only, lacking a deadbolt in the central gearbox. It is available with either 2 or 4 rollers.
• Security Level: While these locks are high quality, they offer lower security by modern standards. New doors are typically not manufactured with this type of lock, but they have been widely used, leading to a significant replacement market.

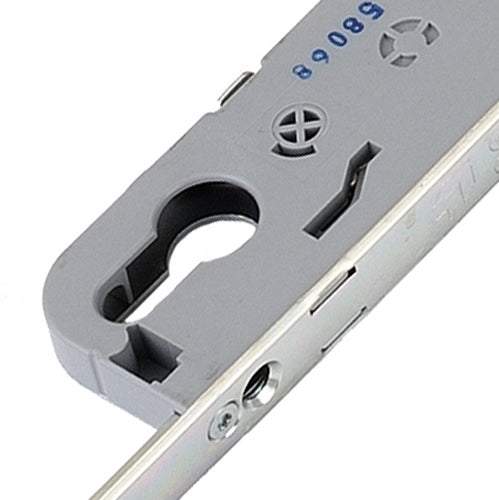

• Unique Gearbox: The Ferco gearboxes are distinctive due to their latch-only mechanism and the 70mm PZ measurement.
• Spindle Specifications: The lock features a solid spindle with a standard lift lever function. Note that the spindle measures 7mm, which is smaller than the standard 8mm found in most locks. Ensure that 70mm PZ handles are supplied with a compatible 7mm spindle.
• Dimensions: Gearboxes measure 198mm in height and have a backset width of +15mm.

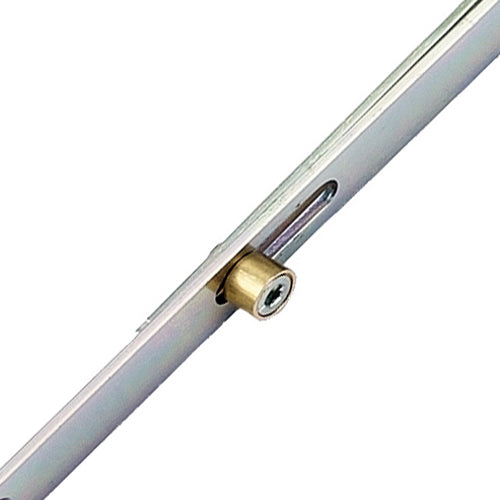

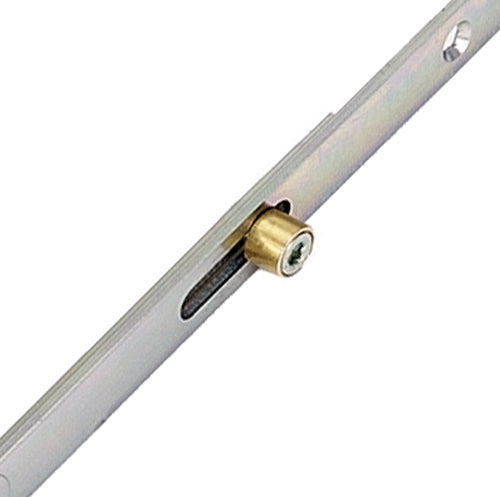

• Roller Functionality: The rollers serve to compress the door against the frame, aiding in weather sealing and preventing dust or water ingress. They also help maintain the door's shape, provided the rollers are properly engaged with their keeps. Rollers can typically be adjusted by +/- 1mm for optimal sealing.

Operation Instructions:

• To Lock the Door:
  • Lift the handle upwards to engage the locking points.
  • Secure the locking points and main deadbolt (if applicable) by turning the key.
• To Unlock the Door:
  • Turn the key to unlock the system.
  • Push the handle downwards to disengage the locking points and retract the latch.

Additional Products: We offer a variety of associated products for the GU Ferco Standard multipoint door locks, including keeps, spindles, handles, and other accessories.

This lock can be utilized in both UPVC and aluminium door applications, making it a versatile choice for various installations.

Product Specification

• Manufacturer: GU Ferco
• Spindle Size: 7mm
• Rollers: 2
• Latch: 1
• Main Gearbox: Latch only
• Spindle: Single 7mm
• Handing: Non handed
• Distance Between Inner Locking: 1399mm
• Height: 2200mm
• Top Roller to Spindle: 720mm
• Bottom Roller to Spindle: 679mm
• Door Material: UPVC, Aluminium

Measuring Guidelines:

To ensure accurate measurements for your GU Ferco Standard multipoint door lock, follow these guidelines:

Backset Measurement: Measure from the edge of the door to the center of the lock cylinder. This distance is crucial for ensuring the lock fits properly.

Centres PZ Measurement: The PZ measurement is the distance from the center of the keyhole to the center of the handle. Use a ruler or tape measure to get this measurement accurately.

Faceplate Measurement: To measure the faceplate, determine its width and length. This will help in selecting the correct faceplate from the drop-down options.

By following these steps, you can ensure that your lock installation is seamless and secure.
