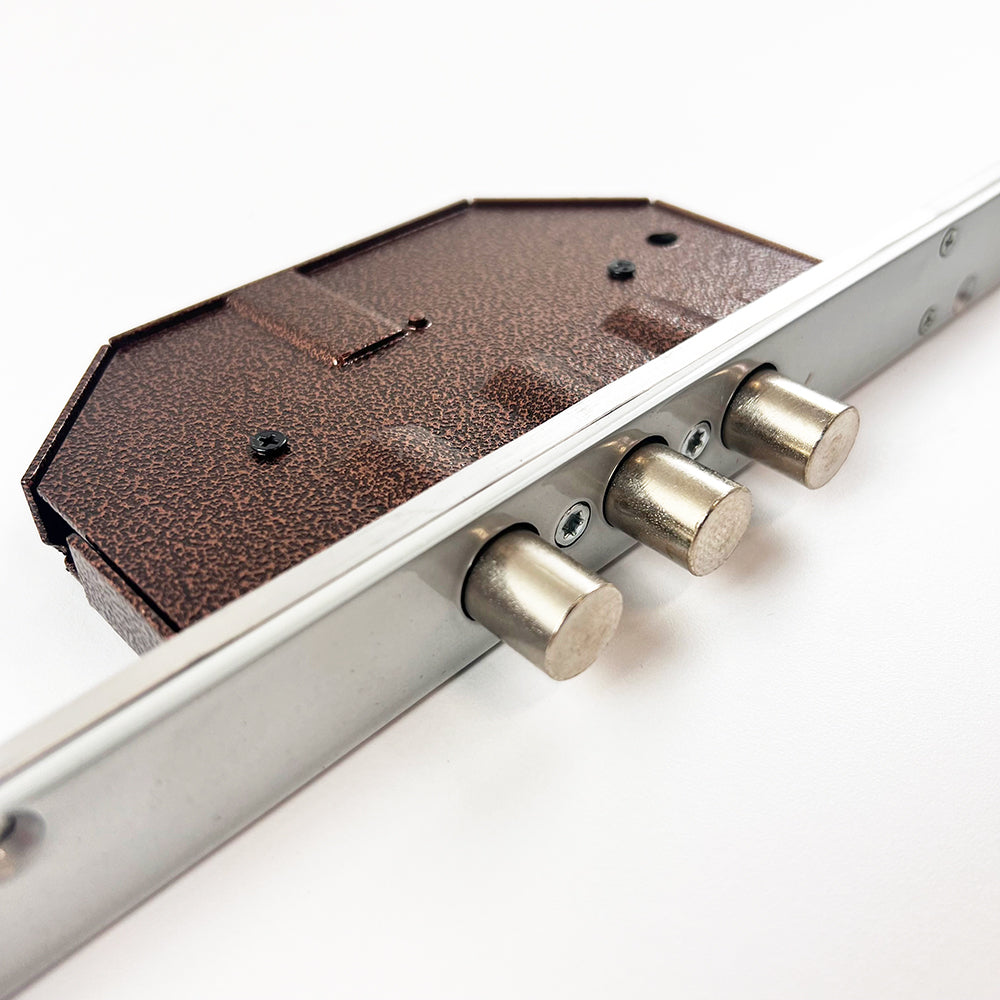

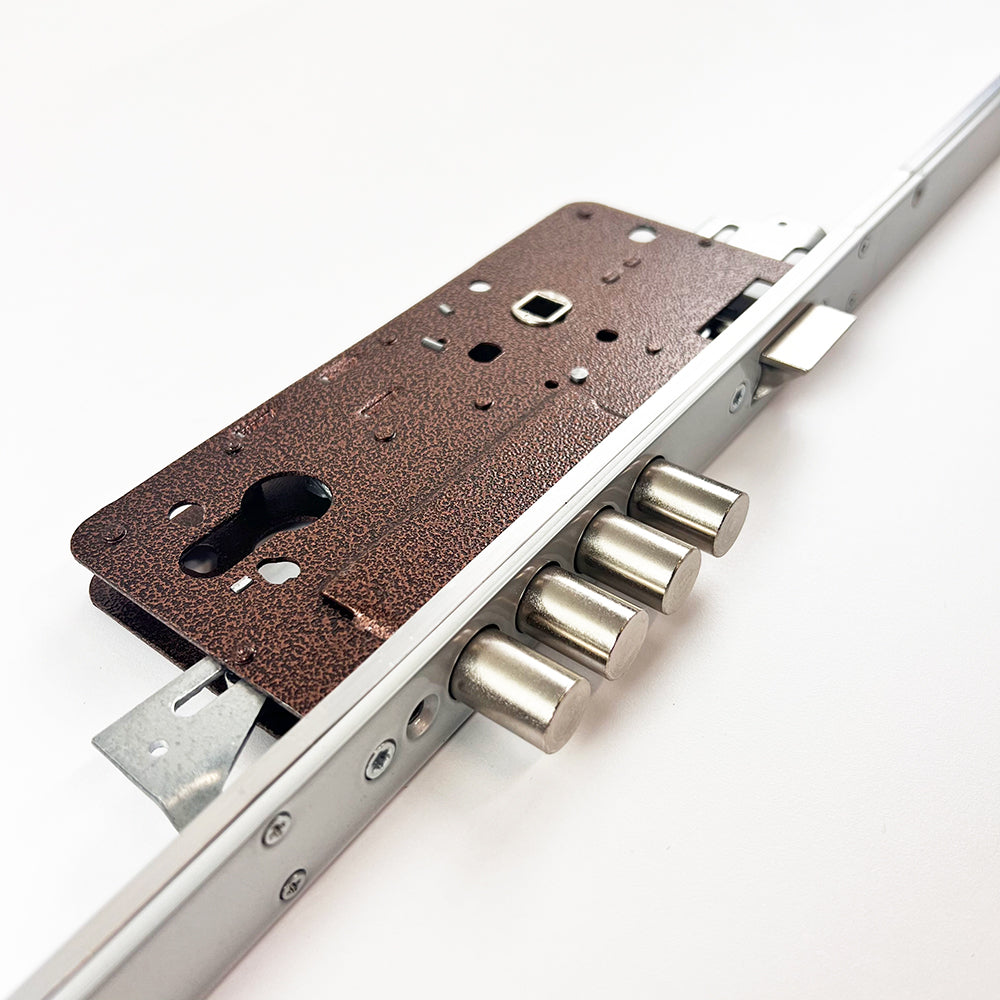

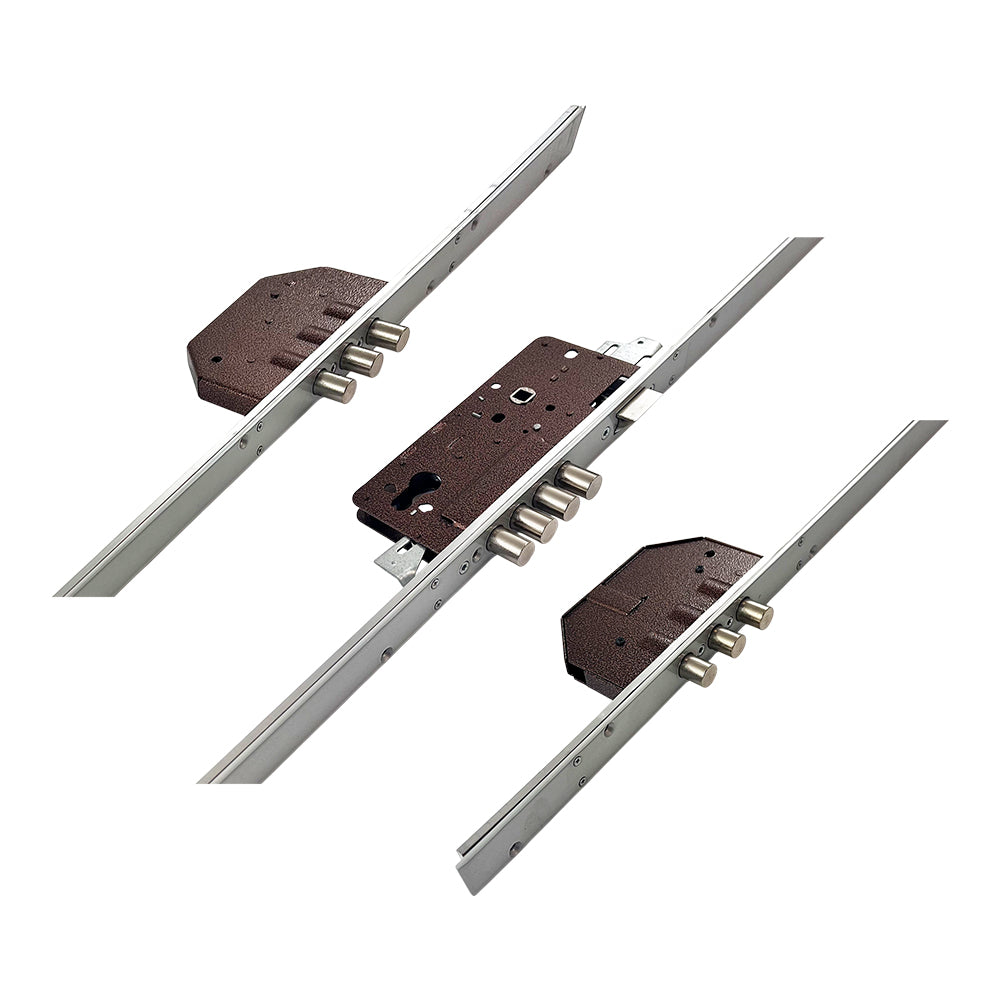

This key wind Vicaima multipoint lock is available in a 50mm backset.
Product Specification
Manufacturer: Vicaima

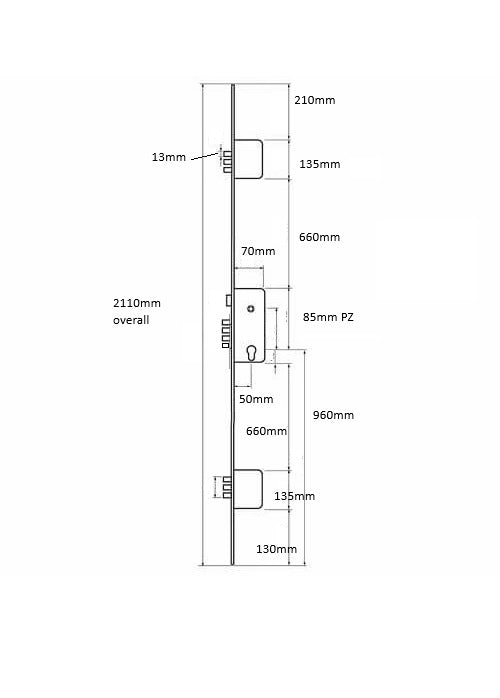

Case Width: Backset + 20mm
Distance between outer locking points: 1630mm
Pin Bolts: 10
Copy/Genuine: Genuine
Cylinder Type: Euro
Handing: Not Handed
Spindle: Single 8mm
Packaging: Supplied in singles

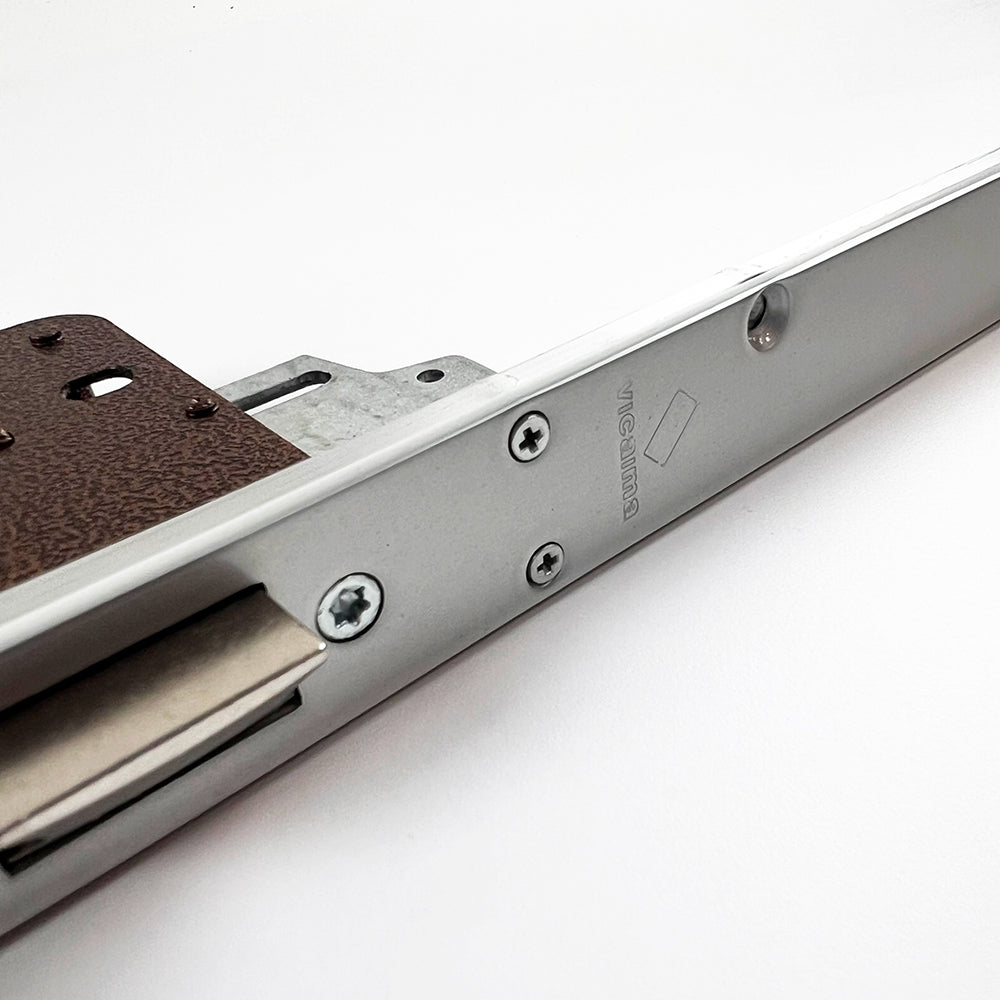

Faceplate width: 25mm
Measuring the Backset: To measure the backset, you need to determine the distance from the edge of the door to the center of the keyhole or cylinder. Use a ruler or measuring tape for accuracy.
Measuring the Centres: The centres PZ measurement is the distance from the center of the keyhole to the center of the handle spindle. Again, measure from the edge of the door to ensure precision.
Understanding Key Wind Operation: Key wind operation refers to the mechanism that allows the lock to be engaged or disengaged using a key. This type of lock typically requires turning the key to activate the locking pins.
Additional Information
Packaging: Each lock is supplied individually, ensuring you receive a fresh product.
Faceplate Width: The faceplate width of 25mm ensures compatibility with standard door frames.
This multipoint lock is designed for durability and security, making it an excellent choice for residential or commercial applications.
