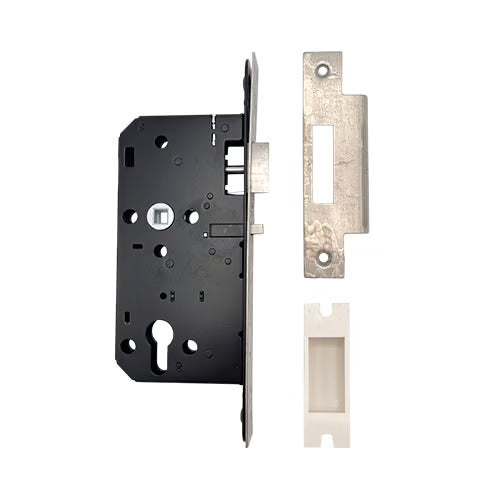

L2C26 Euro Escape Mortice Sashlock

The Union L2C26 Euro Escape Sashlock Case is engineered for seamless operation, allowing for a single lever exit. This lock is ideal for doors that do not necessitate exit devices in compliance with BS EN 1125 or BS EN 179 standards.

Key Features

• Dual Operation: The latch bolt can be withdrawn from both sides using the lever, while the deadbolt is operated from the inside lever and via key access from the outside.
• Versatile Design: Compatible with bolt-through furniture featuring 38mm centres, this lock is designed for timber doors and can be installed on either the left or right side thanks to its reversible latch bolt and escape mechanism.
• Fire Safety Compliance: Assessed under EN 1634-1 for use on 60-minute timber fire doors, it aids in meeting obligations under DDA legislation and adheres to BS8300 and Approved Document M (ADM).
• Material Compatibility: While primarily intended for timber doors, it is also suitable for steel and composite doors with the use of special fixings.

Product Specifications

• Faceplate Dimensions: 235mm x 24mm
• Forend Screw Centres: 205mm
• Escutcheon Screw Centres: 38mm
• Case Height: 165mm
• Case Width: 83mm
• Bolt Throw: 15mm
• Centre Measurement: 72mm
• Spindle Size: 8mm
• Included Accessories: Supplied with a strike plate matching the faceplate
• Packaging: Available in singles, with an outer box quantity of 10
