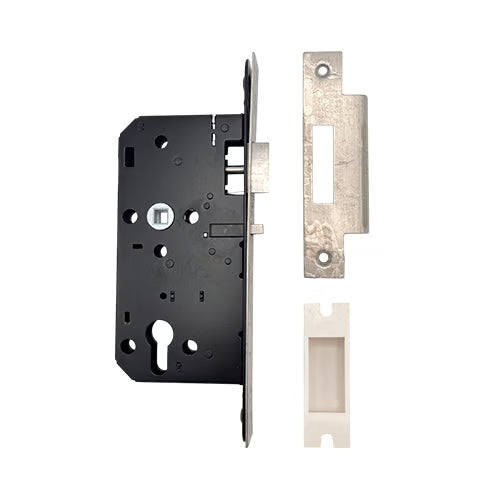

L2C25 Euro Deadlocking Mortice Nightlatch

The Union L2C25 Euro Deadlocking Nightlatch is expertly crafted for timber doors, offering a versatile and secure locking solution. This non-handed latch features an easily reversible stainless steel latch bolt, allowing for installation on either the left or right side of the door.

Key Features:

• Operation: The latch can be withdrawn by turning the key from the outside or by using the handle from the inside. The latchbolt is automatically secured by an anti-thrust bolt when the door is closed, ensuring enhanced security.
• Compatibility: Designed to accommodate bolt-through furniture with 38mm centres, this lock is suitable for unsprung lever furniture weighing up to 0.75kg.
• Fire Safety Compliance: The Union L2C25 has been assessed to EN 1634-1 standards for use on 60-minute timber fire doors, making it a reliable choice for safety-conscious installations. It also assists in meeting obligations under the Disability Discrimination Act (DDA) legislation and complies with BS8300 and Approved Document M (ADM).
• Versatile Use: While primarily designed for timber doors, this nightlatch is also compatible with steel and composite doors, although special fixings will be necessary.

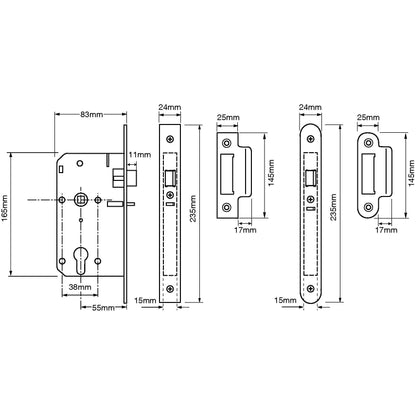

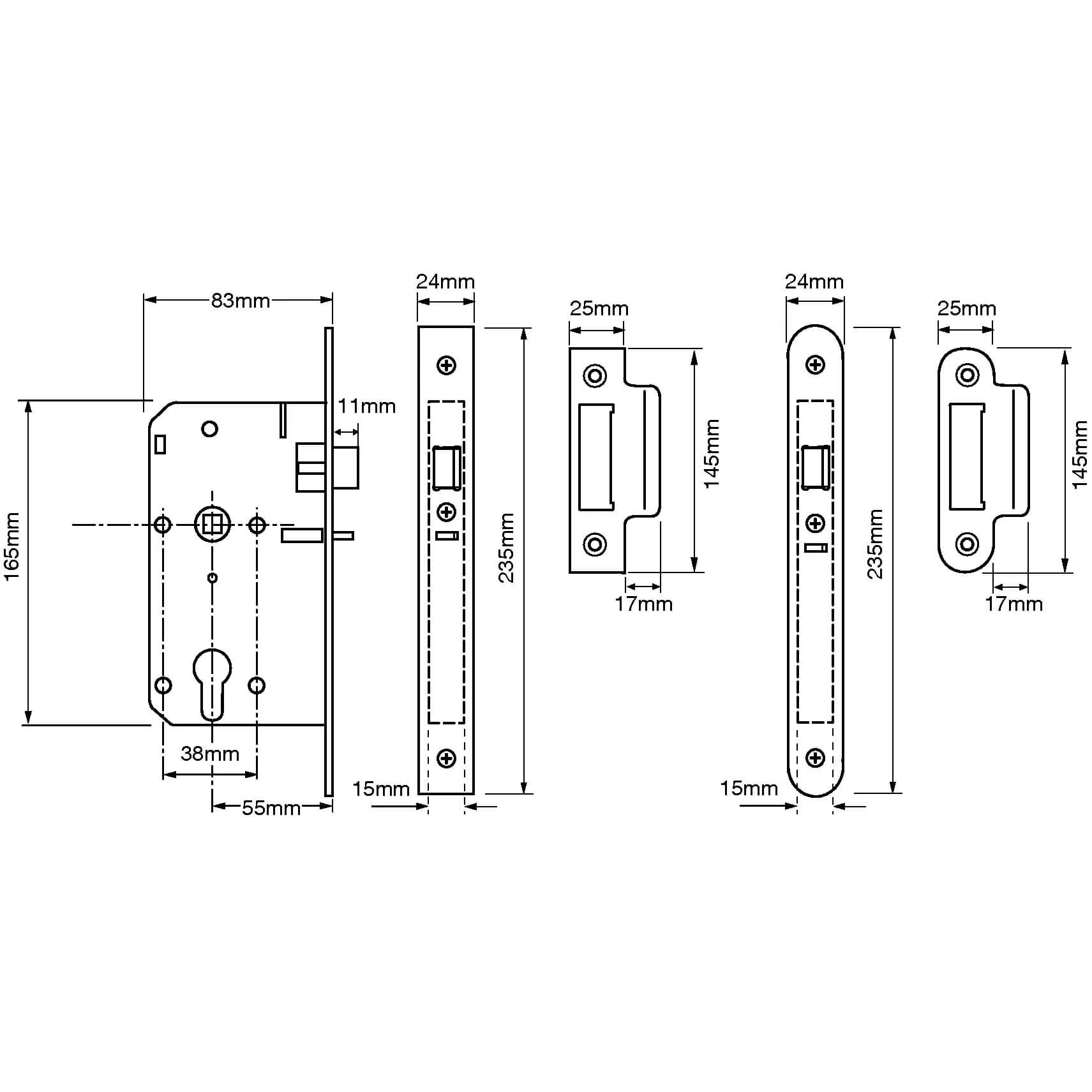

Product Specifications:

• Faceplate Dimensions: 235mm x 24mm
• Forend Screw Centres: 205mm
• Escutcheon Screw Centres: 38mm
• Case Height: 165mm
• Case Width: 83mm
• Centre Distance: 72mm
• Spindle Size: 8mm
• Packaging: Supplied with a matching strike plate, available in singles, with an outer box quantity of 10.

This nightlatch combines functionality with compliance, making it an excellent choice for both residential and commercial applications.
