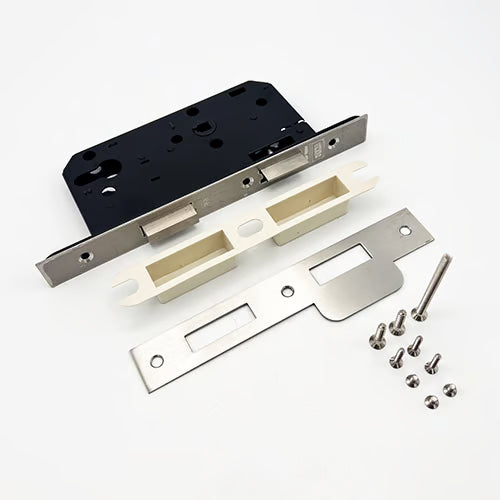

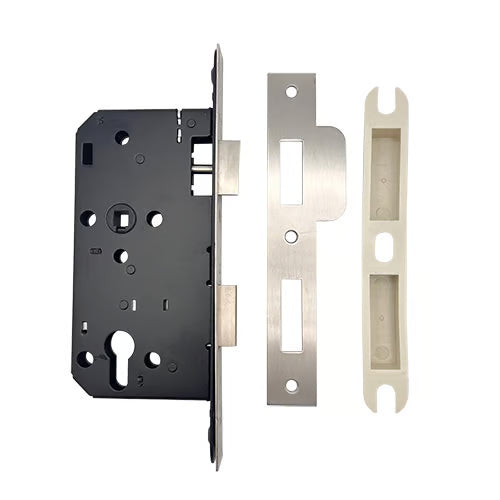

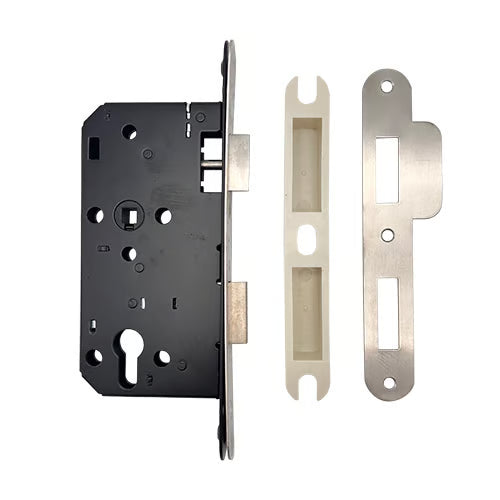

L2C21 Euro Mortice Sashlock

Introducing the Union L2C21 Euro Sashlock Case, expertly designed for timber doors. This versatile lock is non-handed and features an easily reversible latch, allowing for seamless installation on either the left or right side of the door.

Key Features

• Double Throw Mechanism: The 20mm deadbolt engages with a simple two-turn key action, providing enhanced security.
• Latch Operation: Withdraw the latch effortlessly using either a handle or key.
• Compatibility: Designed to accommodate bolt-through furniture with 38mm centres, this lock is suitable for unsprung lever furniture weighing up to 0.75kg.
• Fire Safety Compliance: EN 1634-4 assessed for use on 60-minute timber fire doors, ensuring compliance with fire safety regulations.
• Accessibility Standards: Assists in fulfilling duties under DDA legislation and meets the requirements of BS8300 and Approved Document M (ADM).

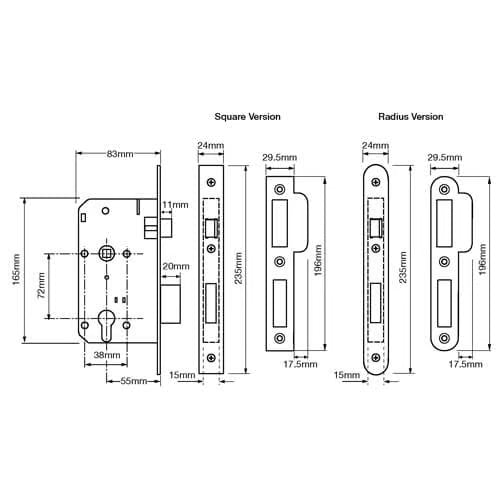

Product Specifications

• Faceplate Dimensions: 235mm x 24mm
• Forend Screw Centres: 205mm
• Escutcheon Screw Centres: 38mm
• Case Height: 165mm
• Case Depth: 83mm
• Bolt Throw: 20mm
• Centre Measurements: 72mm
• Spindle Size: 8mm
• Fire Door Assessment: EN 1634-1 for 60-minute timber fire doors
• Included Accessories: Supplied with a matching strike plate
• Packaging: Available in singles, with an outer box quantity of 10
