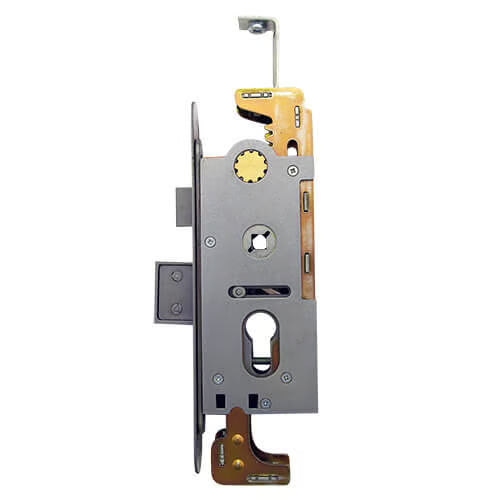

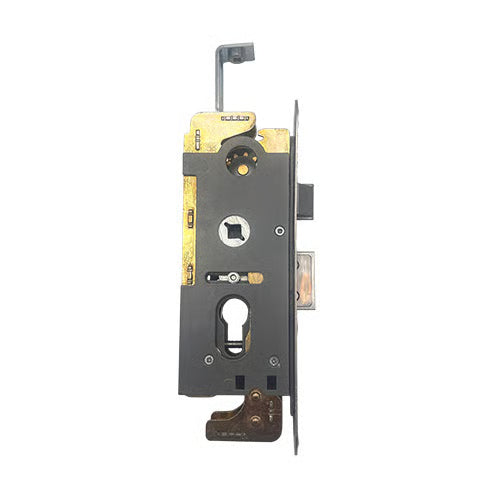

The Union L22174 Everest multipoint gearbox is designed for enhanced security and functionality in your door systems.
Specifications:
Faceplate Dimensions: 210mm x 30mm
Operation Mechanism: Lift lever or split spindle
Important Notes:
Strike Plate & Fixings: Please note that the strike plate, fixings, and shootbolt kits are no longer available. As a result, existing shootbolts cannot be reused.
Deadbolt Operation: If you cannot use the shootbolts, the case must be operated solely as a deadbolt.
Latch Reversal Instructions:

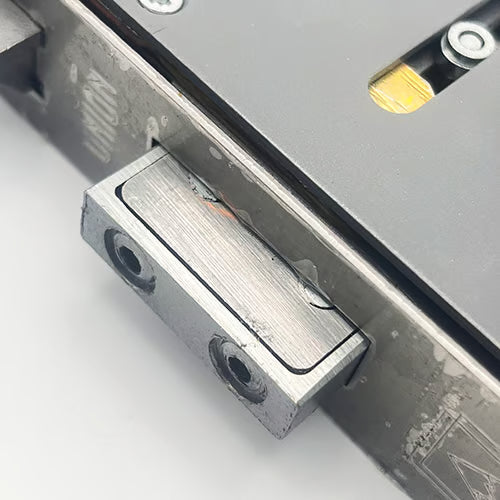

Push the latch clear of the faceplate.
Twist the latch to reverse it.
Release the latch to secure it in the new position.
This gearbox is ideal for those looking to upgrade their door security while ensuring ease of use.
To ensure optimal performance and security, follow these guidelines for locking and unlocking your door with the Union L22174 Everest multipoint gearbox.
To Lock the Door
On closing the door, the latch is automatically engaged.
Lift the handle up to engage the additional locking points.
Throw the deadbolt and lock the system by turning the key (on some brands, the deadbolt will be thrown by lifting the handle).
To Unlock the Door
Unlock the system by turning the key.
Push the handle downwards to disengage the locking points.
A further quarter turn of the key will retract the latch.

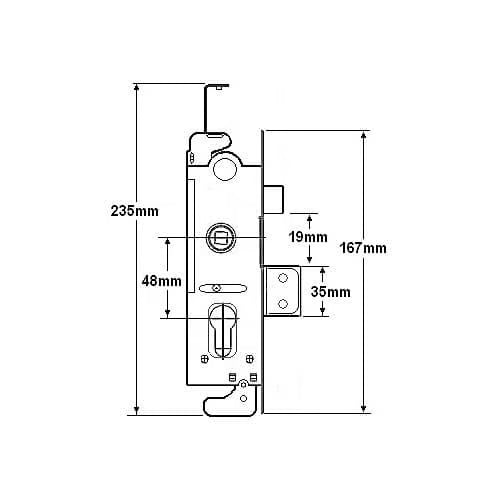

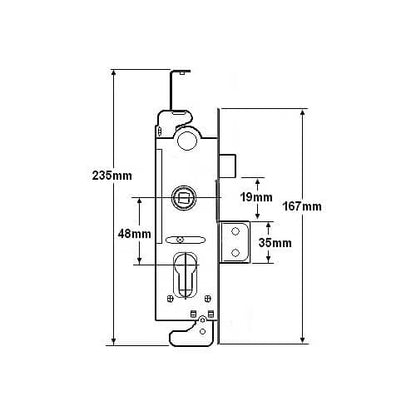

Product Specification
Manufacturer: Union
Backset: 38mm - How do I measure the backset?
Centres PZ: 48mm - How do I measure the centres?
Case Height: 140mm
Case Width: 68mm
Copy/Genuine: Genuine
Cylinder Type: Euro
Handing: Not Handed
Main Gearbox: Latch & deadbolt

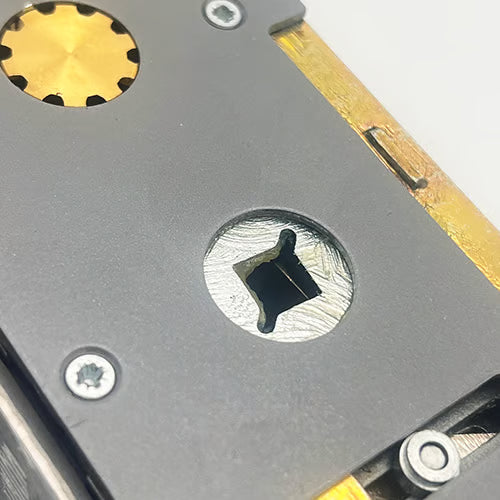

Spindle: Split 8mm
Operation: Lift Lever or Split Spindle Nightlatch - What is the operation?
Packaging: Supplied in singles
This comprehensive guide will help you effectively use your Union L22174 Everest gearbox, ensuring both security and ease of operation.
