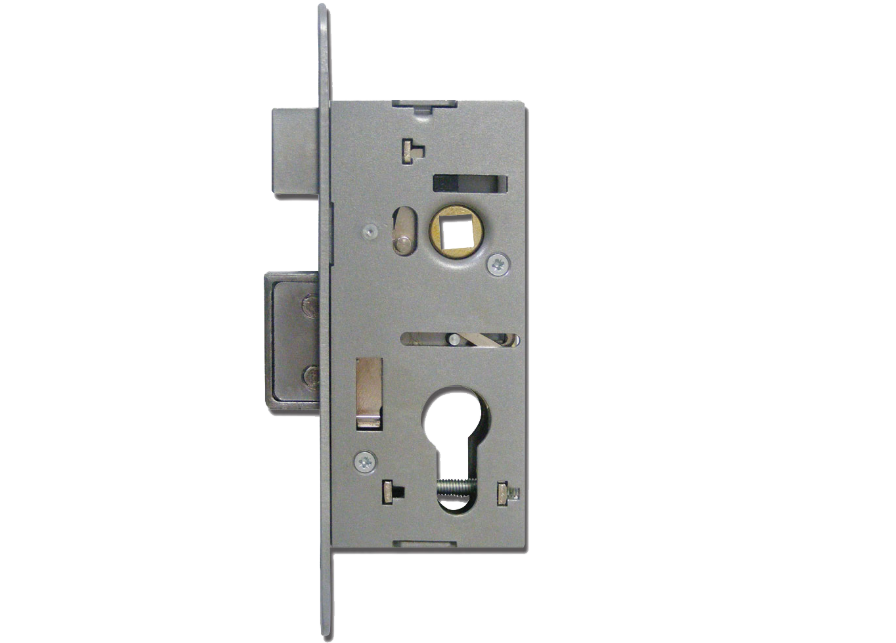

L22070 Euro Sashcase

The YALE L22070 Euro Sashcase is a robust locking solution designed for metal doors, featuring a range of specifications that ensure security and versatility.

Specifications:

• Centres: 48 mm
• Backset: 36mm
• Case Depth: 54mm
• Case Height: 115 mm
• Faceplate Width: 25.5 mm

This lock is equipped with a double throw deadbolt, providing enhanced security. Please note that it is supplied without a faceplate and striking plate, as these components are no longer available separately.

Handing:

To reverse the latch, simply insert a screwdriver into the rear of the case, directly behind the latch. Push the latch forward and rotate it to switch to the opposite hand.

Operation:

• Locking Method: Sash 1. The standard sashlock operation allows the deadbolt to be operated by the cylinder, while the latchbolt is controlled by the handle.

Features:

• Latch & Deadbolt
• Reversible Latch Bolt
• Euro Profile Lock Case
• Suitable for metal doors
• Double throw deadbolt:
  • 1st throw = 12mm
  • 2nd throw extends an additional 12mm

This lock combines functionality with security, making it an ideal choice for various applications.
