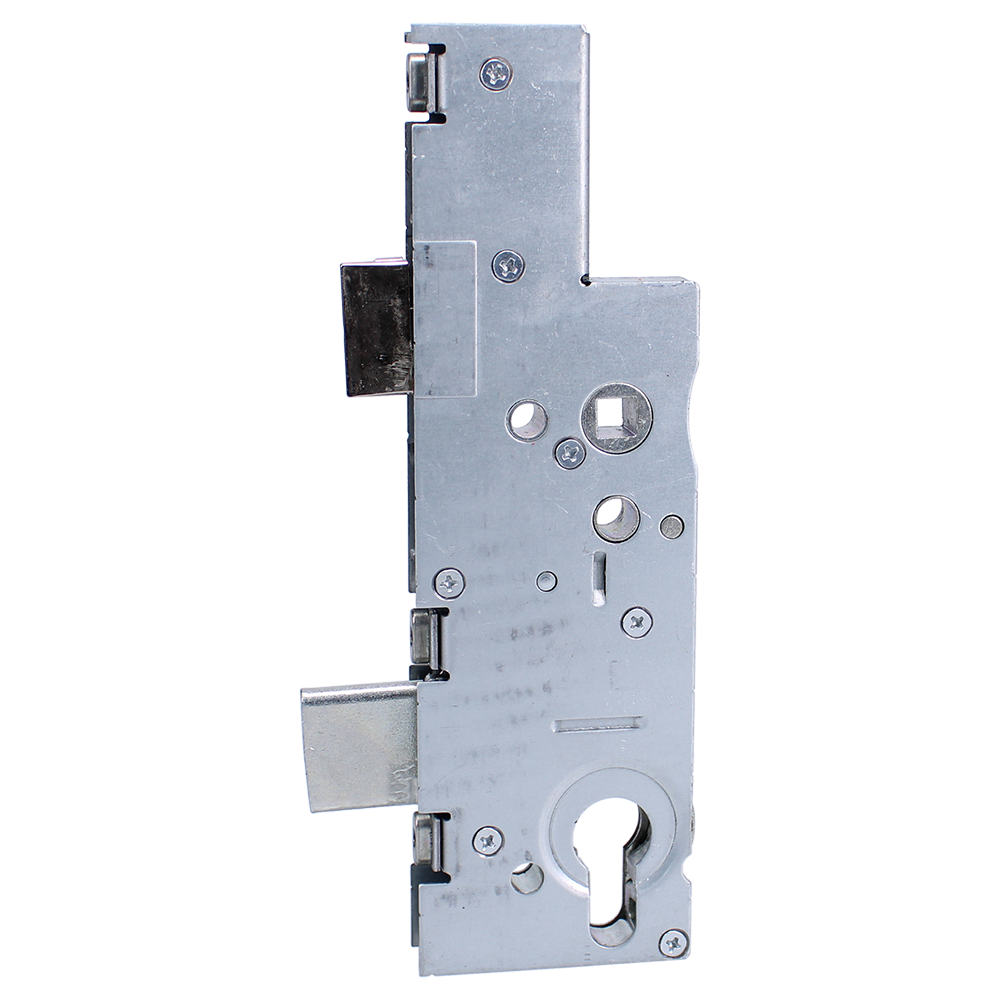

Keywind Latch & Deadbolt Single Spindle Gearbox Only

Introducing the ELITE Keywind Latch & Deadbolt Single Spindle Gearbox, a robust solution designed for both security and convenience. With a compact 35mm backset and 92mm centres, this gearbox is perfect for various applications. Its dimensions include a 200mm case height and a 54mm case width, ensuring a seamless fit in your door.

The ELITE keywind single spindle centre case stands out for its high-performance engineering, offering exceptional durability and precision. The keywind deadbolt mechanism enhances security, while the single spindle design allows for compatibility with a diverse range of handle sets, making it a versatile choice for any project.

Handing
Reversing the latch is a straightforward process. Simply remove the screw in the latch, take it out, flip it to the opposite hand, and refit the screw for easy adaptability.

Operation

• Locking Method: Turn the key two full times to lock, and two full times to unlock. An additional turn will withdraw the latch.

Features

• Gearbox only
• Reversible handing
• Latch & deadbolt
• Single spindle
• Keywind

This gearbox is engineered to meet the demands of modern security while providing ease of use and installation. Upgrade your locking system with the ELITE Keywind Latch & Deadbolt today!
