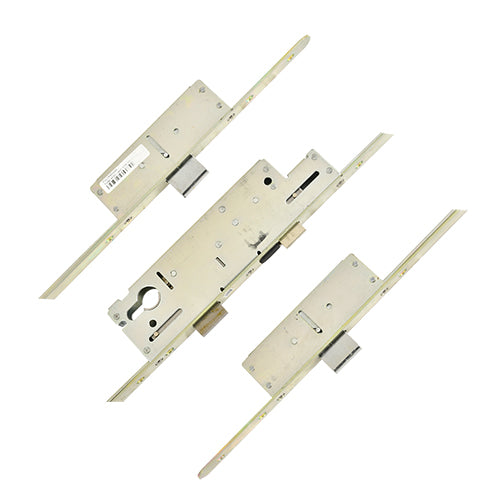

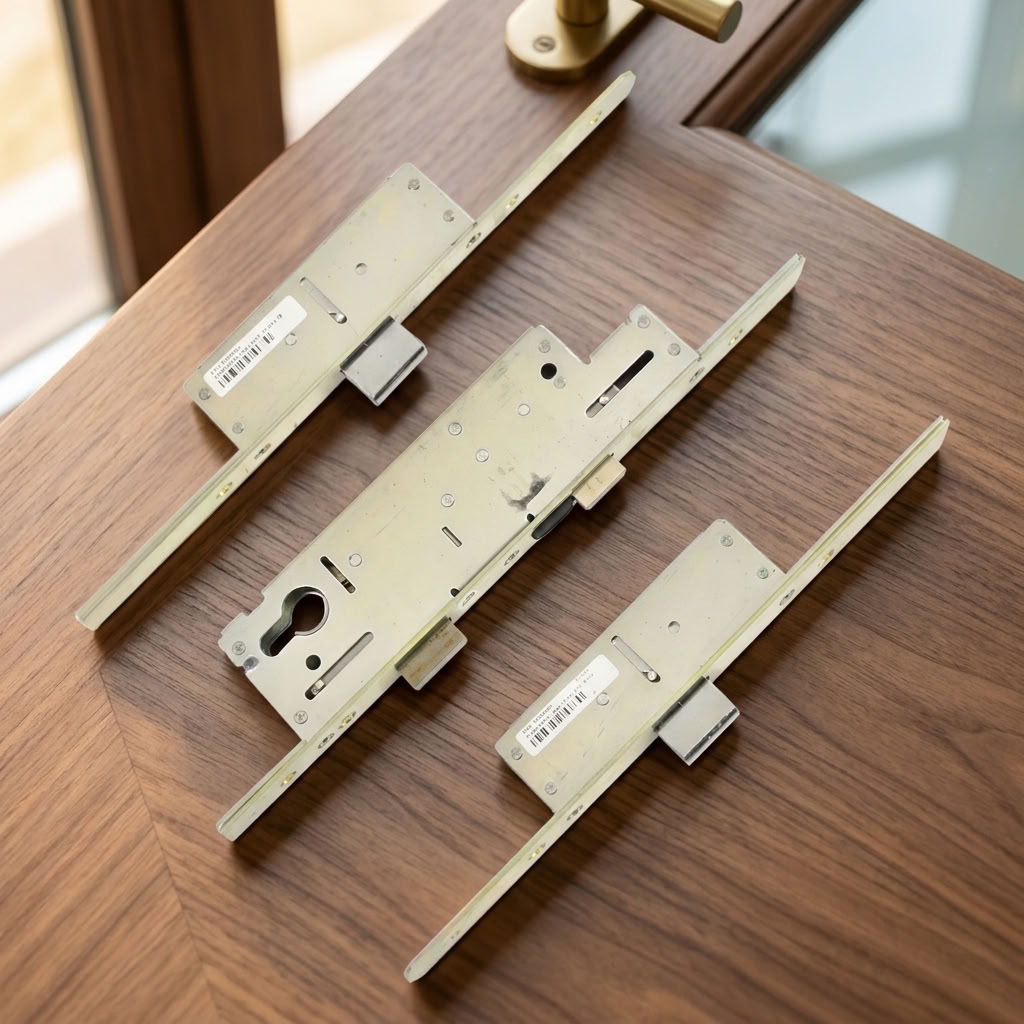

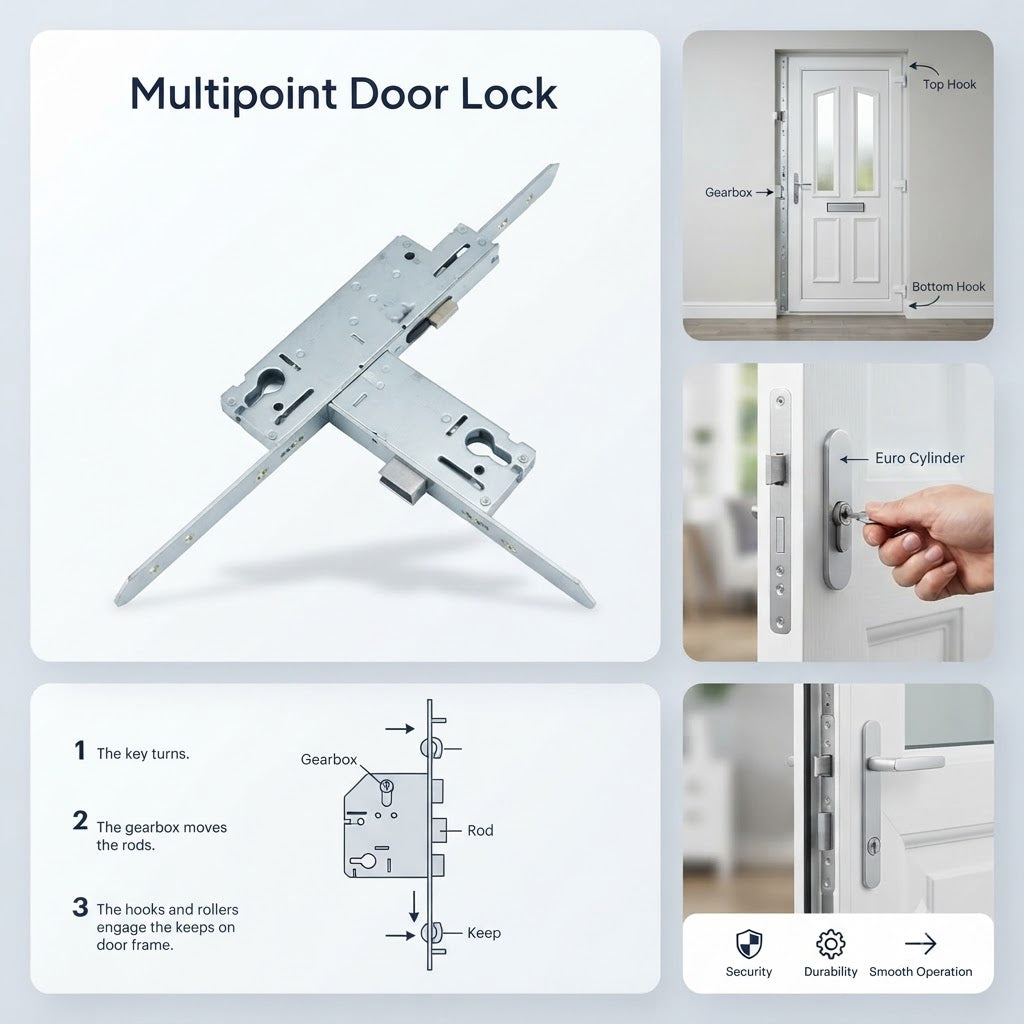

Key Wind Latch 3 Deadbolts Multipoint Door Lock

Product Overview: Fullex Key Wind Multipoint Door Lock

The Fullex Key Wind multipoint door lock is engineered for enhanced security, featuring 3 deadbolts and 1 latch. This lock is specifically designed for timber and composite doors, providing a comprehensive solution for pull handle doors.

Key Features:

• Enhanced Security: Developed to prevent unauthorized access when the door is closed. The latch cannot be moved without a key, ensuring maximum protection.
• Efficient Locking Mechanism: Requires only a half turn of the key to fully lock the door, simplifying the locking process compared to traditional key wind locks.
• Robust Construction: Comes with 3 deadbolts and 2 hooks, complemented by a durable 20mm steel faceplate.
• Versatile Options: Available in both deadbolt and hookbolt variants, with consistent locking point positions for easy identification.

Specifications:

• Gearbox Dimensions: Fullex Key Wind gearboxes are available in 45mm and 55mm backset options. Crimebeater gearboxes measure 227mm high plus the backset + 15mm.
• Locking Points: The top hook measures 686mm from the top spindle, while the bottom hook measures 714mm.
• Durability Standards: Corrosion resistance rated at BS EN 1670 Grade 4 for 240 hours, and cycle tested for 50,000 operations.
• Compliance: Meets Secured by Design standards and is suitable for use on PAS24 compliant door sets.

Operation Instructions:

• To Lock the Door:
  • Close the door to automatically engage the latch.
  • Turn the key to throw and engage the locking points.
• To Unlock the Door:
  • Turn the key to unlock by "unwinding" the locking points.
  • A further quarter turn will retract the latch.

Product Specification

• Manufacturer: Fullex
• Spindle Size: 8mm
• Deadbolts: 3
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Spindle: Single 8mm
• Handing: Non handed
• Distance Between Inner Locking: 1400mm
• Height: 1720mm
• Top Deadbolt to Spindle: 700mm
• Bottom Deadbolt to Spindle: 700mm
• Door Material: Timber, Composite

For precise measurements, follow these guidelines:

Measuring the Backset: To measure the backset, take a ruler and measure the distance from the edge of the door to the center of the lock cylinder. This will give you the backset measurement needed for proper fitting.

Measuring the Centres (PZ): To measure the centres, measure the distance from the center of the keyhole to the center of the handle hole. This is crucial for ensuring that the lock and handle align correctly.

Measuring the Faceplate: To measure the faceplate, measure the width and height of the area where the faceplate will be installed. Ensure to account for any additional space needed for the lock mechanism.

Operation: The operation of the lock can vary based on the specific model. Please refer to the product manual or consult with a professional for detailed operational instructions.
