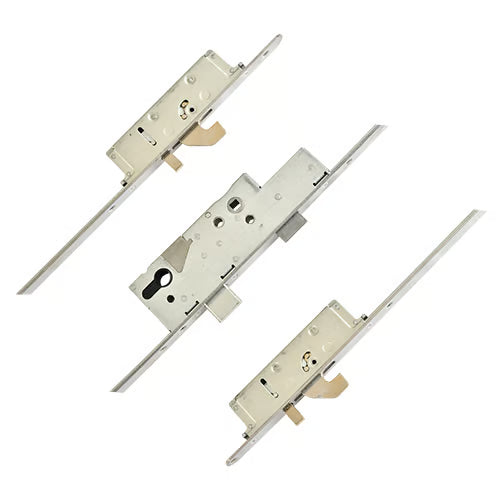

Key Turn Latch Deadbolt 2 Hooks 2 Anti Lift Pins Key Wind Multipoint Door Lock

Lockmaster Key Turn Multipoint Door Lock

The Lockmaster Key Turn multipoint door lock is engineered for modern doors, combining security and convenience with its robust design. This lock features:

• 2 Hooks
• 1 Deadbolt
• 1 Latch
• 2 Anti Lift Bolts

Key Features:

The Yale Lockmaster Key Turn lock is designed with a key wind mechanism, allowing users to secure their doors with ease. The latch engages automatically upon closing, and the locking points can be activated or deactivated with a simple turn of the key.

Compatibility:

These locks are versatile, suitable for both timber and composite doors. They come in two styles:

• Classic: Main gearbox positioned centrally.
• Heritage: Main gearbox located at the height of a traditional timber door night latch.

Typically, these locks are paired with contemporary pull handles instead of traditional lever on plate multipoint lock handles.

Design and Specifications:

The Key Turn gearbox stands out with its unique design, featuring a corner removed for a sleek look. It is available in a 45mm backset only, and gearboxes are securely attached to faceplates with three screws, ensuring stability and reliability.

Installation Notes:

When measuring the backset, remember to account for an additional 2-3mm for the faceplate. For instance, a 28mm backset gearbox will measure 25mm when not affixed to the strip.

Lockmaster locks can be equipped with standard hooks or hooks featuring an anti-lift pin for added security. The hook cases measure 136mm in height and always throw upwards.

Operation:

• To Lock the Door:
  • Close the door to automatically engage the latch.
  • Turn the key to activate the locking points.
• To Unlock the Door:
  • Turn the key to "unwind" the locking points.
  • A further quarter turn retracts the latch.

Security Standards:

• PAS24 compliant
• Secured by Design approved
• Tested for over 200,000 cycles
• Salt spray tested to BS EN 1670 grade 4 for 240 hours
• Proudly manufactured in the UK

Additional Products:

We offer a comprehensive range of associated products for the Lockmaster Key Turn multipoint door locks, including keeps, spindles, handles, and accessories.

Product Specifications:

• Manufacturer: Lockmaster
• Spindle Size: 8mm
• Main Gearbox: Latch & deadbolt
• Spindle: Single 8mm
• Handing: Non-handed
• Distance Between Inner Locking: 1544mm
• Height: 1770mm
• Top Hook to Spindle: 775mm
• Bottom Hook to Spindle: 769mm
• Door Material: Timber, Composite

This Lockmaster Key Turn multipoint door lock is an excellent choice for those seeking enhanced security and modern functionality in their door hardware.
