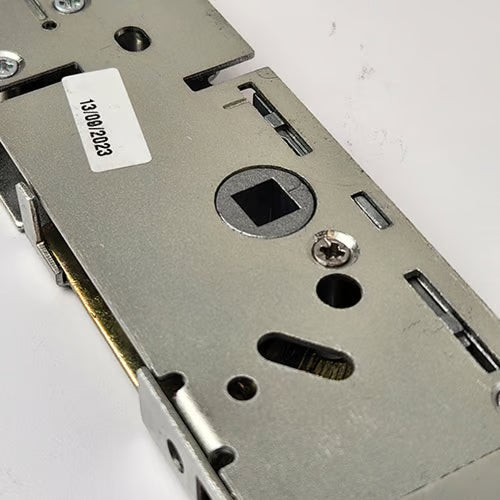

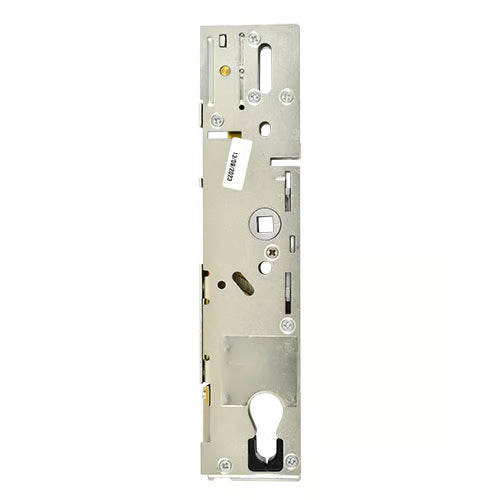

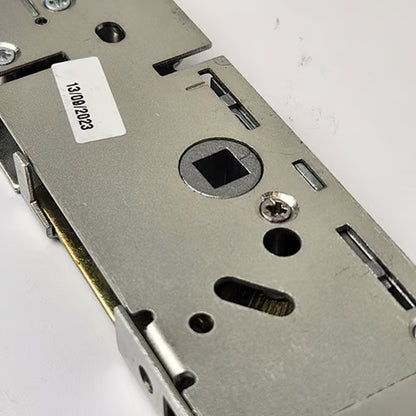

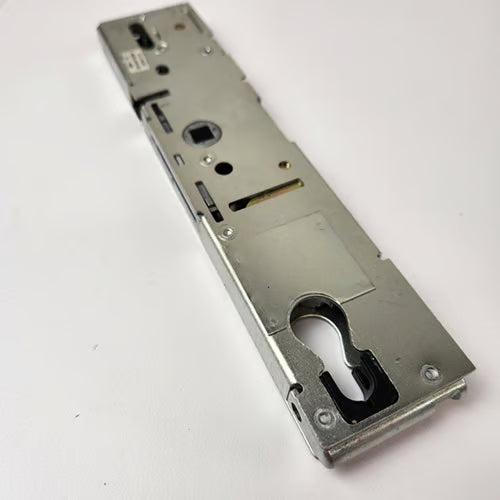

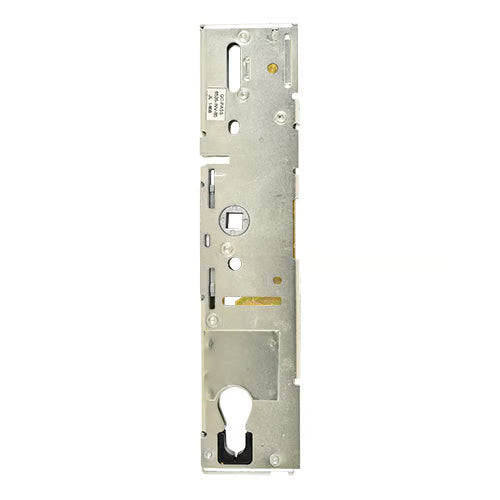

Product Overview: ERA Invincible Passive Lock Gearbox
The ERA Invincible passive lock gearbox is specifically designed to work seamlessly with the ERA Invincible cylinder, offering a robust and reliable locking solution for multipoint door systems.
Key Features:
Distinctive Design: The gearbox features a unique square design without corner cut-outs, ensuring a sleek and modern appearance.
Dimensions:
Overall Length: 221mm
Width: Backset + 18mm
Available Backsets: 30mm, 35mm, or 45mm (all with identical dimensions)
Locking Mechanisms:
Options include a classic deadbolt with standard euro cut out, Invincible cylinder cut out, or Vectis 5 lever mechanism.
Choose between a deadbolt or hook bolt (which throws upward).
Interchangeability:
All ERA gearboxes (except the British Standard Fortress lock) can be interchanged. If your client requires a different locking mechanism, we can customize the lock to order.
Latch and Bolt Specifications:
Latch Height: 24mm (with 2 distinctive screws)
Deadbolt Height: 30mm
Distance Between Latch and Deadbolt: 61mm
Screw Hole Measurements:
First to Second: 37mm
Second to Third: 85mm
Third to Fourth: 43mm
Backset Measurement:
When measuring the backset, account for an additional 2-3mm for the faceplate. For instance, a 35mm backset gearbox will measure 32mm when not fixed to the strip.

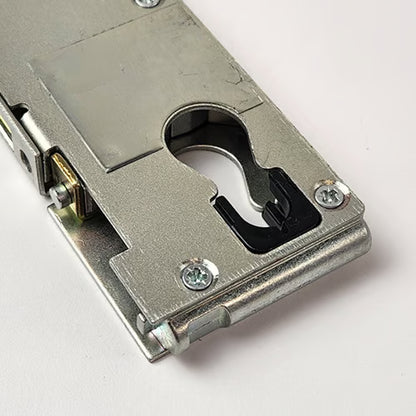

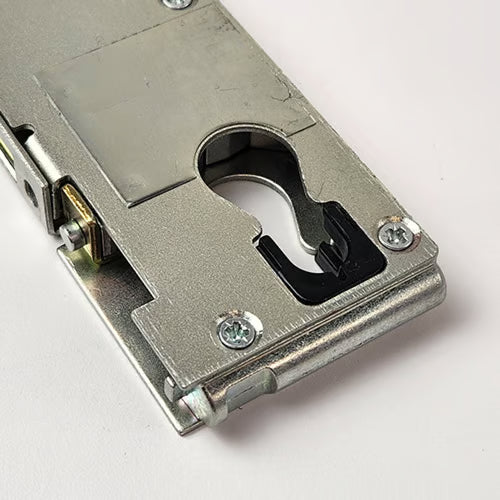

Cylinder Compatibility:
Designed to accept both standard euro cylinders and Invincible shaped cylinders.
Associated Products: We offer a comprehensive range of products compatible with the ERA Invincible gearboxes, including multipoint door locks, keeps, spindles, handles, and various accessories.
Product Specifications:
Manufacturer: ERA
Backset: 35mm
Centres PZ: 92mm
Case Height: 221mm
Case Width: 53mm
Copy/Genuine: Genuine
Cylinder Type: Euro
Handing: Not Handed
Main Gearbox: Passive lock
Spindle: Split 8mm
Operation: Lift Lever
Packaging: Supplied in singles
For any inquiries or custom orders, please reach out to us!
