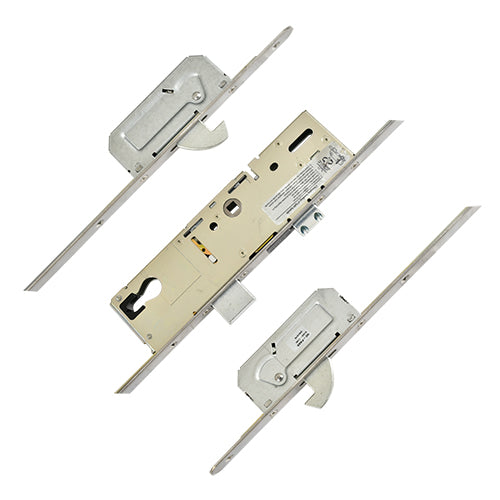

Invincible Latch Deadbolt 2 Hooks Split Spindle Multipoint Door Lock - Option 1 (top hook to spindle = 728mm)

Product Overview: ERA Invincible Multipoint Door Lock

The ERA Invincible multipoint door lock is engineered for security and reliability, featuring a robust design with 2 hooks, 1 deadbolt, and 1 latch. This lock is a standout choice in the UK market, known for its innovative features and high-quality construction.

Unique Cylinder Design

What sets the ERA Invincible apart is its unique cylinder cut-out, accommodating both standard euro cylinders and the specially designed ERA Invincible cylinder. The Invincible cylinder boasts a distinctive "lightbulb" shape at the top with a square base, enhancing its resistance to attacks compared to standard euro cylinders.

Identifying Your Lock

Identifying an ERA multipoint door lock can be straightforward, but be cautious of rebranding. Many locks are made for various door and window companies, often bearing different brand names. Look for the holdback snib on the faceplate, typically grey for deadbolt and hook bolt locks, and blue for Vectis locks. However, some brands may have altered the snib color.

Gearbox Specifications

The ERA Invincible gearboxes are easily recognizable with their square design and lack of corner cut-outs. Measuring 221mm in length, they come in 30mm, 35mm, or 45mm backsets, all maintaining the same dimensions. The gearboxes can feature a classic deadbolt or hook bolt, with the British Standard Fortress gearbox offering enhanced security through hardened drill plates.

Interchangeable Components

Most ERA gearboxes are interchangeable, allowing for customization based on client needs. If a hook lock is required instead of a deadbolt, simply reach out for a tailored solution.

Locking Mechanism

The ERA multipoint locks utilize a split spindle mechanism, simplifying replacements by focusing on one locking function. The operation is user-friendly:

• To Lock: Lift the handle to engage the locking points, then turn the key to secure the deadbolt.
• To Unlock: Turn the key to disengage, then push the handle down to retract the latch.

Durability and Compliance

The ERA Invincible meets BS EN 1670:2007 Grade 4 corrosion resistance standards, enduring 240 hours of testing. It has also been endurance tested for 50,000 cycles and is designed to comply with PAS24:2012 standards for enhanced security.

Conclusion

With its innovative design, robust security features, and ease of use, the ERA Invincible multipoint door lock is an excellent choice for those seeking reliable protection for their doors. Whether upgrading an existing lock or installing a new one, the ERA Invincible delivers peace of mind and durability.

Product Specification

• Manufacturer: ERA
• Spindle Size: 8mm
• Hooks: 2
• Deadbolts: 1
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Spindle: Split 8mm
• Handing: Non handed
• Distance Between Inner Locking: 1395mm
• Height: 2137mm
• Top Hook to Spindle: 728mm
• Bottom Hook to Spindle: 667mm
• Door Material: Timber, Composite

For accurate measurements, follow these guidelines:

1. Backset Measurement: Measure from the edge of the door to the center of the lock cylinder.
2. Centres Measurement: Measure the distance between the center of the keyhole and the center of the handle hole.
3. Faceplate Measurement: Measure the width and length of the faceplate on the lock.
4. Operation: Specify the locking mechanism's operation type, such as key or handle-operated.

These specifications ensure you select the right components for your door lock installation.
