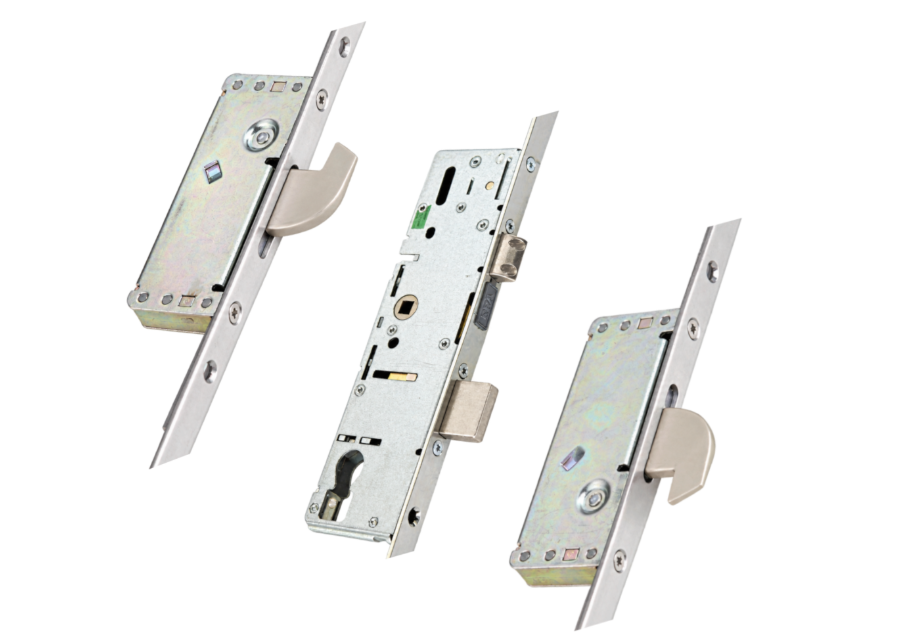

Invincible Euro Cylinder Door Lock 2 Hook 20mm Faceplate

The ERA Invincible Euro Profile Door Lock with 2 Hooks and 20mm Faceplate is engineered for superior security and reliability. With a 45mm backset and 92mm centres, this lock is designed to fit seamlessly into your door, ensuring a perfect installation every time.

This high-security multipoint locking system not only meets but exceeds Secured by Design requirements, having successfully passed the rigorous PAS23 and PAS24 testing criteria. For your peace of mind, it comes with a 10-year manufacturer's mechanical guarantee.

Accreditation

• Complies with PAS24
• Secured by Design accredited

Identification

The ERA Invincible cylinder features a unique anvil-shaped design, combining the familiar upper profile of a standard Euro cylinder with a distinctive square base. This design enhances resistance against common forms of attack, providing a more robust security solution than traditional Euro profile cylinders.

Gearbox

The latch and deadbolt gearbox is designed with a split spindle, featuring a case height of 220mm and a case width of 63mm for optimal performance.

Additional Locking Points

In addition to the internal locking points, the full-length strip includes 2 hook locking points, enhancing security further.

Faceplate

The 20mm wide faceplate is perfect for composite and timber applications, with an overall length of 2100mm, ensuring compatibility with various door types.

Locking Point Distances

• Locking Point Distance A = 728mm
• Locking Point Distance B = 667mm

Croppable

This full-length unit is croppable, allowing you to adjust the strip height to fit your specific door requirements.

Handing

The latch can be easily reversed by removing the screws, rotating the latch, and refitting the screws, making installation straightforward.

Sprung/Unsprung

The gearbox is sprung, featuring an internal spring mechanism that assists with lever return, eliminating the need for additional sprung handles or a separate spring cassette.

Operation

To engage the locking mechanisms, lift the lever and turn the cylinder one full turn to lock. Unlocking is just as simple: turn the key one full turn and push down on the lever.

Features

• Suitable for timber and composite doors
• Secured by Design (SBD licence held by ERA Home Security Limited)
• Steel passivate construction
• Snib facility
• 2 opposing hooks for enhanced resistance against attacks
• Split spindle design
• 20mm faceplate

This lock is the perfect choice for those seeking a reliable and secure locking solution for their doors.
