Intumescent Fire Seal

Introducing our advanced intumescent graphite-based fire seal, expertly designed for door assemblies. This innovative product is encased in a durable PVC sleeve, ensuring optimal performance and longevity.

Key Features

• Intumescent Technology: In the event of a fire, the seal expands significantly, effectively sealing the gap around the door to prevent smoke and flames from spreading.
• Certifications: Our fire seal is Certifire approved and has undergone rigorous testing to meet BS 476: Part 22 and BS EN 1634-1 standards, ensuring reliability and safety.
• Versatile Sizes: Available in a range of sizes to suit various door assembly requirements:
• • 10mm x 4mm (Fire only) FD30
  • 15mm x 4mm (Fire only) FD30 & FD60
  • 20mm x 4mm (Fire only) FD60

Product Specifications

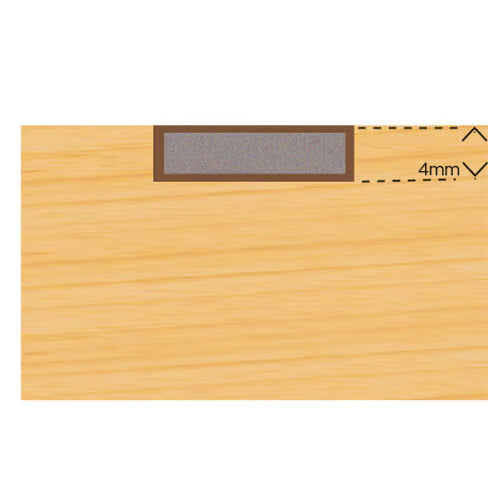

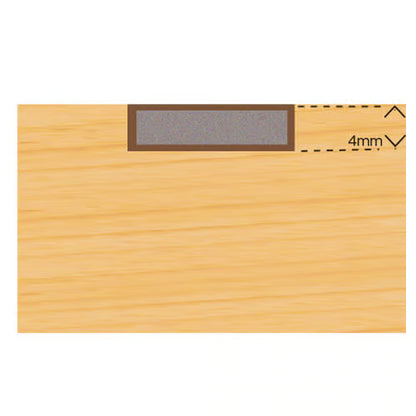

• Dimensions:
• 2100mm x 10mm x 4mm
• 2100mm x 15mm x 4mm
• 2100mm x 20mm x 4mm
• Performance Testing:
• 10mm and 15mm tested for 30 minutes to BS476 Part 22
• 20mm tested for 60 minutes to BS476 Part 22
• All sizes tested to EN1634-1
• Endurance tested for 100,000 open/closed cycles
• Packaging: Supplied in a convenient plastic sleeve for easy handling and installation.

Conclusion

Ensure the safety and integrity of your door assemblies with our high-performance intumescent fire seal. Designed for maximum protection, this product is a crucial component in fire safety compliance.
