Intumescent Fire and Smoke Seal

Introducing our advanced intumescent graphite-based fire and smoke seal, expertly designed for door assemblies. Encased in a durable PVC sleeve, this innovative seal is engineered to provide maximum protection in the event of a fire.

Key Features

• Intumescent Action: In the event of a fire, the seal expands significantly, effectively sealing the gap around the door to prevent the spread of smoke and flames.
• Certifications: Our product is Certifire approved and has undergone rigorous fire testing to meet the standards of BS 476: Part 22, BS EN 1634-1, and smoke testing to BS 476: Part 31.1.
• Versatile Sizes: Available in a variety of sizes to suit different door assemblies:
• • 10mm x 4mm (Fire & Smoke) FD30
  • 15mm x 4mm (Fire & Smoke) FD30 & FD60
  • 20mm x 4mm (Fire & Smoke) FD60

Product Specifications

• Dimensions:

• 2100mm x 10mm x 4mm
• 2100mm x 15mm x 4mm
• 2100mm x 20mm x 4mm
• Fire Testing:
• Fire Tested for 30 minutes with 10mm and 15mm to BS 476: Part 22
• Fire Tested for 60 minutes with 20mm to BS 476: Part 22
• Smoke Testing:
• Smoke Tested to BS 476: Part 31.1
• Additional Testing:
• Tested to BS EN1634-1
• Endured 100,000 open/closed cycles
• Installation: Supplied in a convenient plastic sleeve for easy installation.

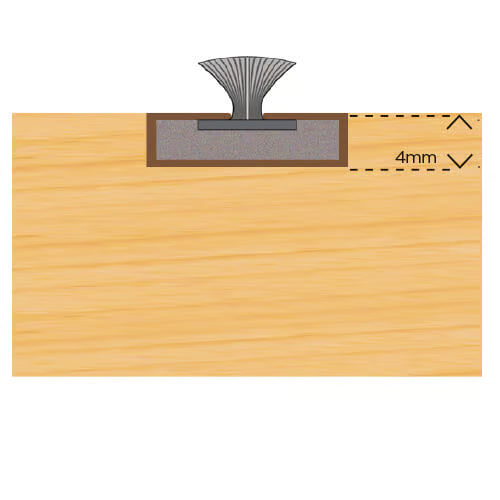

• Height of Pile: The brush strip has a height of 6.5mm, with 4.5mm projecting above the height of the fire seal, ensuring optimal sealing performance.

Conclusion

Ensure the safety and compliance of your door assemblies with our high-quality fire and smoke seal. With its robust design and proven performance, it’s the ideal choice for enhancing fire safety in any building.
