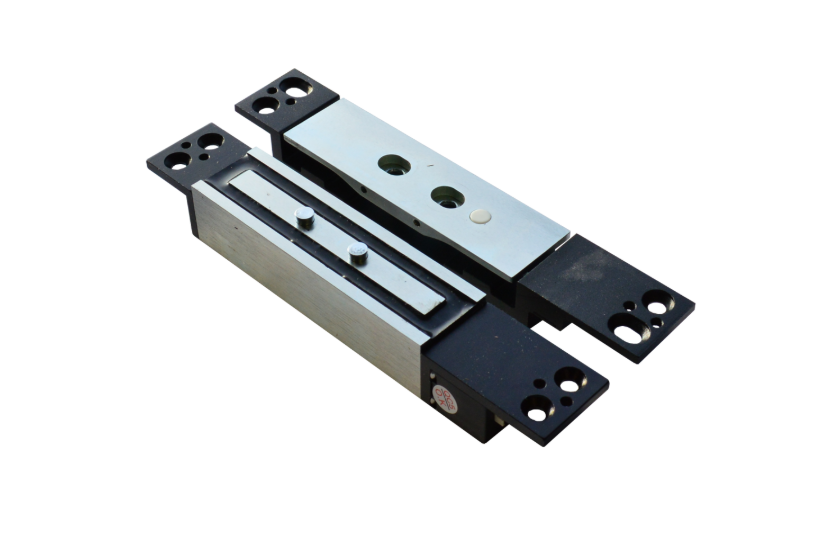

ICS Fire Rated Micro Shearlock Shear Magnet

Introducing the FR-SL500 Micro Shear Lock from ICS, a robust solution designed for fire safety and security. This innovative lock has been rigorously fire tested to BS EN 1634 standards, making it an ideal choice for both FD30 and FD60 fire door applications.

With an impressive holding force of up to 1,200Kg (2,600lbs) in shear, the FR-SL500 ensures maximum security. It also features an adjustable locking time delay ranging from 0.5 to 25 seconds, allowing for customizable operation to meet your specific needs.

To ensure fire door suitability, remember to install the lock with the included intumescent pack.

Features

• Monitored operation for enhanced security
• N.C/N.O/Com compatibility
• Adjustable locking time delay (0.5 to 25 seconds)
• High holding force of up to 1,200Kg (2,600lbs) in shear
• Mortice fitting for seamless integration

Size Specifications

• Magnet Length: 137mm
• Plate Depth: 25mm
• Plate Height: 30mm
• Plate Width: 182mm

This lock combines safety, reliability, and versatility, making it a top choice for your fire door security needs.
