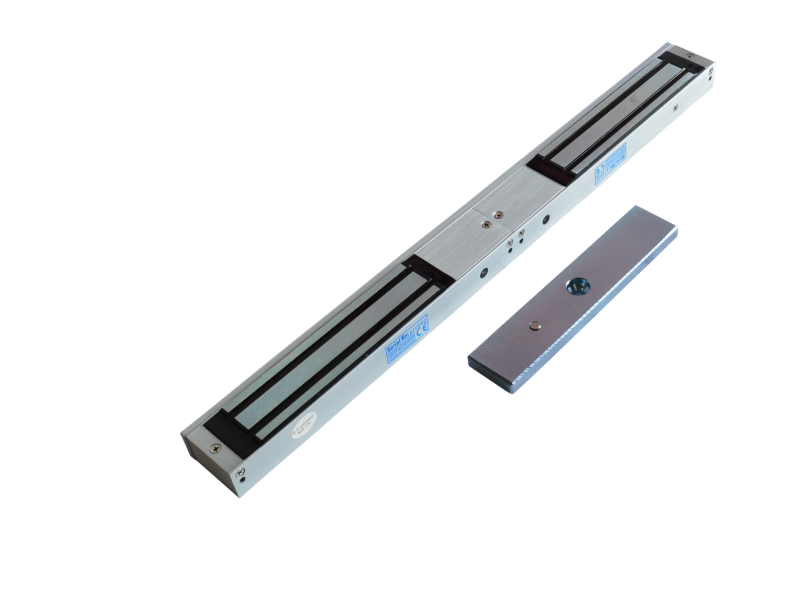

ICS Fire Rated Double Mini Magnet

Introducing the Fire Rated Double Mini Magnet by ICS Security, designed specifically for FD30 and FD60 fire doors. This robust magnet operates at either 12 or 24 Vdc, ensuring versatility for various applications. Available in both monitored and non-monitored options, it boasts an impressive holding force of 272kg (600lbs) and can function effectively in temperatures ranging from -10°C to 55°C (14°F to 131°F).

Key Features:

• Operating Voltage: 12 or 24 Vdc
• Monitoring Options: Available in monitored or non-monitored
• Material: Durable aluminium housing
• Safety: Fail-safe design
• Holding Force: 272kg (600lbs)

Specifications:

• Magnet Depth: 26mm
• Magnet Height: 42mm
• Magnet Length: 500mm
• Plate Depth: 11mm
• Plate Height: 38mm
• Plate Width: 180mm

This fire-rated magnet is engineered for reliability and safety, making it an ideal choice for securing fire doors in various environments.
