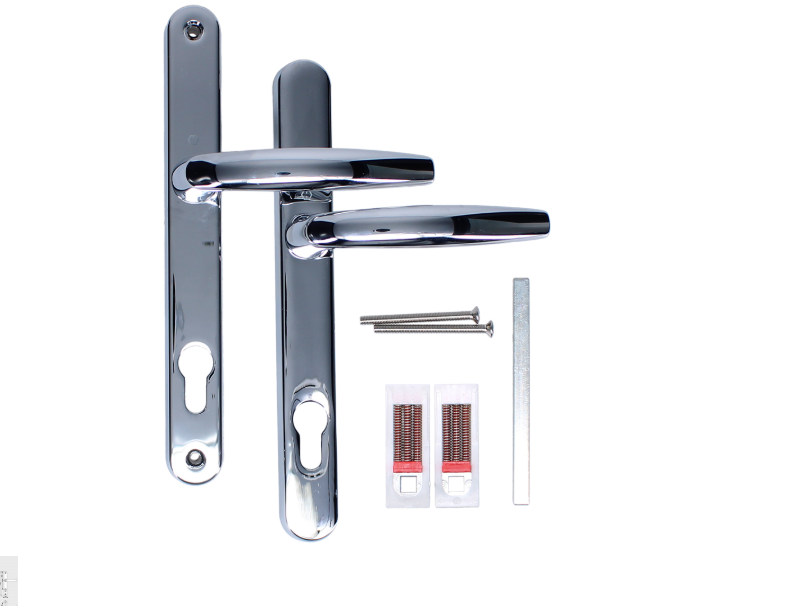

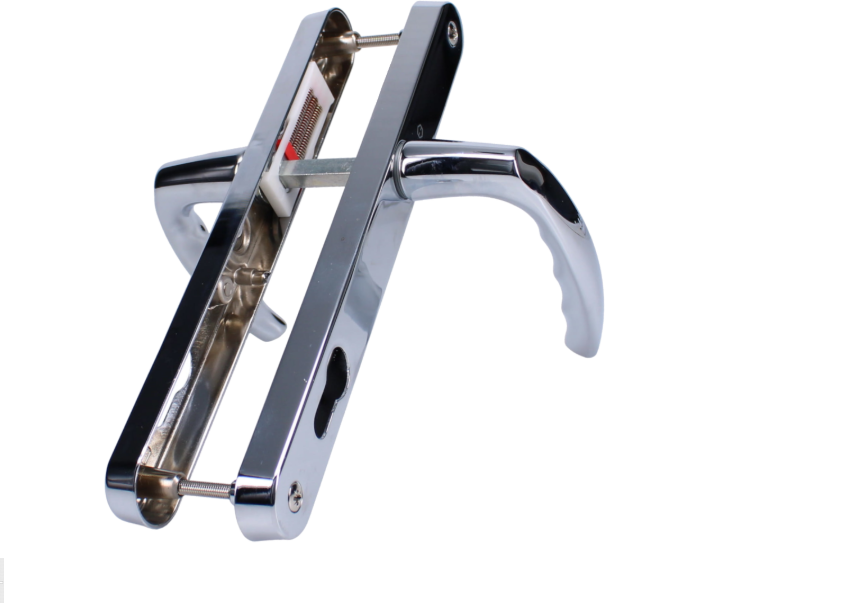

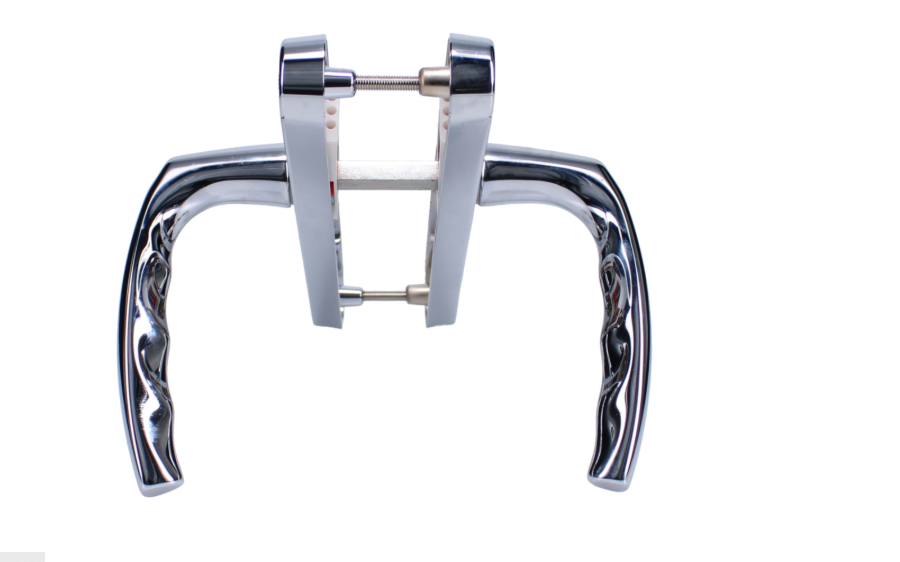

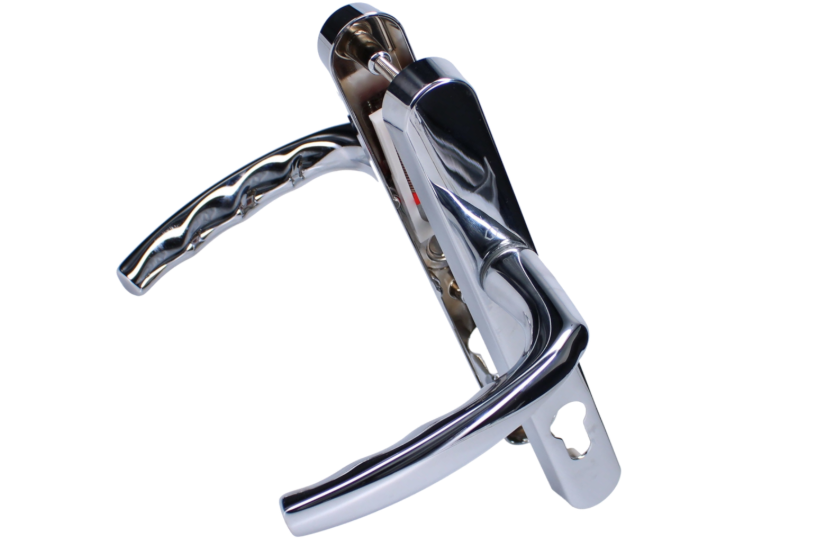

Introducing the Hoppe Atlanta series of brass door furniture, meticulously crafted to complement multipoint locks with 92mm centres. This elegant product features a sleek 30mm narrow backplate and comes equipped with spring cassettes and an 8mm spindle, making it an ideal choice for profile doors with a thickness ranging from 40mm to 45mm.
Features
Material: Brass
Sprung Furniture: Yes
Suitable Door Thickness: 40mm - 45mm
Key Hole Distance: 92mm
Concealed Fixing: Yes
Narrow Backplate Dimensions: 245mm (L) x 30mm (W)

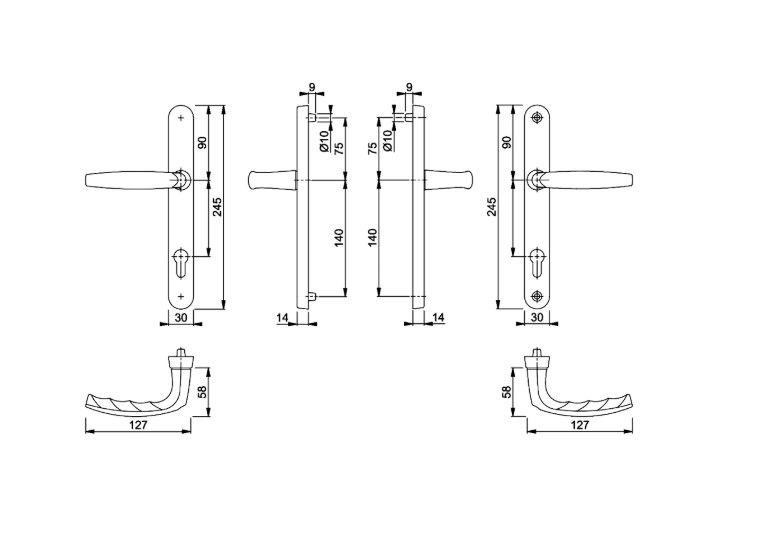

Size Specifications
Centres: 92mm
Screw Centres: 215mm
Spindle Size: 8mm
Door Thickness Range: 40mm to 45mm
Handle Length: 127mm
Handle Projection: 58mm
Plate Depth: 14mm
Plate Height: 245mm
Plate Width: 30mm
Finish
Polished Chrome
Elevate your door hardware with the sophisticated design and functionality of the Hoppe Atlanta series, ensuring both style and security for your home.
