Hookbolt GenuineInvincible Latch and Hookbolt Genuine Multipoint Gearbox - Lift Lever or Split Spindle Multipoint Gearbox - Lift Lever or Split Spindle

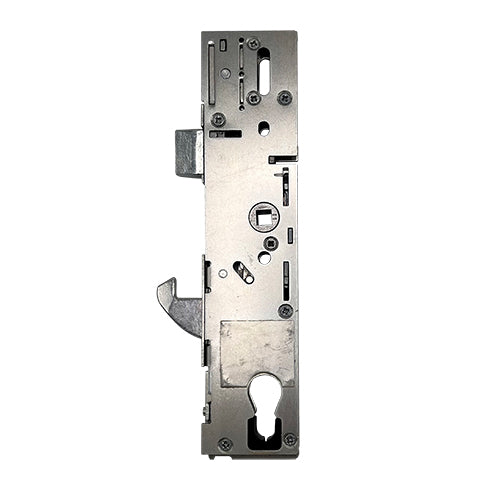

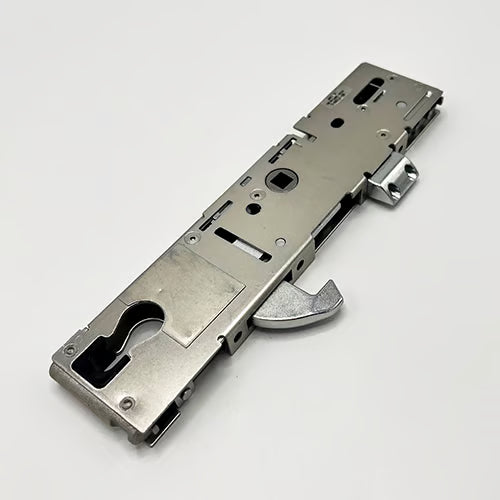

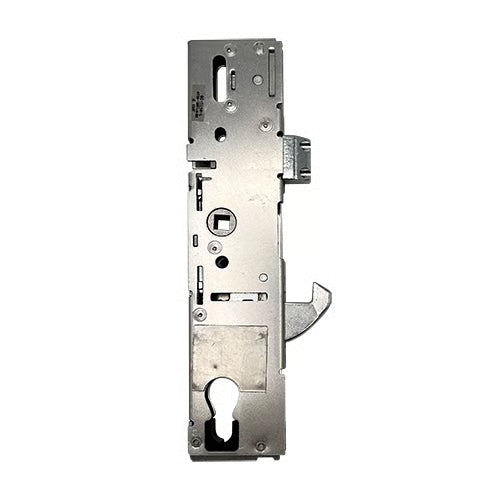

Product Overview: ERA Multipoint Door Lock Gearbox

The ERA multipoint door lock gearbox is designed for versatility and security, accommodating ERA Invincible shaped cylinders and a converter piece for euro cylinder compatibility. With a 35mm backset featuring a hook bolt, this gearbox stands out for its unique square design, devoid of corner cut-outs.

Key Features:

• Dimensions:

  • Overall Length: 221mm
  • Width: Backset + 18mm
  • Available Backsets: 30mm, 35mm, or 45mm (all with identical dimensions)

• Locking Mechanisms:

  • Options include a classic deadbolt, Invincible cylinder cut out, or Vectis 5 lever mechanism.

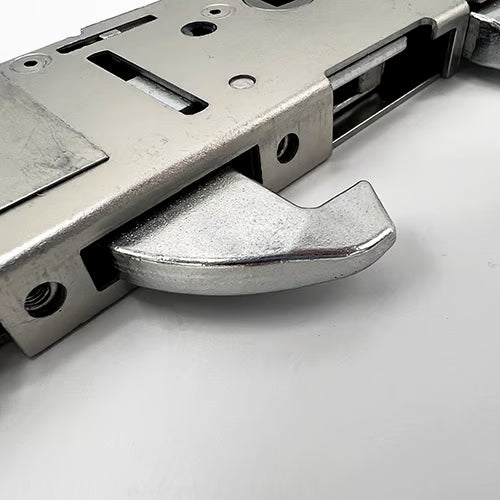

  • Choice between deadbolt or hook bolt (throws upward).
  • British Standard Fortress invincible gearbox available with hardened drill plates for enhanced security.

• Interchangeability:

  • Most ERA gearboxes can be interchanged. If a hook lock is required instead of a deadbolt or a Vectis locking mechanism, contact us for custom orders.

• Latch and Bolt Specifications:

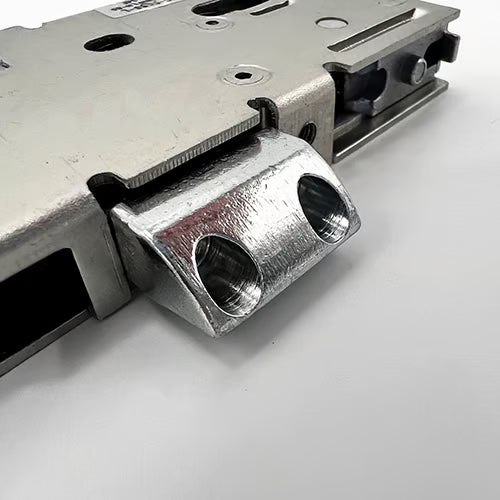

  • Latch Height: 24mm (with distinctive screws)
  • Deadbolt Height: 30mm
  • Distance Between Latch and Deadbolt: 61mm
  • Mounting: Secured with 4 screws (uncommon for multipoint locks)
    • Screw Hole Measurements:
      • 1st to 2nd: 37mm
      • 2nd to 3rd: 85mm
      • 3rd to 4th: 43mm

• Backset Measurement:

  • Allow 2-3mm for the faceplate; a 35mm backset gearbox measures 32mm when not fixed.

Associated Products: We offer a comprehensive range of products for ERA Hookbolt gearboxes, including multipoint door locks, keeps, spindles, handles, and accessories.

Locking and Unlocking Instructions:

To Lock the Door:

1. Close the door to automatically engage the latch.
2. Lift the handle to engage additional locking points.
3. Throw the deadbolt and lock the system by turning the key (some brands may throw the deadbolt by lifting the handle).

To Unlock the Door:

1. Turn the key to unlock the system.
2. Push the handle down to disengage the locking points.
3. A quarter turn of the key will retract the latch.

Product Specifications:

• Manufacturer: ERA
• Backset: 35mm (How to measure the backset?)
• Centres PZ: 92mm (How to measure the centres?)
• Case Height: 220mm
• Case Width: 50mm
• Copy/Genuine: Genuine
• Cylinder Type: Euro
• Handing: Not Handed
• Main Gearbox: Latch & hookbolt
• Spindle: Split 8mm
• Operation: Lift Lever or Split Spindle Nightlatch (What is the operation?)
• Packaging: Supplied in singles

For any inquiries or custom orders, please reach out to us!
