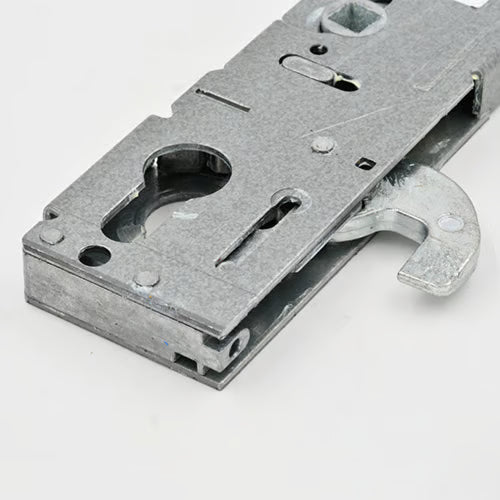

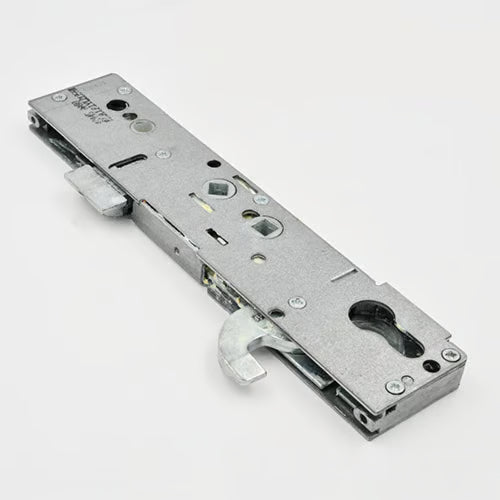

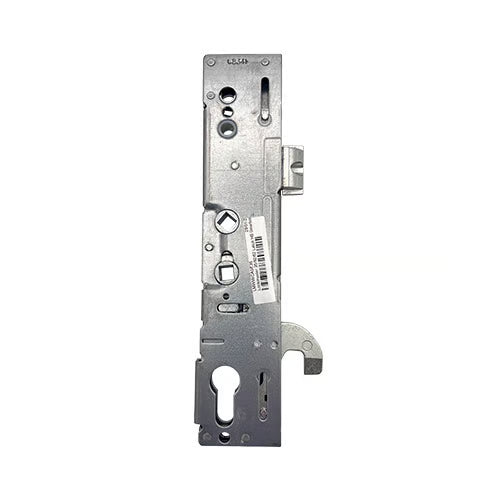

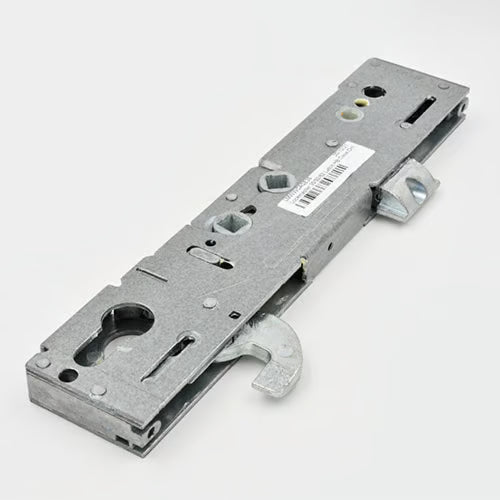

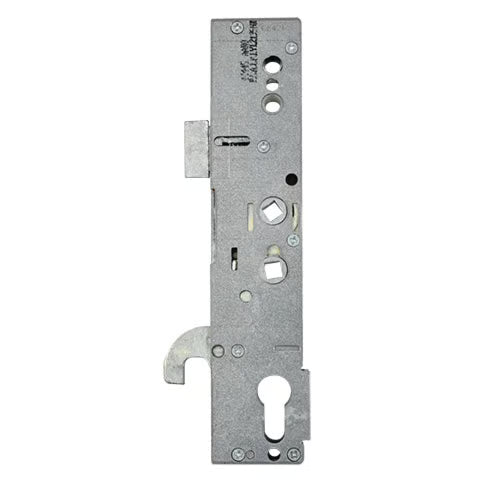

Hookbolt Genuine Mulitpoint Gearbox - Lift Lever or Double Spindle

Product Overview: Lockmaster Key Turn Gearbox

The Lockmaster Key Turn gearbox is designed for enhanced security and functionality in multipoint locking systems. This gearbox is characterized by its 35mm backset and features both a latch and deadbolt mechanism, ensuring robust locking capabilities.

Specifications:

• Type: Double spindle (92/62PZ)
• Backset: Available in 45mm only for the Key Turn version
• Height: 228mm (Note: Similar in style to Safeware, which measures 255mm)
• Spring Mechanism: Unsprung, not suitable for use with unsprung handles
• Compatibility: Specifically designed for old-style Securistyle multipoints

Design Features:

The Yale Lockmaster Key Turn gearbox stands out from regular Lockmaster gearboxes due to its unique design, featuring a corner of the lock removed for a distinct appearance.

Installation Notes:

• Gearboxes are secured to faceplates with three screws.
• Interchanging with other Lockmaster locks is not possible.
• When measuring the backset, remember to account for an additional 2-3mm for the faceplate. For instance, a gearbox with a 28mm backset will measure 25mm when not attached to the strip.

Associated Products:

We offer a comprehensive range of products compatible with Lockmaster Key Turn gearboxes, including:

• Multipoint door locks
• Keeps
• Spindles
• Handles
• Accessories

Operation:

The Lockmaster Key Turn gearbox operates with a lift lever or double spindle mechanism, providing versatility and ease of use for various door applications.

For further inquiries or to explore our range of associated products, please feel free to reach out!

To ensure optimal performance and security with your Lockmaster Key Turn gearbox, it's essential to understand the operation and specifications clearly.

Operation Details:

The Lockmaster Key Turn gearbox operates using a lift lever or double spindle nightlatch mechanism. This design allows for smooth engagement and disengagement of the locking system, providing ease of use while maintaining high security.

Measuring Guidelines:

• Backset Measurement: To measure the backset, take a ruler and measure the distance from the edge of the door to the center of the keyhole. For the Lockmaster, ensure this distance is 35mm.

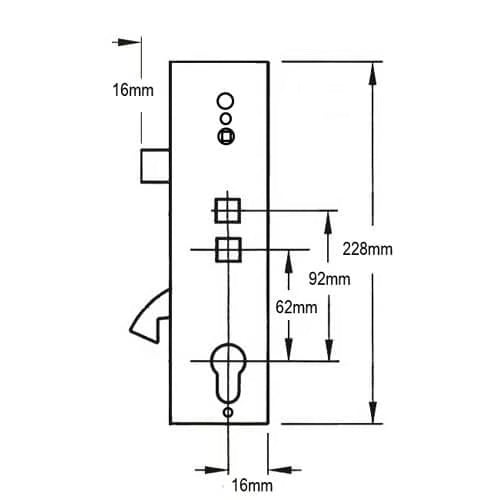

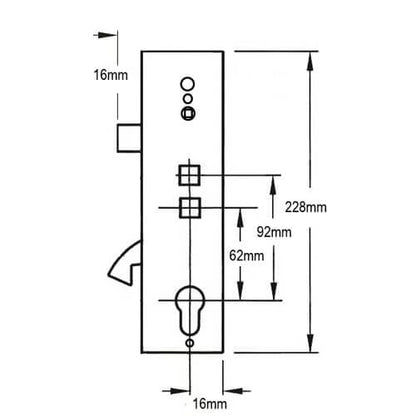

• Centres PZ Measurement: The PZ measurement refers to the distance between the center of the keyhole and the center of the handle spindle. For this gearbox, you should measure 92mm for the top hole and 62mm for the bottom hole.

Product Specifications:

• Manufacturer: Lockmaster

• Backset: 35mm

• Centres PZ: 92mm/62mm

• Case Height: 228mm

• Case Width: 51mm

• Copy/Genuine: Genuine

• Cylinder Type: Euro

• Handing: Not Handed

• Main Gearbox: Latch & hookbolt

• Spindle: Double 8mm

• Packaging: Supplied in singles

Understanding these specifications and operational guidelines will help you effectively install and utilize your Lockmaster Key Turn gearbox, ensuring both security and functionality in your multipoint locking system. If you have any further questions or need assistance, feel free to reach out!
