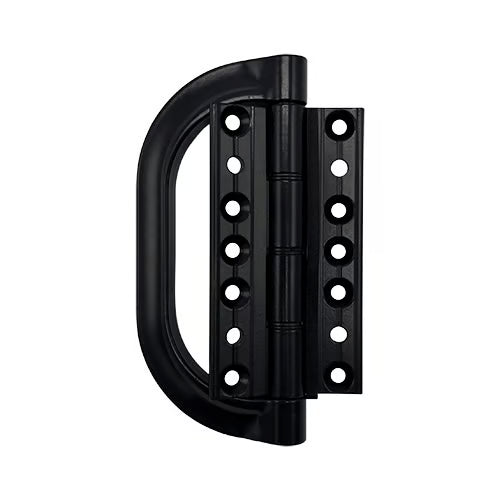

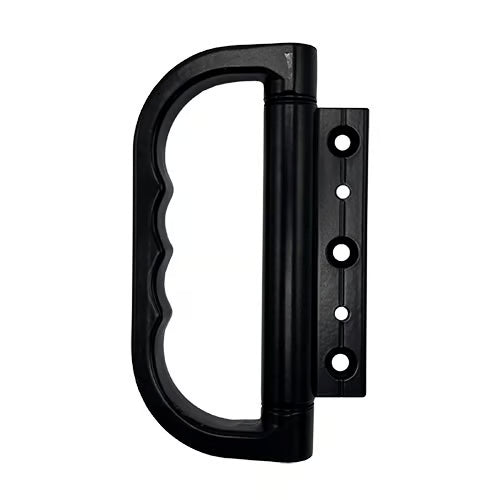

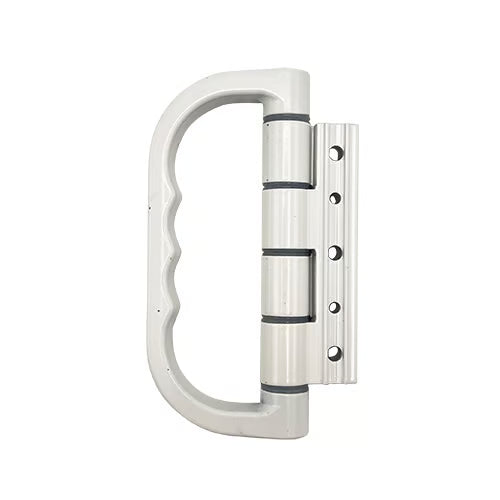

Introducing our premium hinge with a pull handle, specifically designed to complement Caldwell bi-fold doors. This versatile hinge is available in both outward and inward opening configurations, ensuring a perfect fit for your needs.

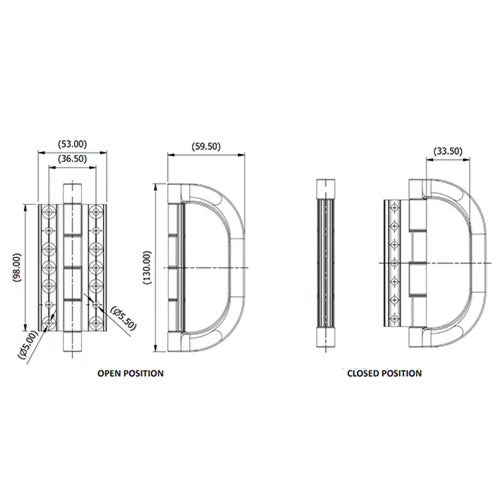

Key Features
Hinge Height: 98mm
Open Width: 52mm
Knuckle Diameter: 13mm
Fixing Holes: 7 total, with 5 countersunk
Fixing Hole Measurements:
Top to Bottom: 85mm
Top to Middle: 42.5mm
Middle to Bottom: 42.5mm
2nd to 4th: 57mm
3rd to 5th: 28mm
Screw Width Centres: 36.5mm
Handle Depth: 58mm
Overall Height: 130mm
This hinge is engineered for durability and ease of installation, making it an ideal choice for enhancing the functionality and aesthetic of your bi-fold doors.
