H650 Passive Genuine Multipoint Gearbox - Lift Lever

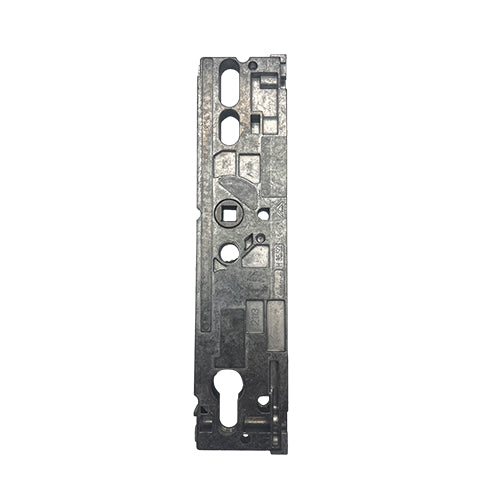

Product Overview: Roto H650 Passive Gearboxes

The Roto H650 passive gearboxes are designed to provide enhanced functionality while maintaining the same dimensions as the H600 series. These gearboxes are specifically tailored for single spindle operation and are available with a 35mm backset.

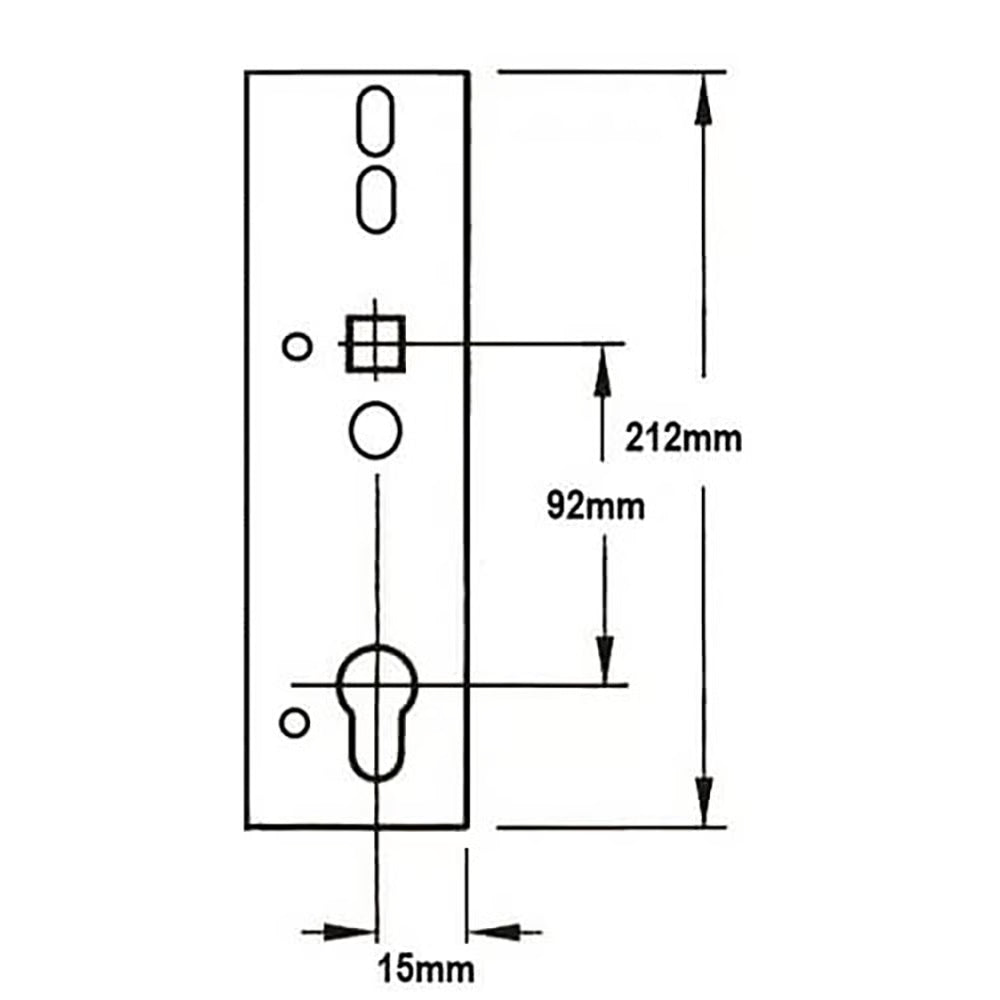

Dimensions and Specifications:

• Overall Height: 212mm
• Backset Measurement: 35mm (Note: Allow 2-3mm for the faceplate, resulting in a 32mm measurement when not fixed)
• Latch Height: 29mm
• Deadbolt Height: 30mm
• Distance Between Latch and Deadbolt: 58mm
• Faceplate Screw Configuration:
  • Top to Middle Screw: 70mm
  • Middle to Bottom Screw: 125mm

Market Availability:

While European markets offer locks with backsets ranging from 25mm to 80mm, the UK primarily features locks with 35mm and 45mm backsets.

Associated Products:

We also provide a comprehensive selection of products compatible with the Roto H650 gearboxes, including:

• Multipoint door locks
• Keeps
• Spindles
• Handles
• Accessories

Operational Features:

• Operation Type: Lift lever
• Manufacturer: Roto
• Centres PZ Measurement: 92mm
• Case Width: Backset + 15mm
• Copy/Genuine: Genuine
• Cylinder Type: Euro
• Handing: Not Handed
• Main Gearbox Functionality: Latch & deadbolt
• Spindle Size: Single 8mm
• Packaging: Supplied in singles

For further assistance on measuring backsets or understanding operational features, feel free to reach out!
