H650 Latch Deadbolt 4 Mushrooms Lift Lever Multipoint Door Lock

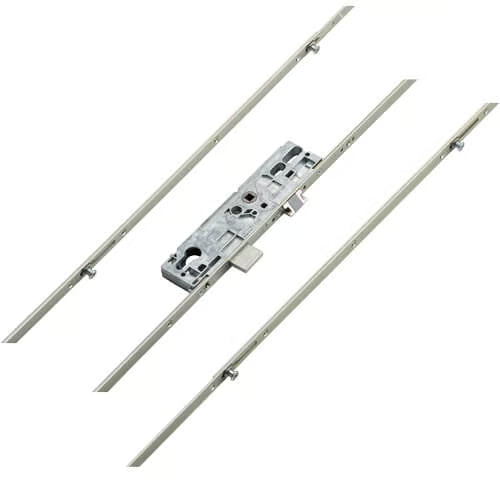

Product Overview: Roto H650 Multipoint Door Lock

The Roto H650 multipoint door lock is a state-of-the-art security solution featuring a robust design with 4 mushrooms, 1 deadbolt, and 1 latch. This innovative lock is designed to replace the older 4 roller Roto locks, ensuring enhanced security while maintaining compatibility with existing door structures, although some adjustments may be necessary for keeps.

Key Features:

• Latest Design: The H650 is Roto's newest lever-operated lock, available in various configurations, primarily sold in Europe. This lock is manufactured in Germany, ensuring high-quality standards.
• Compatibility: The H650 replaces the H600 model, with locking points remaining in the same positions. However, it is important to note that older Roto locks, often referred to as "Mk2" or MVD locks, may require modifications for proper installation.
• Locking Mechanism: The H650 features a single spindle operation and is available in 35mm or 45mm backsets. The gearbox dimensions are 212mm high plus the backset, with specific measurements for the latch and deadbolt.
• Whisper Latch: A standard feature of the H650 is the "whisper latch," designed with a central plastic component to ensure quiet door closure. While other latch types may exist, they are rare.

Installation and Identification:

Identifying a Roto lock is straightforward, as the name is stamped on the faceplate. Once removed from the door, measure the locking points to confirm the required model. Be cautious of the Elite range, which may offer alternatives to older Mk2/MVD locks but often requires additional roller keeps.

Operation Instructions:

To Lock the Door:

1. Lift the handle upwards to engage the locking points.
2. Secure the locking points and main deadbolt (if applicable) by turning the key.

To Unlock the Door:

1. Turn the key to unlock the system.
2. Push the handle downwards to disengage the locking points and retract the latch.

Product Specification

• Manufacturer: Roto
• Spindle Size: 8mm
• Mushrooms: 4
• Deadbolts: 1
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Spindle: Single 8mm
• Handing: Non handed
• Distance Between Inner Locking: 750mm
• Distance Between Outer Locking: 1480mm
• Height: 2200mm
• Top Mushroom to Spindle: 740mm
• Bottom Mushroom to Spindle: 740mm
• Door Material: UPVC, Aluminium

Measuring Guidelines

To ensure accurate measurements for your Roto H650 multipoint door lock, follow these guidelines:

Backset Measurement: To measure the backset, take a ruler and measure the distance from the edge of the door to the center of the lock cylinder. This distance is crucial for ensuring the lock fits properly within the door frame.

Centres PZ Measurement: The PZ measurement refers to the distance between the center of the keyhole and the center of the handle. To measure this, use a tape measure to find the distance from the center of the keyhole to the center of the handle on the door.

Faceplate Measurement: To measure the faceplate, remove the existing lock and measure the width and height of the faceplate area on the door. This will help you select the correct faceplate option from the drop-down menu.

Operation Type: The operation type can vary based on the specific use case of the lock. Ensure to select the appropriate operation from the drop-down based on whether it will be used for residential or commercial purposes.

By following these measurement guidelines, you can ensure that your Roto H650 lock is installed correctly and functions optimally.
