H650 Latch Deadbolt 2 Hooks Option 2 Lift Lever Single Spindle Multipoint Door Lock

Product Overview: Roto H650 Multipoint Door Lock

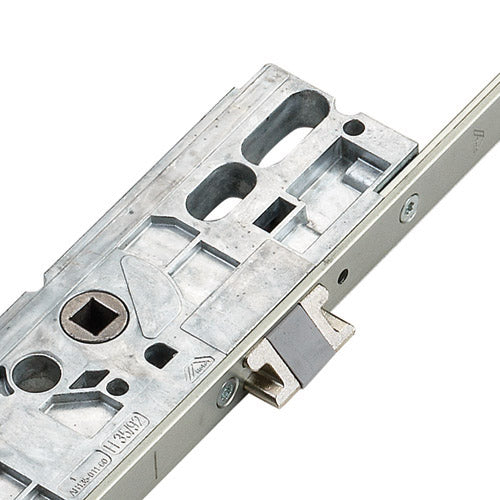

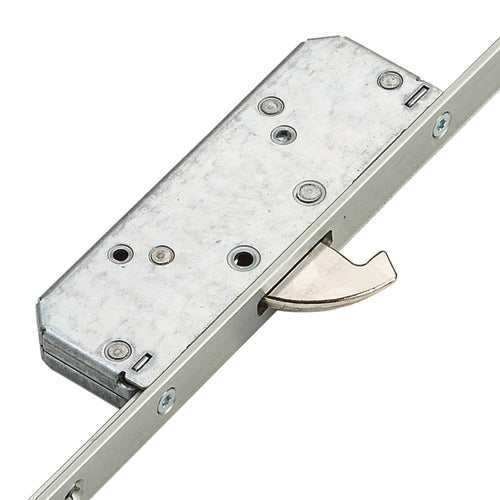

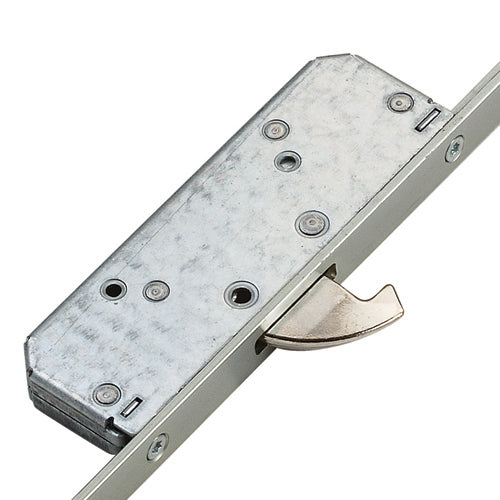

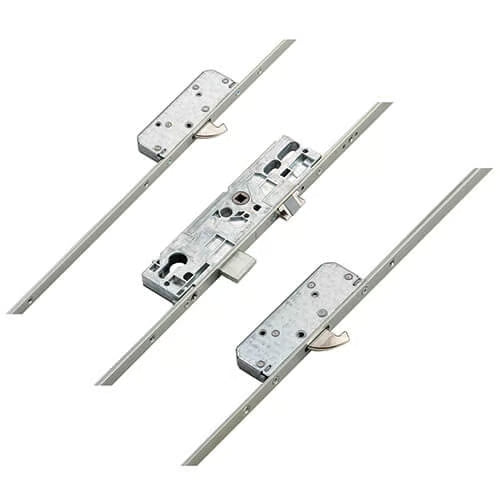

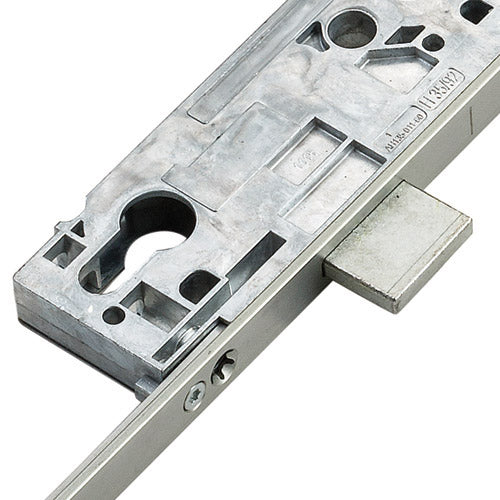

The Roto H650 multipoint door lock is designed for enhanced security and ease of use, featuring a robust configuration that includes 2 hooks, 1 deadbolt, and 1 latch. This lever-operated lock is the latest addition to Roto's lineup, manufactured in Germany, and available in various configurations, primarily for the European market.

Key Features:

• Replacement for H600: The H650 is a direct successor to the H600, maintaining the same locking point positions for seamless upgrades. However, it is important to note that the H600 replaced a range of older Roto locks, which may require modifications to the door if being replaced.
• Locking Mechanism: The H650 utilizes a single spindle operation and is available in 35mm and 45mm backsets. The gearbox dimensions are consistent with the H600 series but include internal upgrades for improved performance.
• Whisper Latch Technology: Standard on the H650 is the "whisper latch," designed with a central plastic component to ensure quiet door closure. While other latch types may exist, they are rare.
• Easy Identification: Identifying a Roto lock is straightforward, as the model name is stamped on the faceplate. Always check the measurements of the locking points after removal to confirm the correct model.

Specifications:

• Gearbox Dimensions: 212mm high + backset (35mm or 45mm) + 15mm
• Latch Height: 29mm
• Deadbolt Height: 30mm
• Distance Between Latch and Deadbolt: 58mm
• Screw Measurements: Top to middle screw - 70mm; Middle to bottom screw - 125mm

Operation Instructions:

To lock the door:

1. Lift the handle upwards to engage the locking points.
2. Turn the key to secure the locking points and the main deadbolt (if applicable).

To unlock the door:

1. Turn the key to unlock the system.
2. Push the handle downwards to disengage the locking points and retract the latch.

Conclusion:

The Roto H650 multipoint door lock combines advanced security features with user-friendly operation, making it an excellent choice for both residential and commercial applications. Ensure compatibility with existing door configurations and enjoy the peace of mind that comes with enhanced security.

Product Specification

• Manufacturer: Roto
• Spindle Size: 8mm
• Hooks: 2
• Deadbolts: 1
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Spindle: Single 8mm
• Handing: Non handed
• Distance Between Inner Locking: 1490mm
• Height: 2200mm
• Top Hook to Spindle: 730mm
• Bottom Hook to Spindle: 760mm
• Door Material: UPVC, Aluminium, Timber, Composite

Measuring Guidelines

Backset Measurement: To measure the backset, take a ruler and measure the distance from the edge of the door to the center of the lock cylinder. This measurement is crucial for ensuring the lock fits properly.

Centres PZ Measurement: To measure the centres (PZ), measure the distance from the center of the keyhole to the center of the handle hole. This ensures that the lock aligns correctly with the door handle.

Faceplate Measurement: To measure the faceplate, remove the existing lock and measure the width and height of the faceplate. This will help you select the correct faceplate from the drop-down options.

Operation Type: The operation type refers to how the lock functions. Ensure to select the appropriate option from the drop-down based on your specific needs and door configuration.
