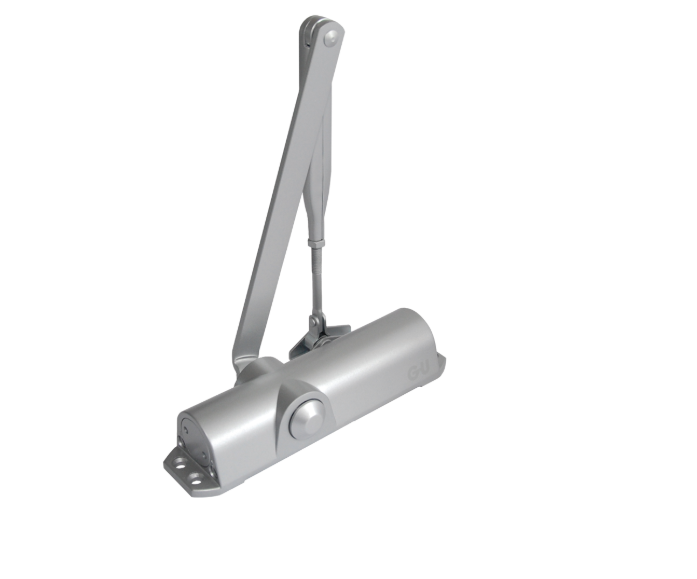

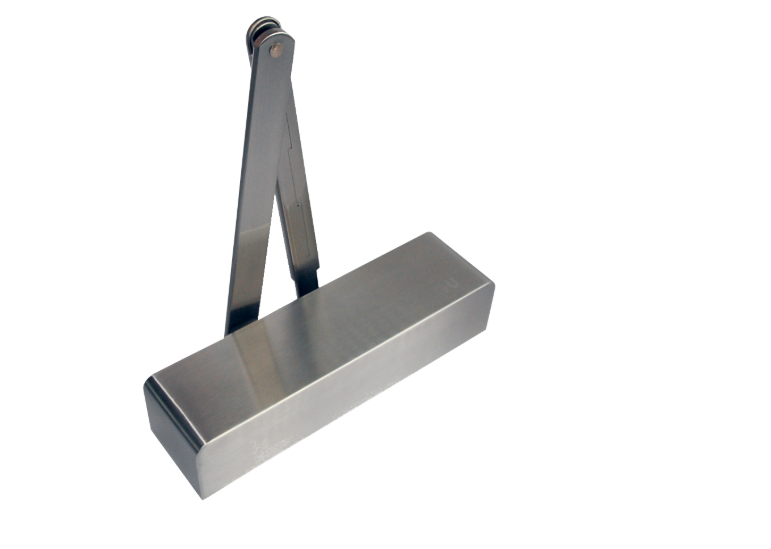

GU L-10002-02 Overhead Door Closer Size 2 - 4

The GU L-0002-02 is an exceptional door closer designed for both functionality and safety. It comes with a sleek cover, ensuring a neat and tidy finish, making it ideal for fire-rated single and double leaf doors. This versatile closer can be mounted on either right or left-opening doors, providing flexibility in installation.

With an adjustable strength size ranging from 2 to 4, it accommodates various door weights and widths, supporting doors weighing up to 80 kg and widths between 850 mm to 1100 mm. The closer is engineered for durability, having been tested for 500,000 closing cycles, ensuring long-lasting performance.

Specifications:

• Length: 22 cm
• Body Height: 220 mm
• Body Width: 59 mm
• Max Door Weight: 80 kg
• Max Door Width: 850 mm to 1100 mm
• Strength Size: 2 to 4
• Opening Angle Max: 105°
• Projection: 42 mm

Features:

• Durability tested to 500,000 cycles
• FD120 fire approval for timber doorsets
• FD240 approval for metal doorsets in standard and parallel arm configurations
• Power size EN 2-4 determined by template mounting position
• Suitable for use on fire and smoke doors
• Designed for fire-rated single and double leaf doors with standard door mount pull side application

This door closer not only meets stringent safety standards but also ensures reliable operation, making it a perfect choice for environments where fire safety is paramount.
