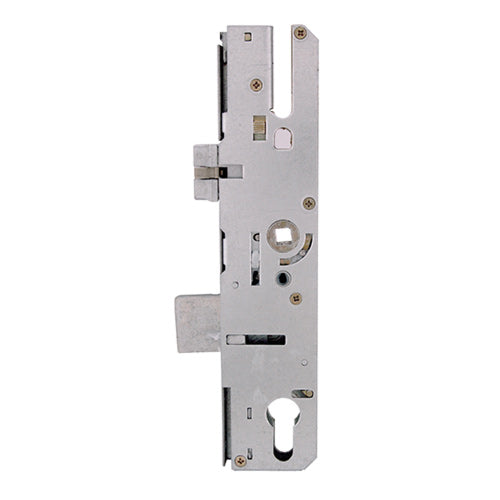

GTS MK3 Latch & Dead Bolt Genuine Multipoint Gearbox - Lift Lever

Product Information
MK3 Serrated Latch Reversal Button

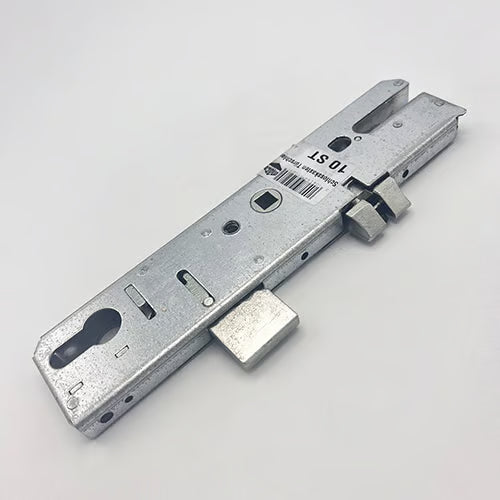

The G-TS lock gearboxes have been manufactured in various versions over the years, making it crucial to select the correct one, as they are not interchangeable. The current G-TS lock began production in 2010 and features different screw fixing positions compared to previous versions.

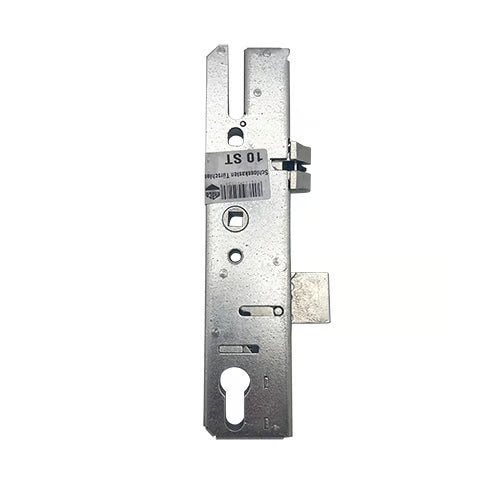

A reliable way to identify whether you have the new or old version is by checking for the square latch reversal button located next to the latch on the new version.

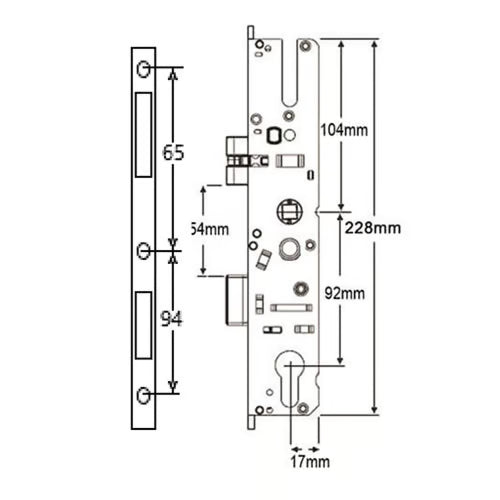

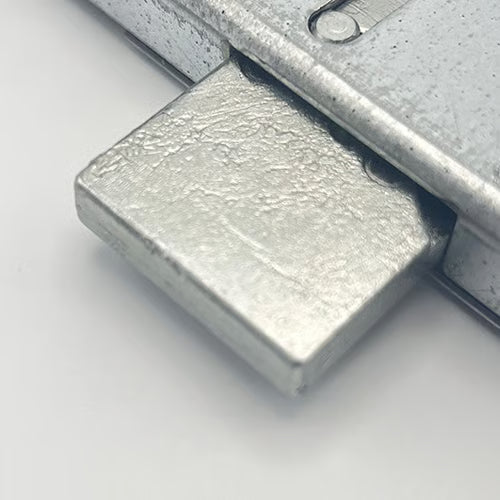

Maco G-TS gearboxes are designed with lift lever functionality. They measure 228mm in height and have a backset of 35mm, with a width of 18mm. The centres (PZ) measure 92mm. The latch height is 29mm, the deadbolt height is 30mm, and the distance from the bottom of the latch to the top of the deadbolt is 54mm.

These gearboxes are secured to their faceplates with three screws. The measurement from the top screw to the middle screw is 57mm, while the distance from the middle screw to the bottom screw is 180mm.

We offer a comprehensive range of associated products for Maco G-TS gearboxes, including multipoint door locks, keeps, spindles, handles, and various accessories.

To Lock the Door

1. Lift the handle upwards to engage the locking points.
2. Secure the locking points and main deadbolt (if present) by turning the key.

To Unlock the Door

1. Unlock the system by turning the key.
2. Push the handle downwards to disengage the locking points and retract the latch.

Product Specification

• Manufacturer: Maco
• Backset: 35mm
• Centres PZ: 92mm
• Case Height: 228mm
• Case Width: 53mm
• Copy/Genuine: Genuine
• Cylinder Type: Euro
• Handing: Not Handed
• Main Gearbox: Latch & deadbolt

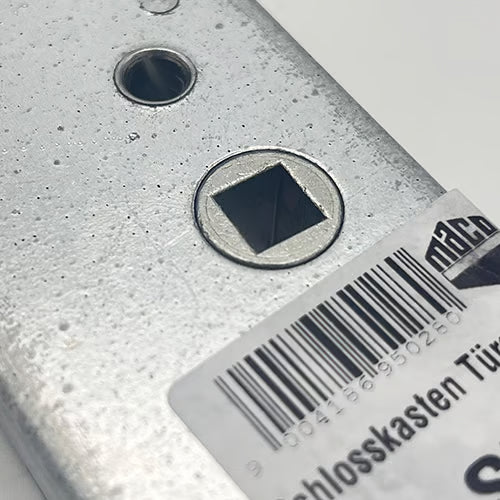

• Spindle: Single 8mm
• Operation: Lift Lever
• Packaging: Supplied in singles

How to Measure the Backset?
To measure the backset, take a ruler and measure the distance from the edge of the door to the center of the keyhole or cylinder.

How to Measure the Centres?
To measure the centres (PZ), measure the distance from the center of the keyhole to the center of the handle spindle.

What is the Operation?
The lift lever operation allows you to lift the handle to engage the locking mechanism, providing enhanced security and ease of use.
