GTS Copy Multipoint Gearbox - Serrated Latch Reversal Button - Lift Lever

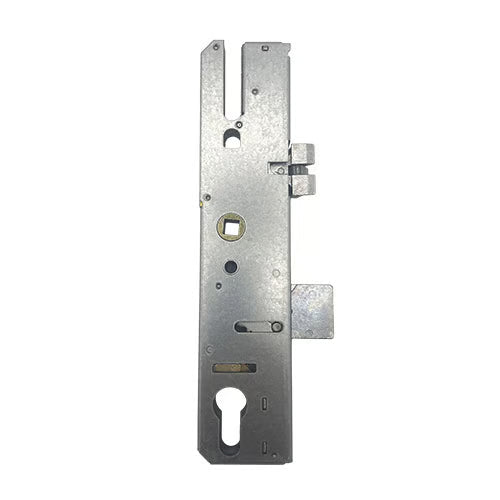

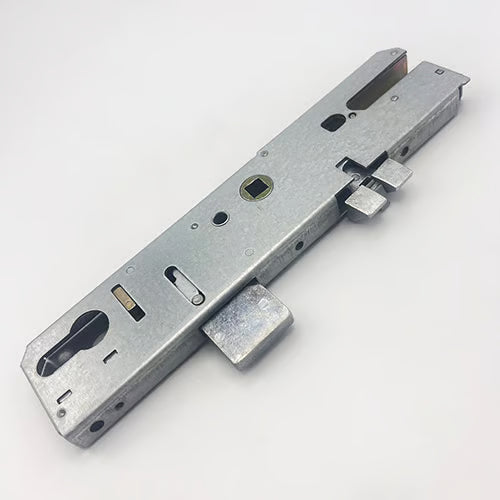

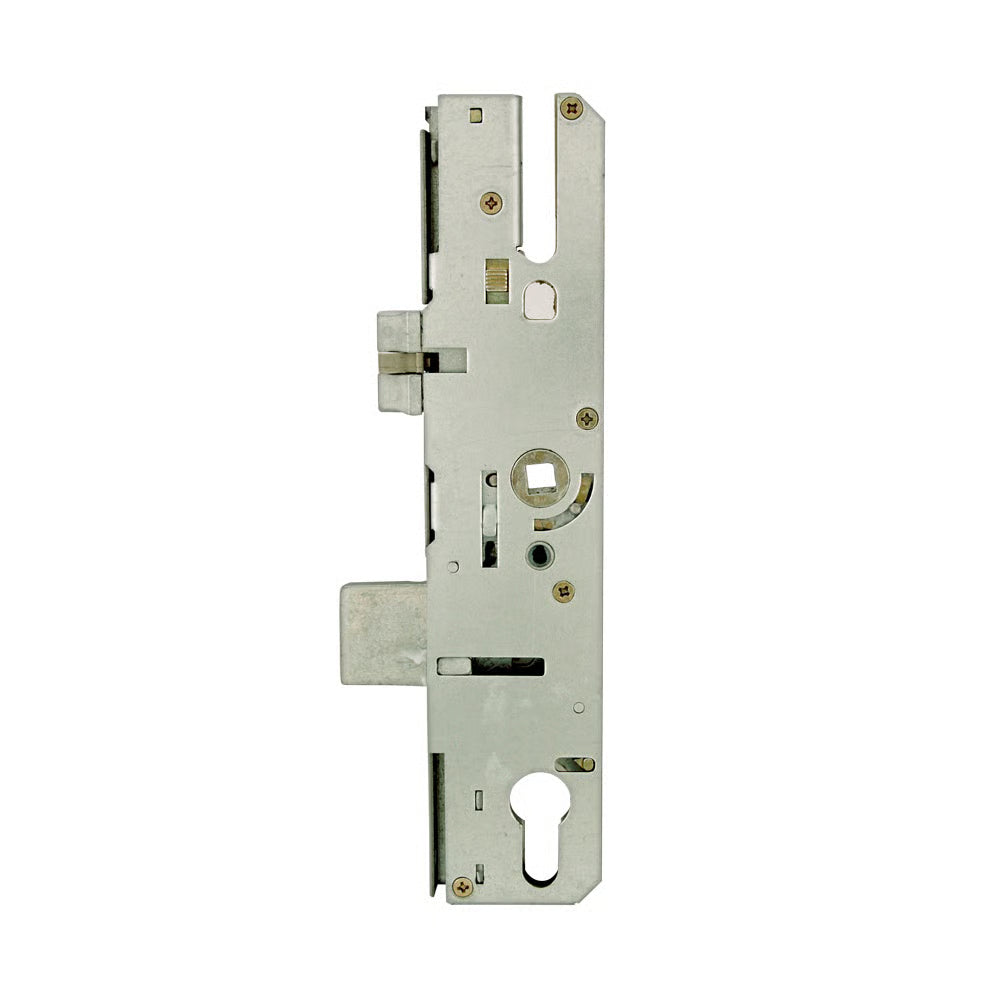

 Maco GTS MK3 Copy Serrated Latch Reversal Button Multipoint Gearbox

The Maco GTS MK3 Copy Serrated Latch Reversal Button Multipoint Gearbox is designed for enhanced security and functionality in your doors. With a 35mm backset, this gearbox is ideal for various applications, ensuring a reliable locking mechanism.

Key Features:

• Compatibility: The G-TS lock gearboxes have evolved over the years, and it’s crucial to choose the correct version as they are not interchangeable. The current model has been in production since 2010 and features distinct screw fixing positions compared to older versions.
• Identification: To differentiate between the new and old versions, look for the square latch reversal button located next to the latch on the new model.

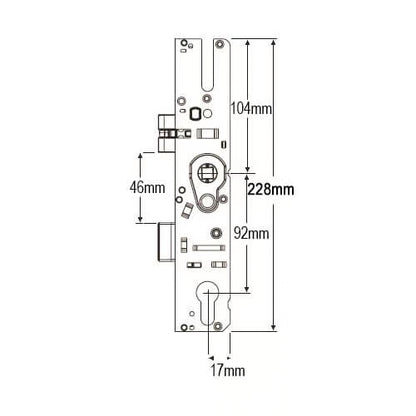

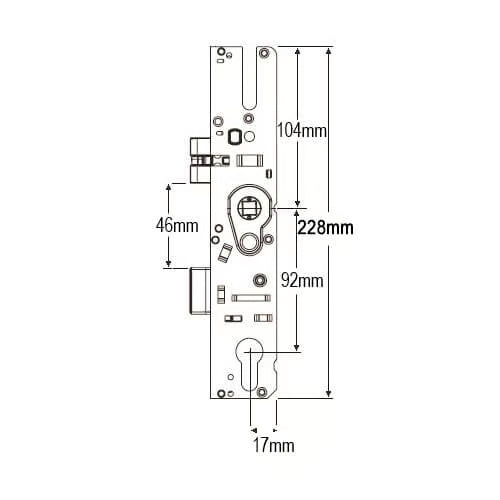

• Dimensions:
  • Height: 228mm
  • Width: Backset + 18mm
  • Centres (PZ): 92mm
  • Latch Height: 29mm
  • Deadbolt Height: 30mm
  • Distance from Latch to Deadbolt: 54mm
• Screw Fixing: The gearbox is secured to its faceplate with three screws:
• Top to Middle Screw: 57mm
• Middle to Bottom Screw: 180mm

• Associated Products: We offer a variety of related products for Maco G-TS gearboxes, including multipoint door locks, keeps, spindles, handles, and accessories.

Operation Instructions:

• To Lock the Door:
• 1. Lift the handle upwards to engage the locking points.
  2. Secure the locking points and main deadbolt (if applicable) by turning the key.

• To Unlock the Door:

  1. Turn the key to unlock the system.
  2. Push the handle downwards to disengage the locking points and retract the latch.

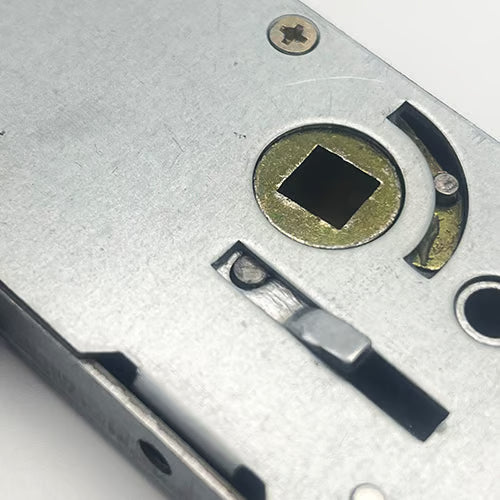

Latch Reversal: To reverse the latch, simply push up the serrated button on the side of the case, remove the latch, reverse it, and reinsert.

Product Specifications:

• Manufacturer: Maco
• Backset: 35mm
• Centres PZ: 92mm
• Case Height: 226mm
• Case Width: Backset + 18mm
• Copy/Genuine: Copy
• Cylinder Type: Euro
• Handing: Not Handed
• Main Gearbox: Latch & Deadbolt
• Spindle: Single 8mm
• Operation: Lift Lever
• Packaging: Supplied in singles
