GTS Copy Multipoint Gearbox - Serrated Latch Reversal Button - Lift Lever

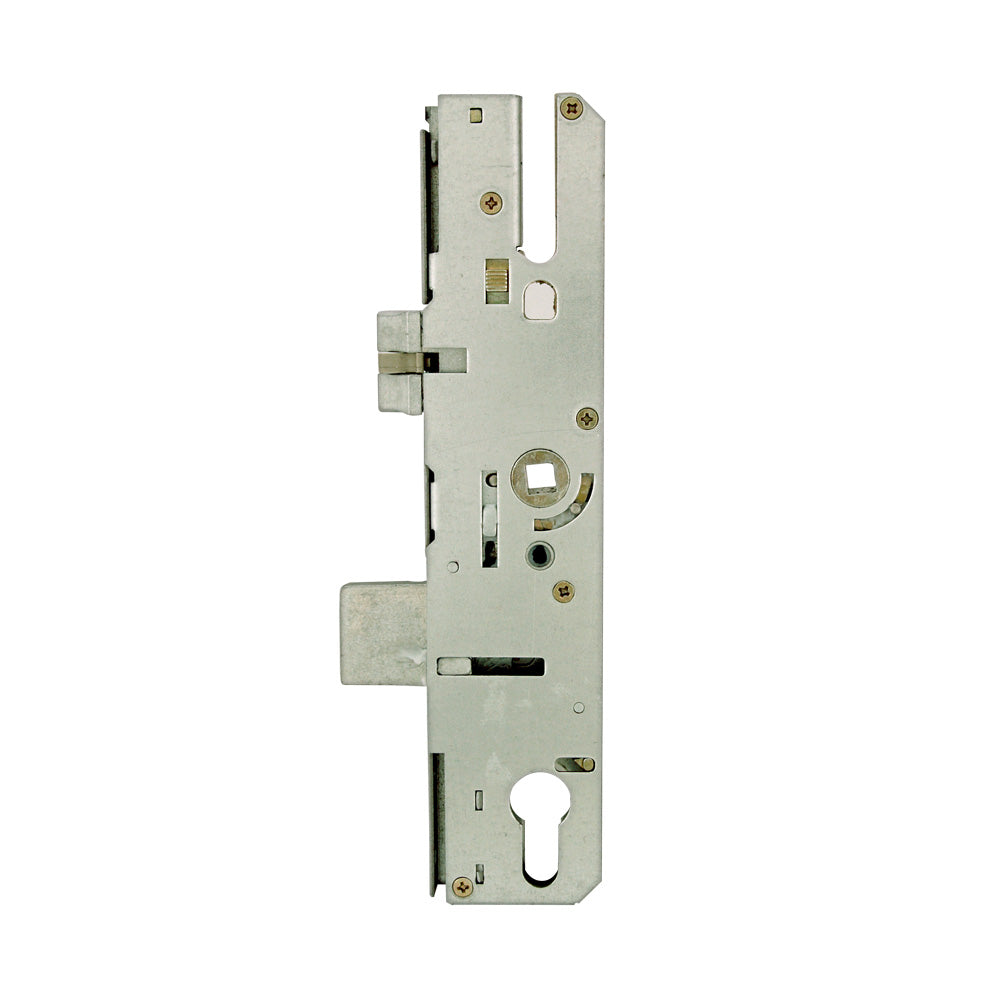

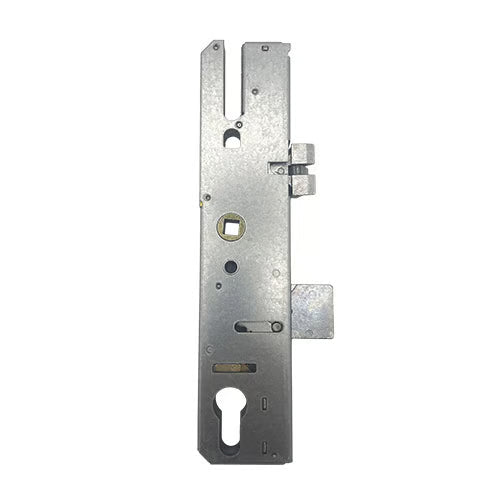

Product Overview: Maco GTS MK3 Copy Serrated Latch Reversal Button Multipoint Gearbox

The Maco GTS MK3 Copy Serrated Latch Reversal Button Multipoint Gearbox is designed for enhanced security and functionality in your doors. With a convenient lift lever function and a 35mm backset, this gearbox is an excellent choice for both residential and commercial applications.

Key Features:

• Compatibility: Ensure you select the correct version of the G-TS lock gearbox, as they are not interchangeable. The current model has been in production since 2010 and features distinct screw fixing positions compared to older versions.

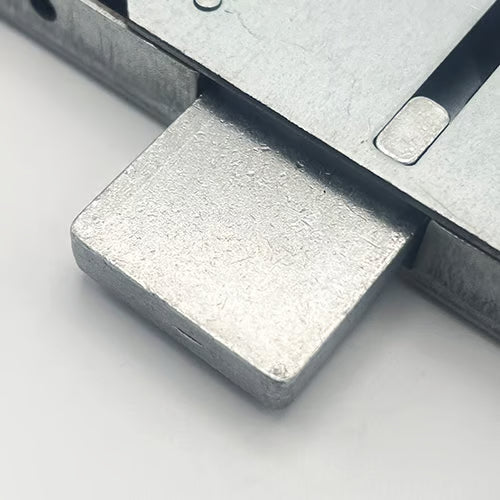

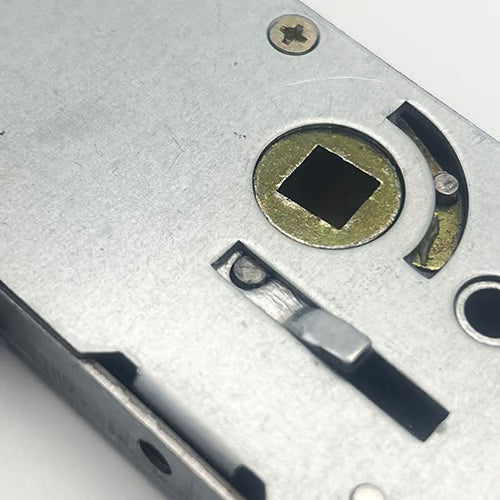

• Identification: The new version can be identified by its square latch reversal button located next to the latch, making it easy to distinguish from previous models.

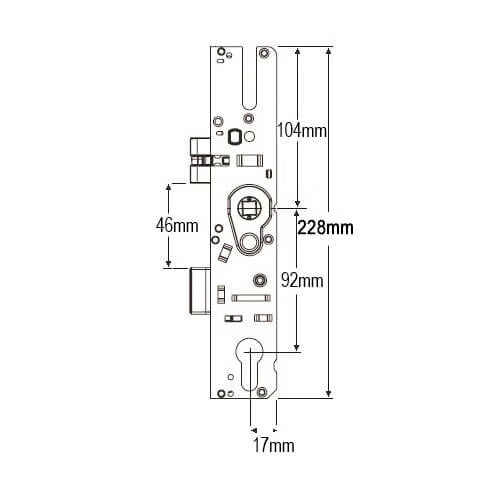

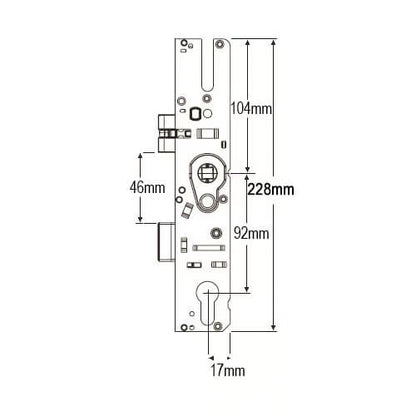

• Dimensions:

  • Height: 228mm
  • Width: Backset + 18mm
  • Centres (PZ): 92mm
  • Latch Height: 29mm
  • Deadbolt Height: 30mm
  • Distance from Latch to Deadbolt: 54mm

• Screw Fixing: The gearbox is secured to its faceplate with three screws:

  • Top to Middle Screw: 57mm
  • Middle to Bottom Screw: 180mm

Operation Instructions:

• Lift Lever Functionality: Operate the door with ease using the lift lever feature.

• Latch Reversal: To reverse the latch, simply push up the serrated button on the side of the case, remove the latch, reverse it, and reinsert.

Additional Products:

We offer a comprehensive range of associated products for Maco G-TS gearboxes, including:

• Multipoint door locks
• Keeps
• Spindles
• Handles
• Accessories

Enhance your door security with the reliable and efficient Maco GTS MK3 gearbox, designed to meet your needs with precision and ease.

To measure the backset and centres for the Maco GTS MK3 gearbox, follow these guidelines:

Measuring the Backset:

1. Definition: The backset is the distance from the edge of the door to the center of the keyhole or the latch.

2. How to Measure:

   • Use a tape measure.
   • Place one end of the tape measure at the edge of the door.
   • Measure straight across to the center of the latch or keyhole.
   • For the Maco GTS MK3, the backset should be 35mm.

Measuring the Centres (PZ):

1. Definition: The centres measurement (PZ) is the distance from the center of the keyhole to the center of the latch.

2. How to Measure:

   • Again, use a tape measure.
   • Measure from the center of the keyhole to the center of the latch.
   • For this gearbox, the centres (PZ) should be 92mm.

Operation of the Gearbox:

The Maco GTS MK3 operates using a lift lever mechanism. This means that to unlock or lock the door, you simply lift the lever upwards. This design provides ease of use, allowing for smooth operation when entering or exiting.

By following these steps, you can ensure accurate measurements and understand the operation of your Maco GTS MK3 gearbox effectively.
