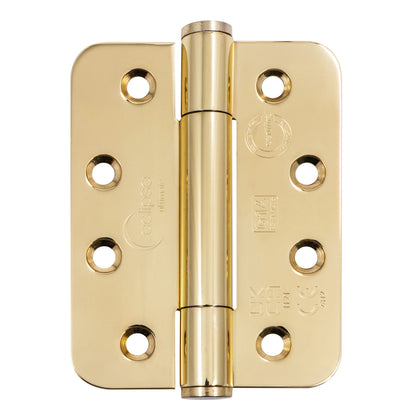

Grade 14 Radius Concealed Bearing Hinge

Introducing the Eclipse Stainless Steel Radius Concealed Bearing Hinge, a perfect blend of durability and style for your door hardware needs.

Manufactured with precision, this hinge features 10mm radius corners and is rated for Grade 14, supporting a total door mass of 160 kg. It meets rigorous standards with certifications including CE 1121, UKCA 2812, and Certifire.

Performance is key, and this hinge has been BS EN1935 performance tested for 200,000 cycles to Grade 14, ensuring long-lasting reliability. Additionally, it has undergone BS EN1634 fire testing for FD30, 60, 90, and 120-minute timber doors, as well as a FD240-minute steel door rating.

Specifications:

• Dimensions: 102x76x3mm
• Gauge: 10 gauge countersunk
• Screws: Supplied with 10×1.1/4″ fully threaded screws
• Pack Quantity: Supplied as a pack of 2

Finish Options:

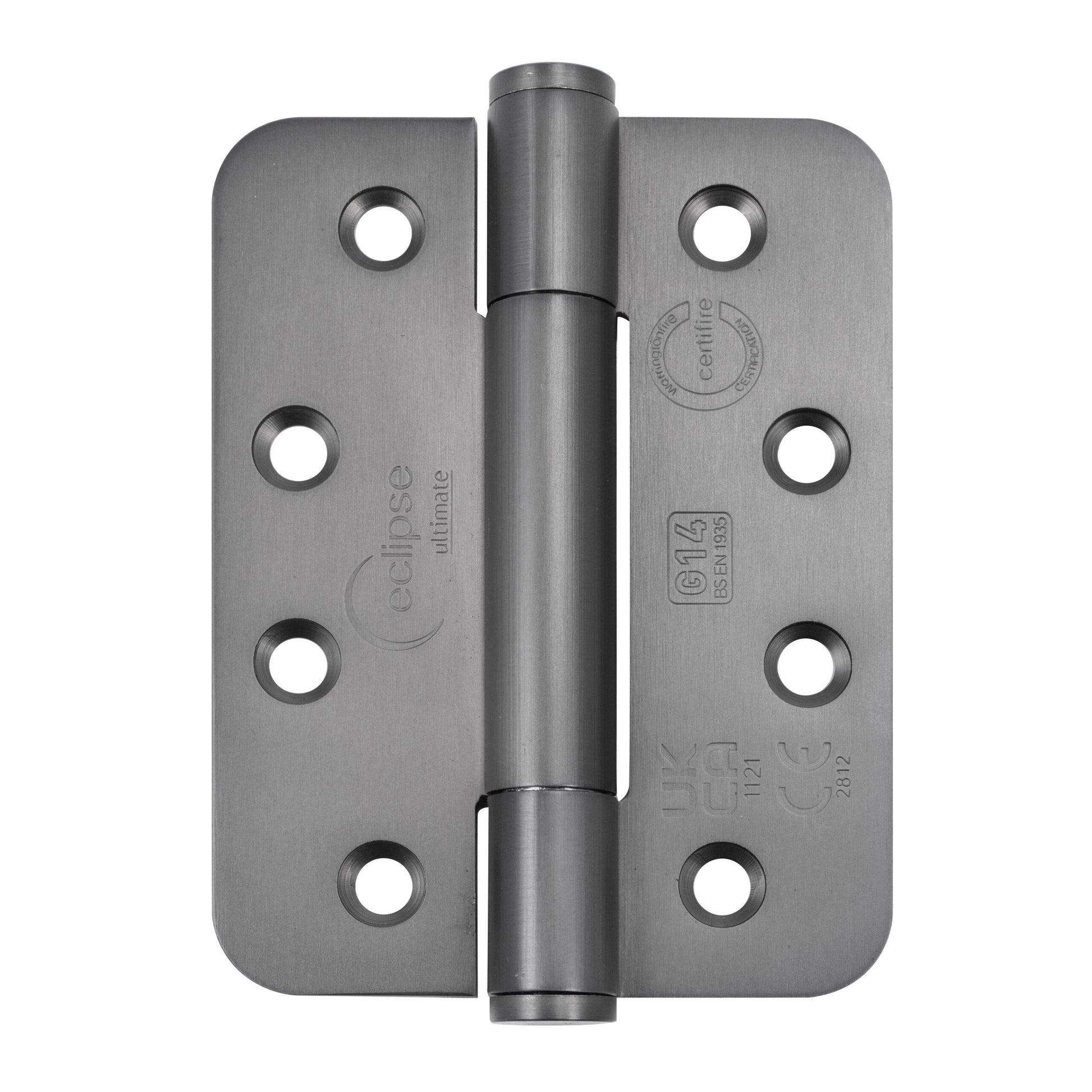

• Dark Bronze

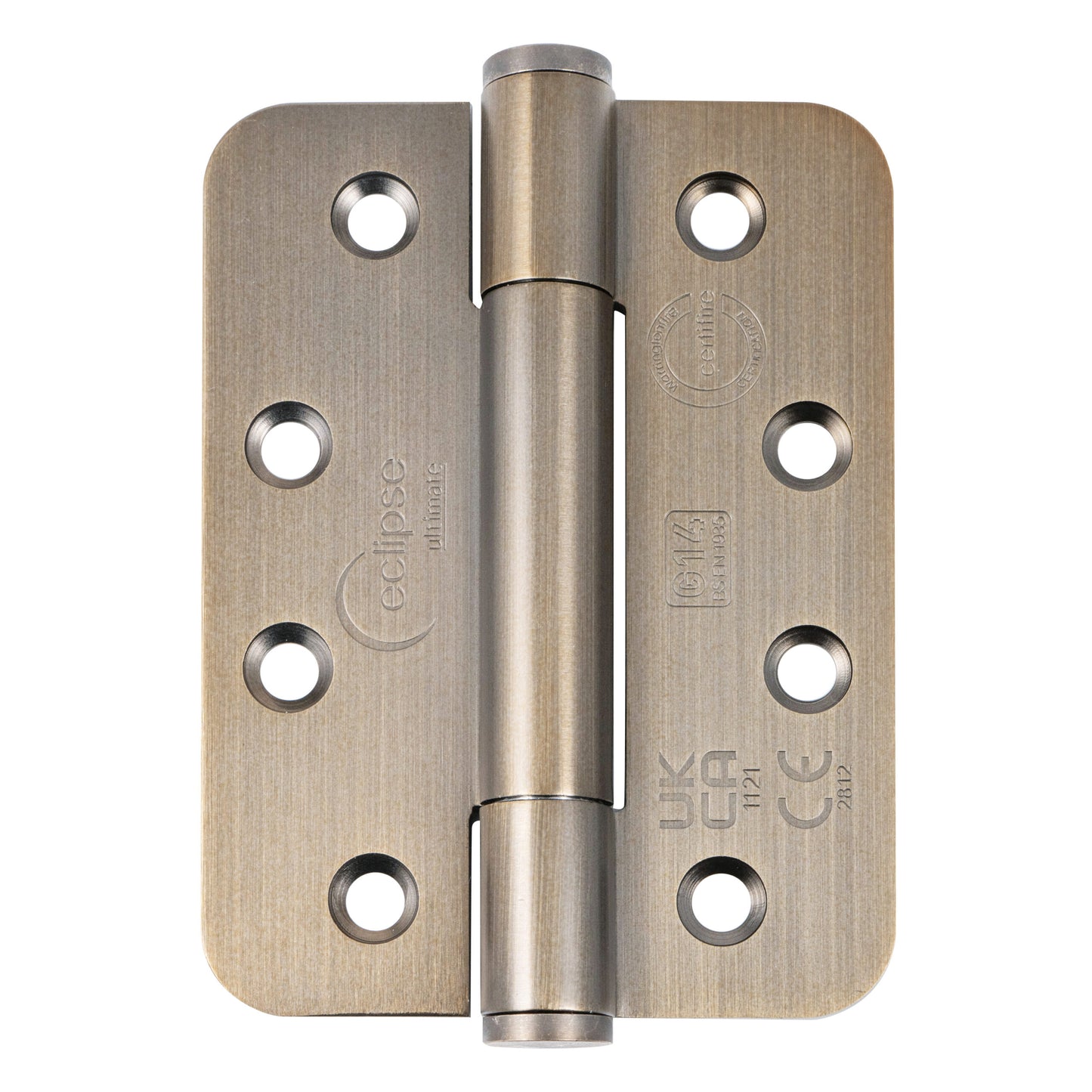

• Matt Antique Brass

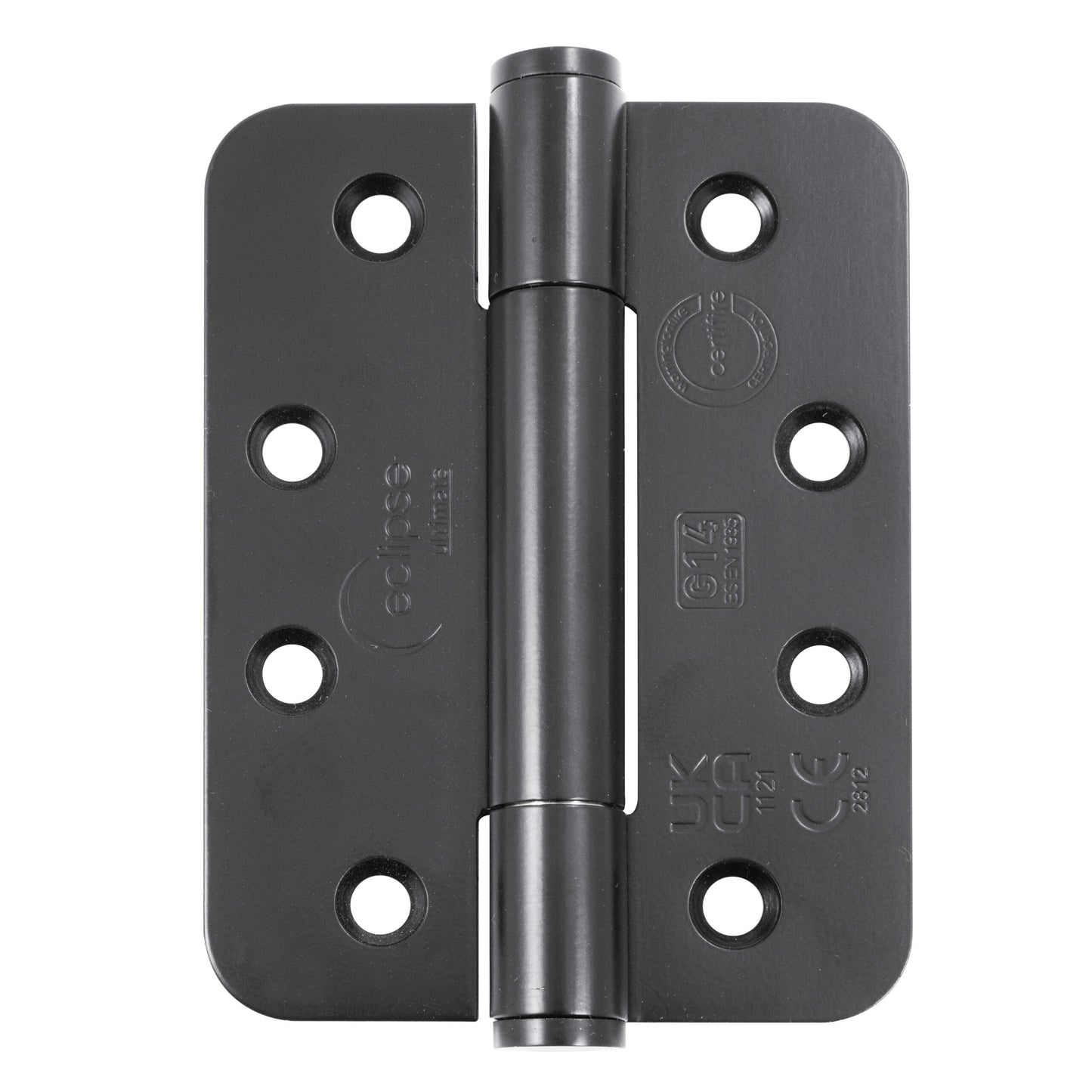

• Matt Black

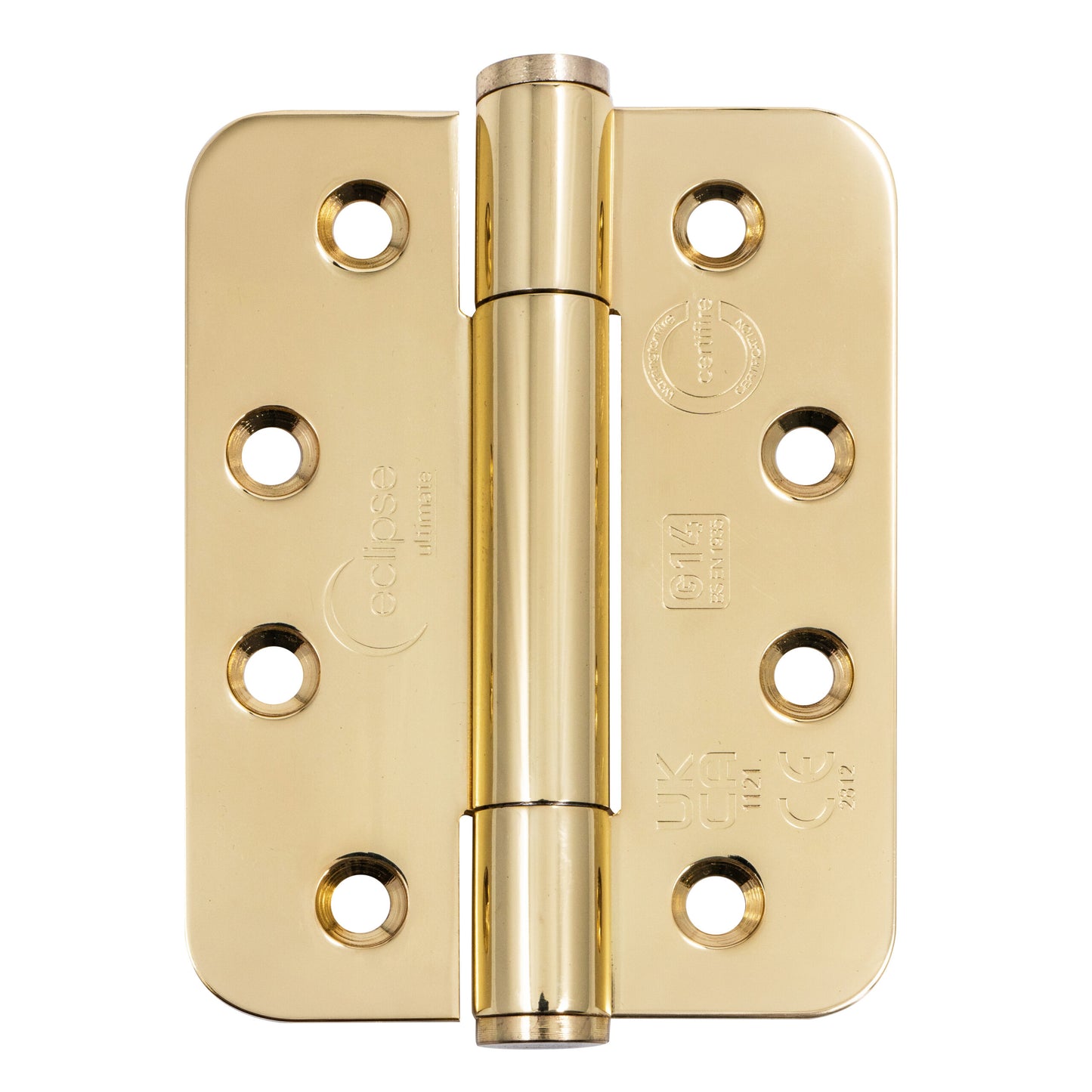

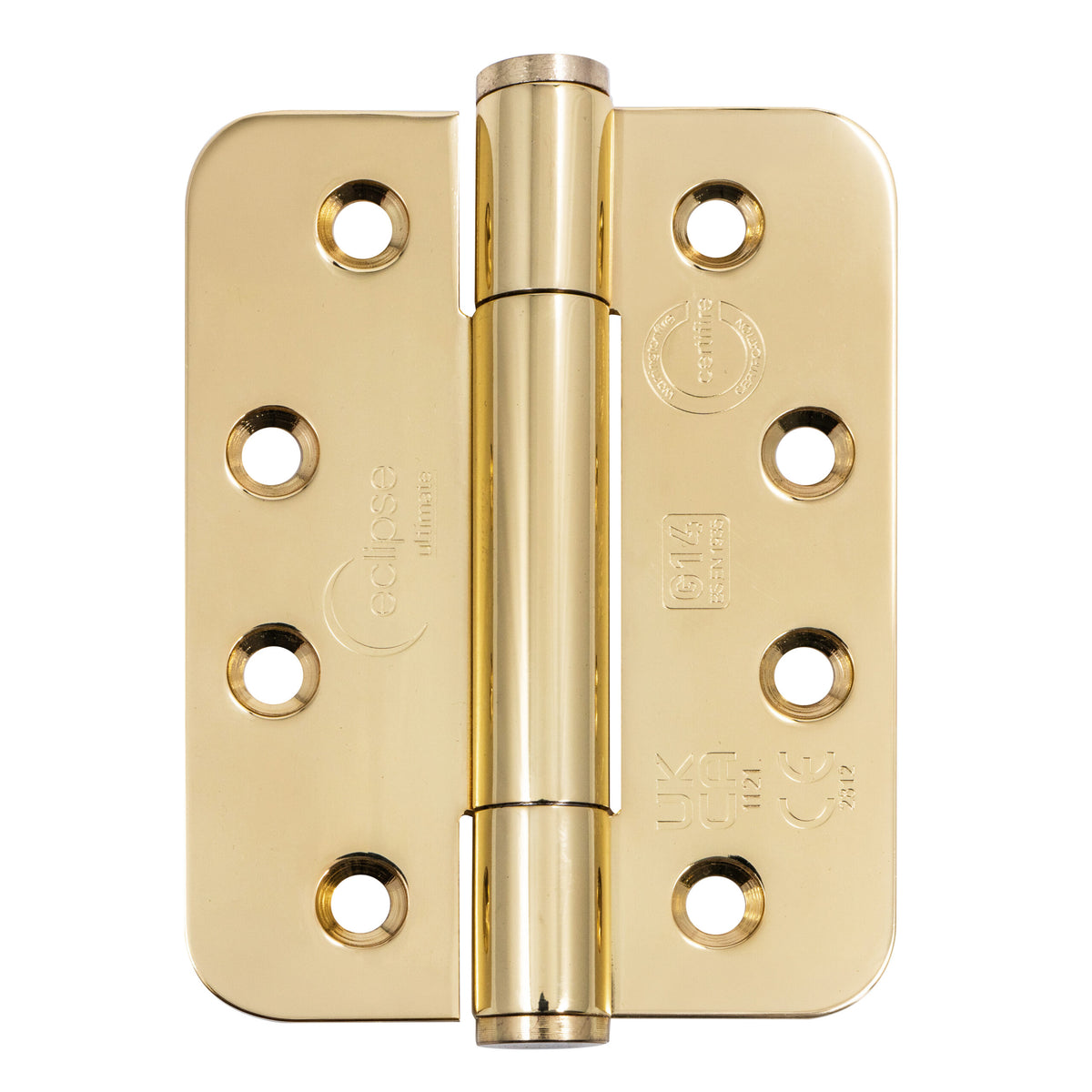

• Polished Brass

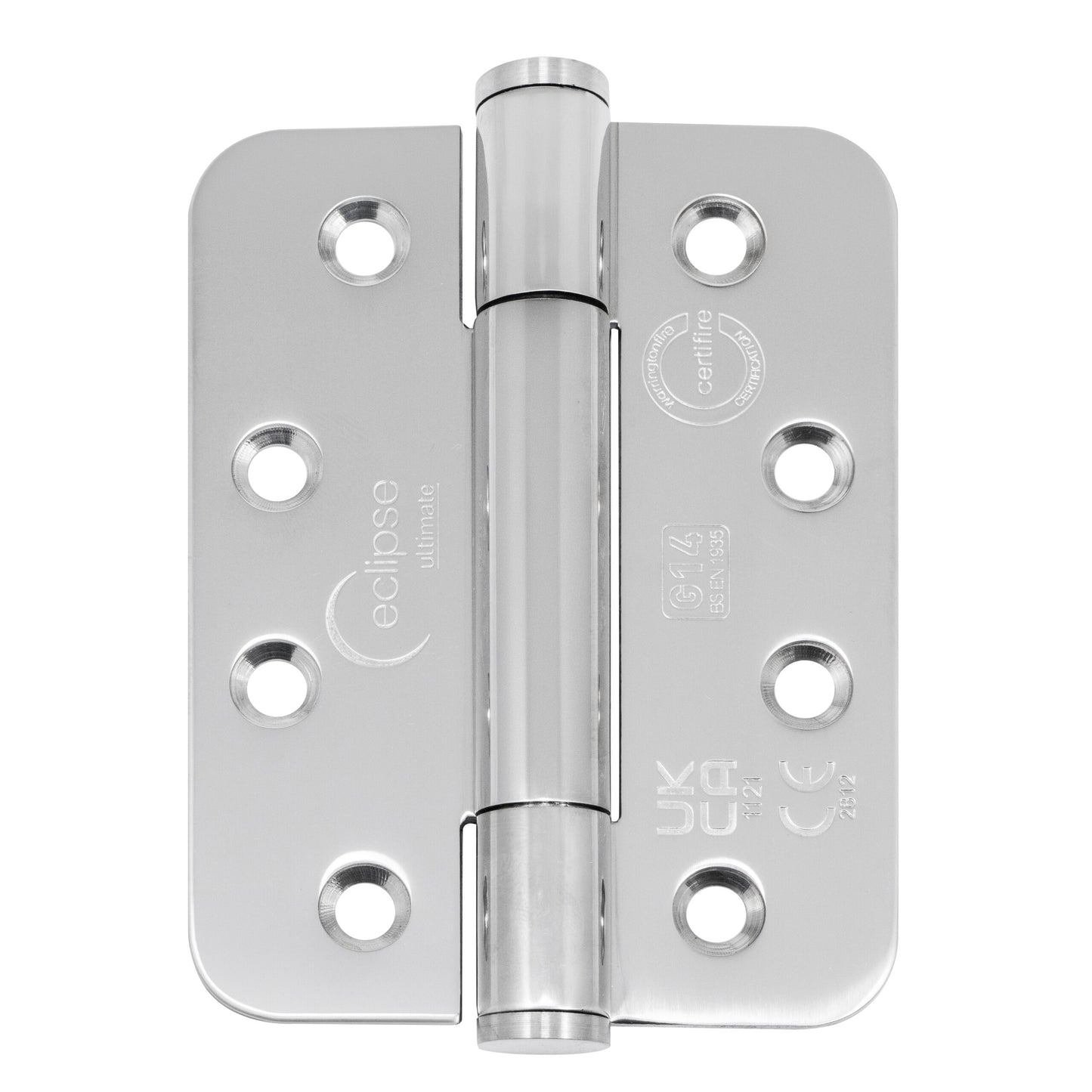

• Polished Stainless Steel

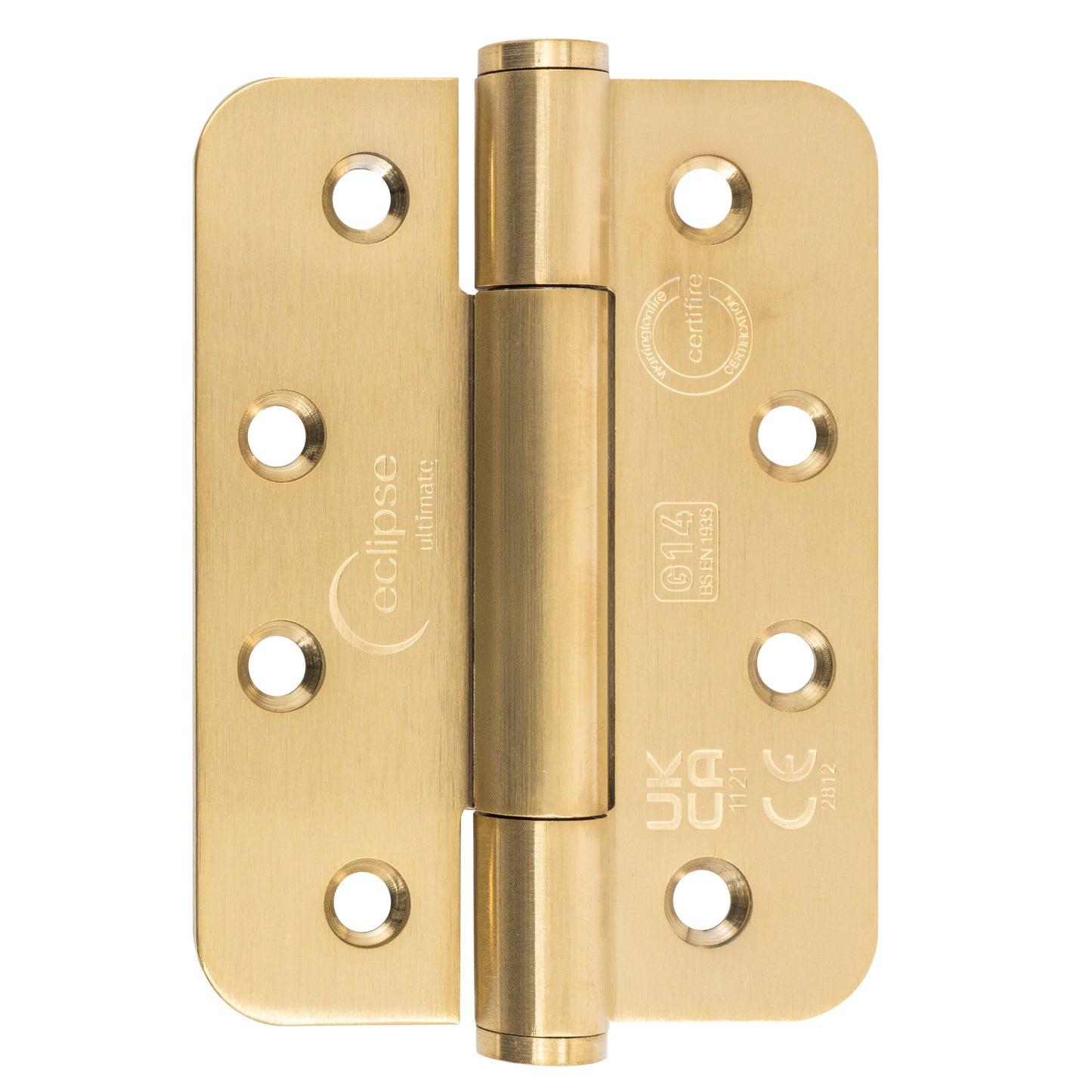

• Satin Brass

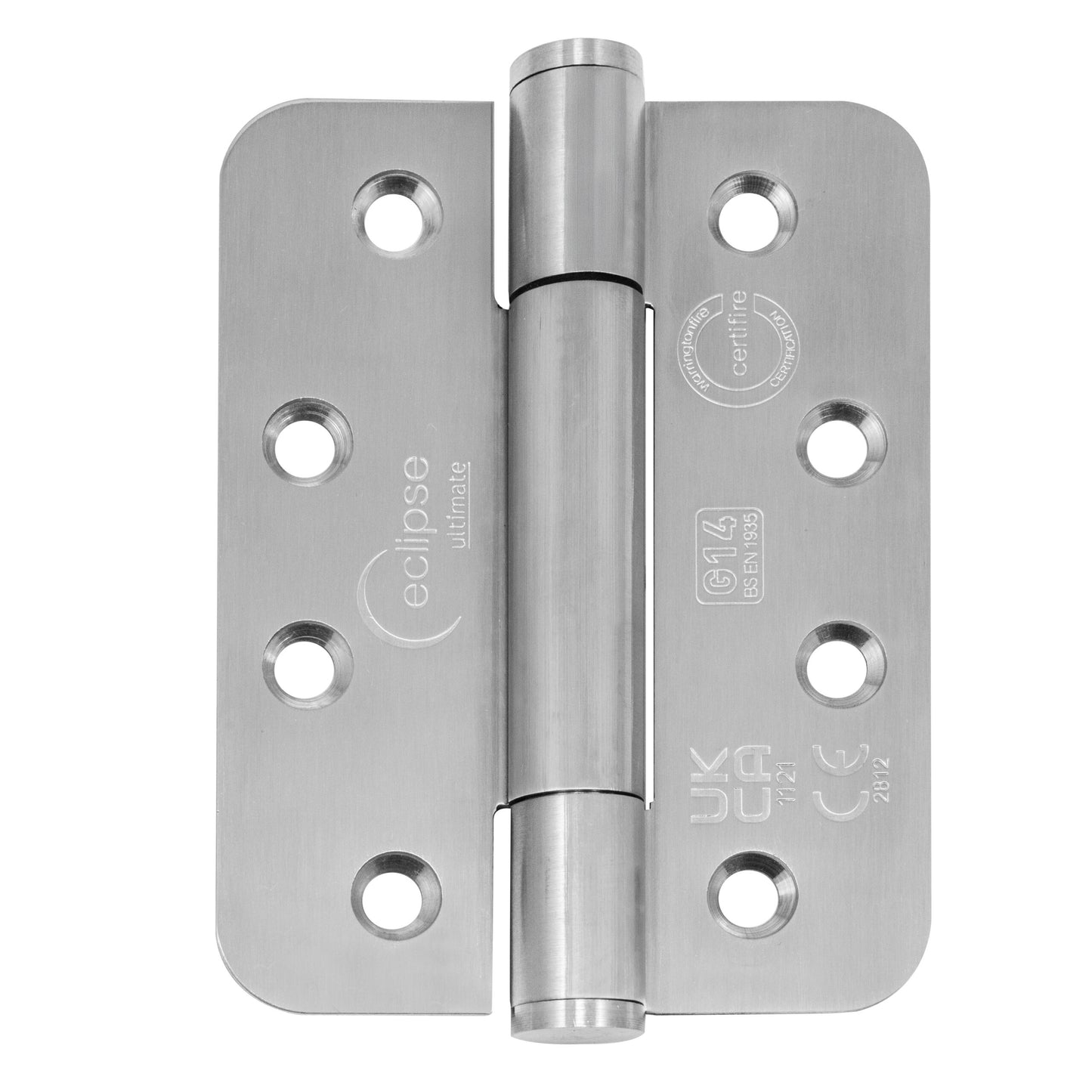

• Satin Stainless Steel

Elevate your door's functionality and aesthetic with the Eclipse Stainless Steel Radius Concealed Bearing Hinge, designed for both performance and style.
