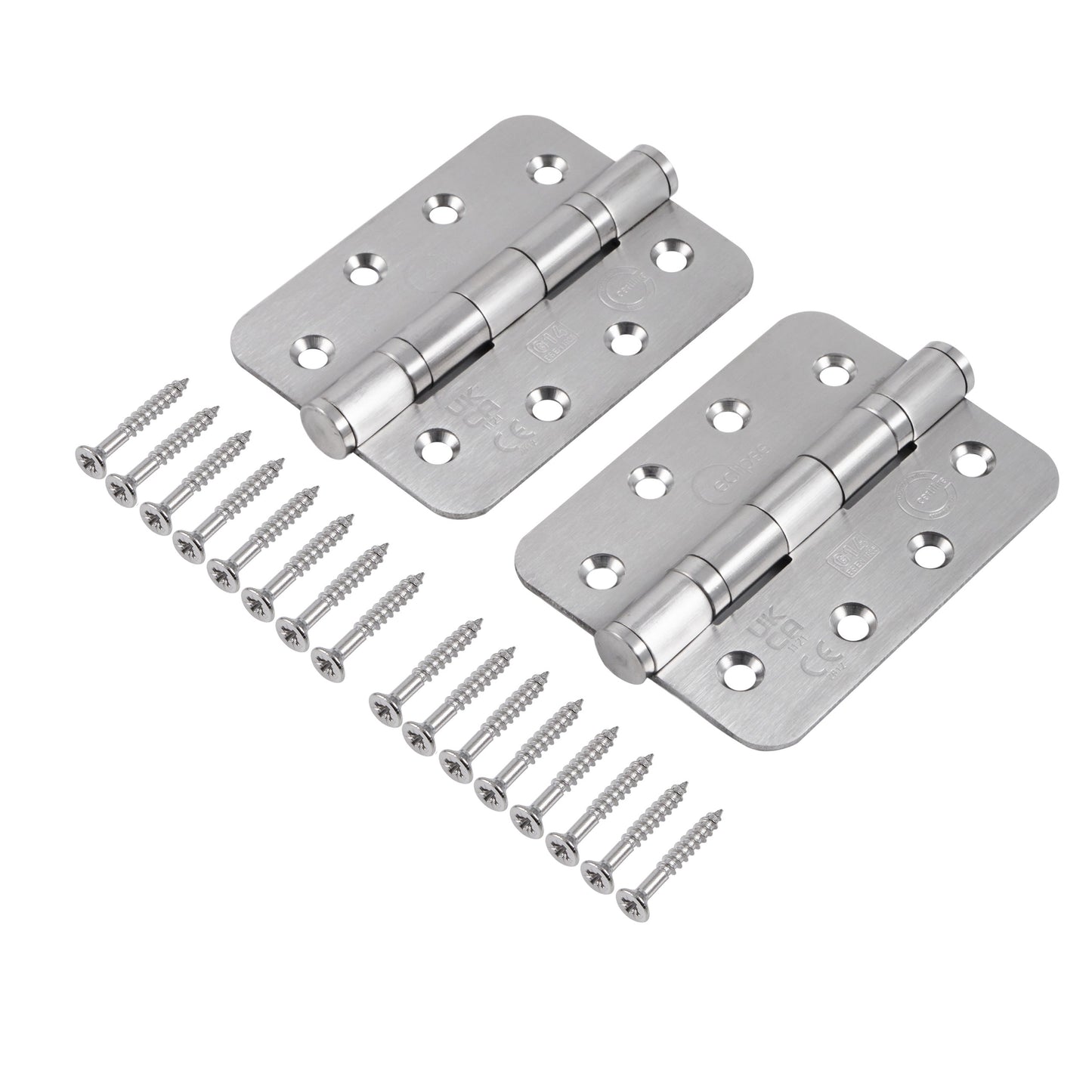

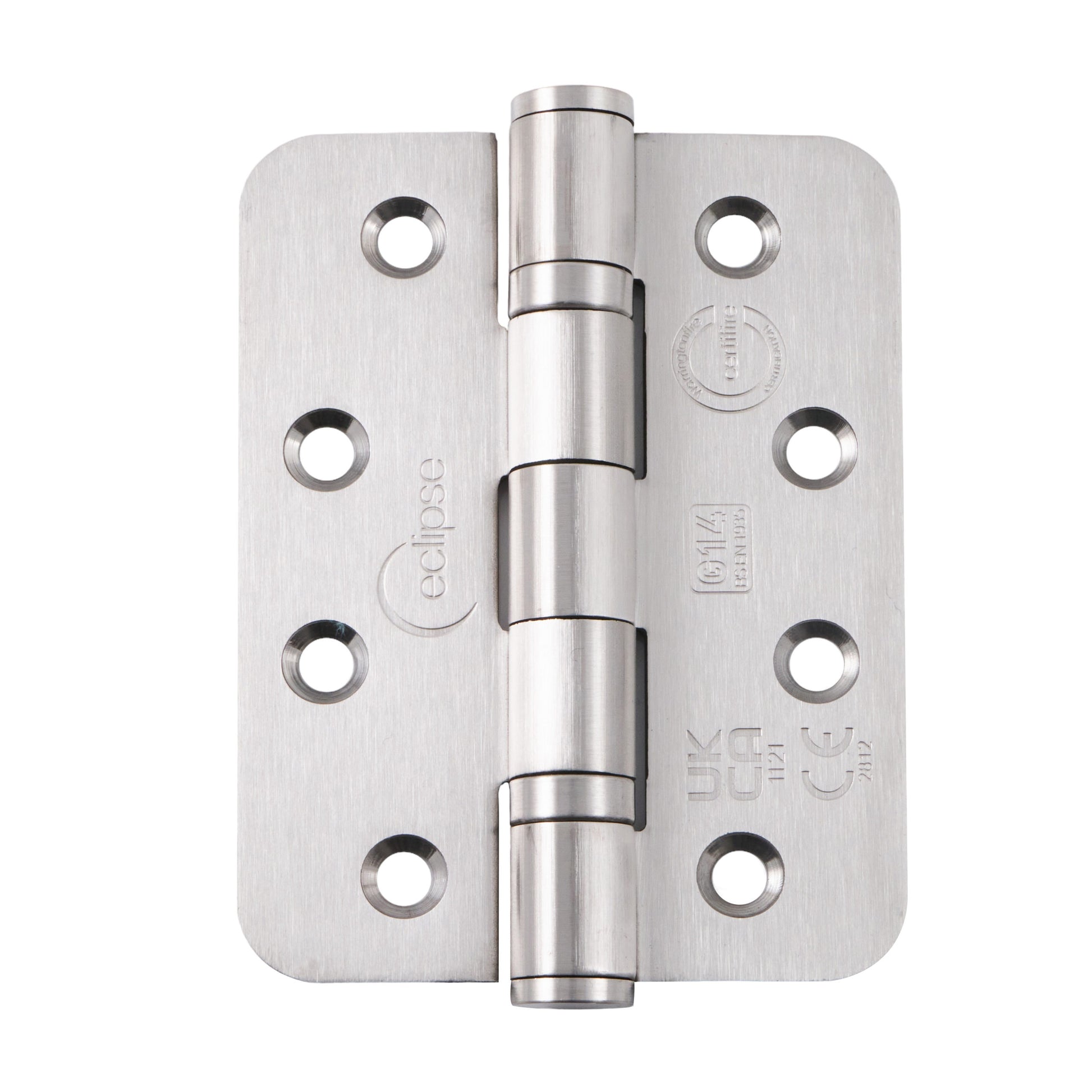

Grade 14 Radius Ball Bearing Hinge

Introducing the Eclipse Stainless Steel Radius Ball Bearing Hinge, designed for durability and performance in high-demand environments.

Key Features:

• Grade 14 Strength: Capable of supporting a total door mass of 160 kg, ensuring reliability for heavy doors.
• Premium Material: Crafted from SUS 201 stainless steel, offering excellent corrosion resistance and longevity.
• Certified Performance:
• CE 2812 and UKCA 1121 certified for compliance with safety standards.
• Certifire CF336 certification guarantees fire safety performance.
• Extensive Testing:
• BS EN1935 performance tested for 200,000 cycles, meeting Grade 14 standards.
• BS EN1634 fire tested for FD30, FD60, FD90, and FD120 minute timber doors, as well as FD240 minute steel doors.
• Dimensions: Measuring 102x76x3mm, this hinge is designed to fit a variety of door applications.

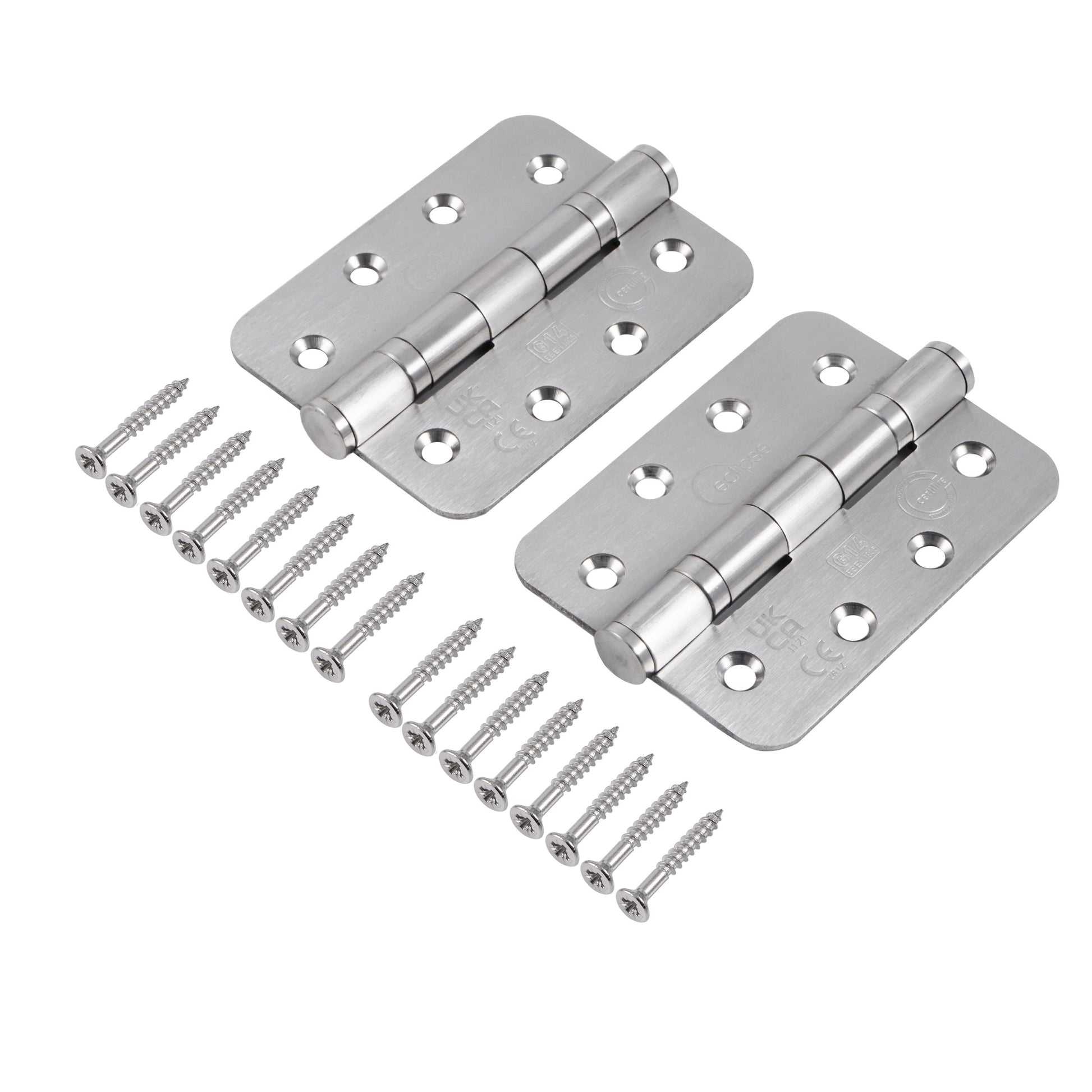

• Installation Ready: Supplied with 12×1.1/2″ Pozi Drive 3/4″ threaded screws for easy installation.

Specifications:

• Base Material: 201 Stainless Steel
• Bearing Type: Ball Bearing
• BSEN 1935 Grade: 14
• Certification: CE & CERTIFIRE, UKCA
• Finish: Satin Stainless Steel
• Fixings Included: Yes
• Pack Quantity: 1 Pair

Upgrade your door hardware with the Eclipse Stainless Steel Radius Ball Bearing Hinge for unmatched strength and reliability.
