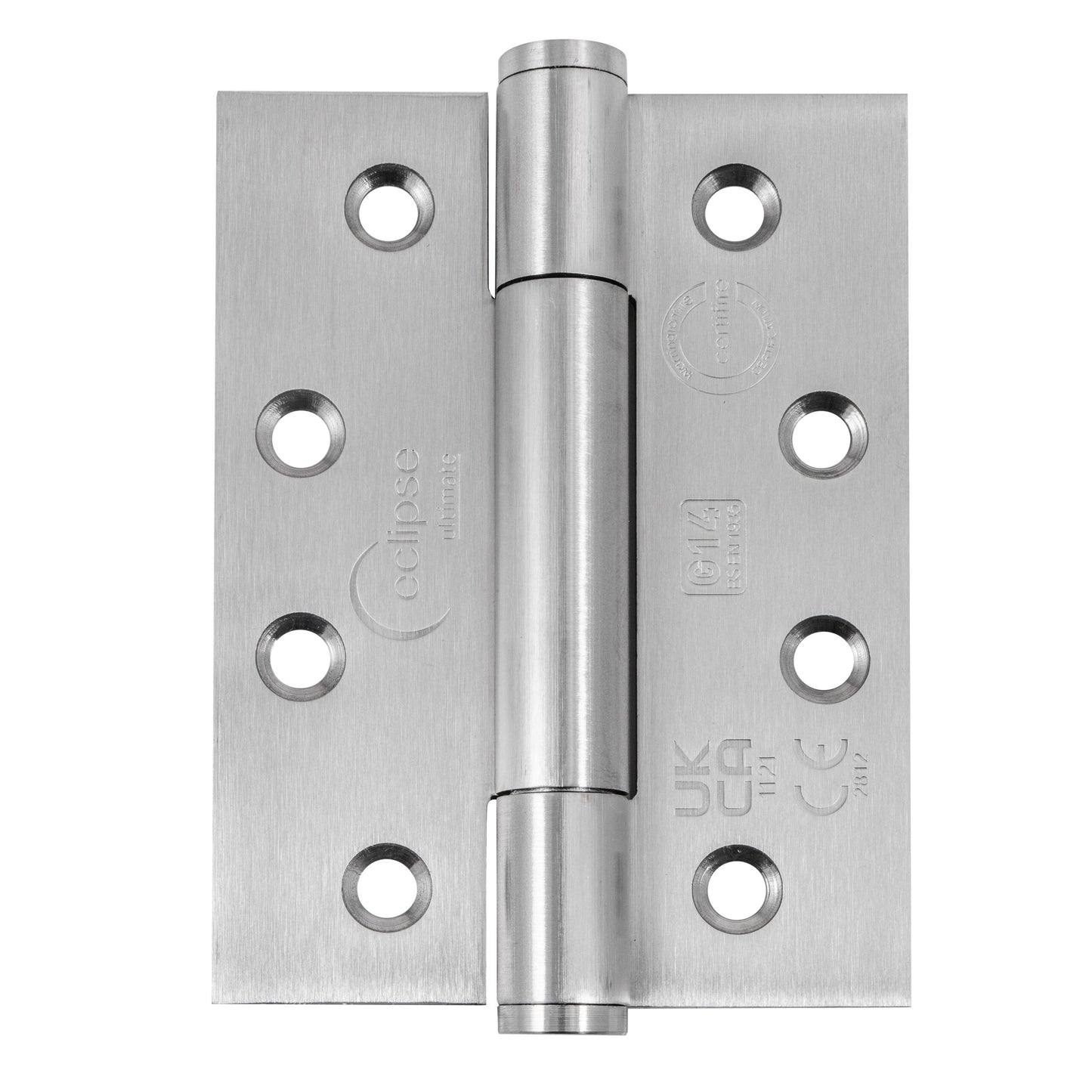

Grade 14 Concealed Bearing Hinge

Introducing the Eclipse Stainless Steel Concealed Bearing Hinge, a premium choice for your door hardware needs.

This hinge is designed to support a total door mass of 160 kg, ensuring durability and reliability. It meets rigorous standards with certifications including CE 1121, UKCA 2812, and Certifire, making it a trusted option for both residential and commercial applications.

With a performance tested rating of 200,000 cycles to Grade 14 under BS EN1935, you can count on its longevity. Additionally, it has been fire tested according to BS EN1634, providing options for FD30, 60, 90, and 120-minute timber doors, as well as a FD240-minute steel door.

Specifications:

• Dimensions: 102x76x3mm
• Gauge: 10 Guage Countersunk
• Screws: Supplied with 10×1.1/4″ fully threaded screws
• Pack Quantity: Supplied as a pack of 2

Finish Options:

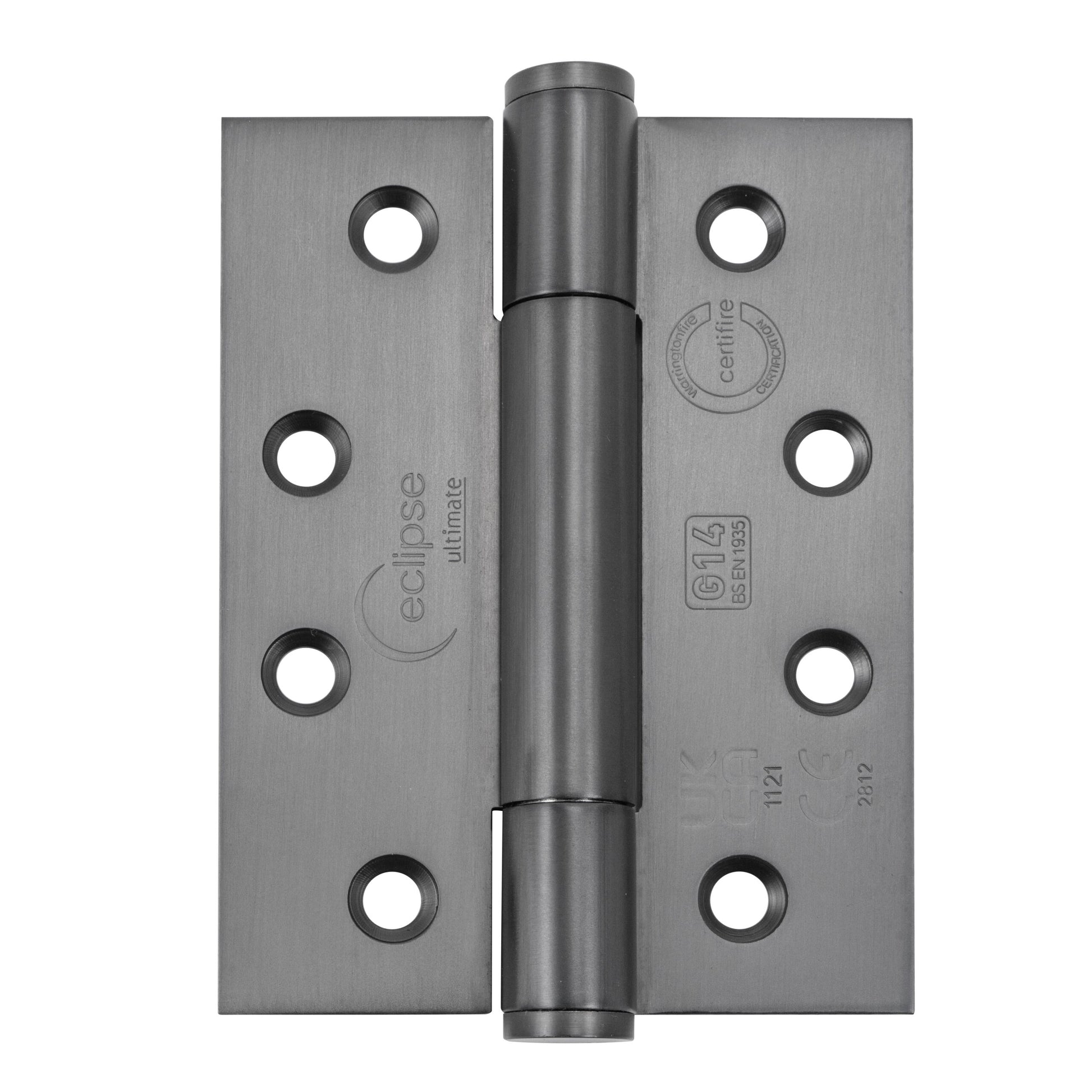

• Dark Bronze

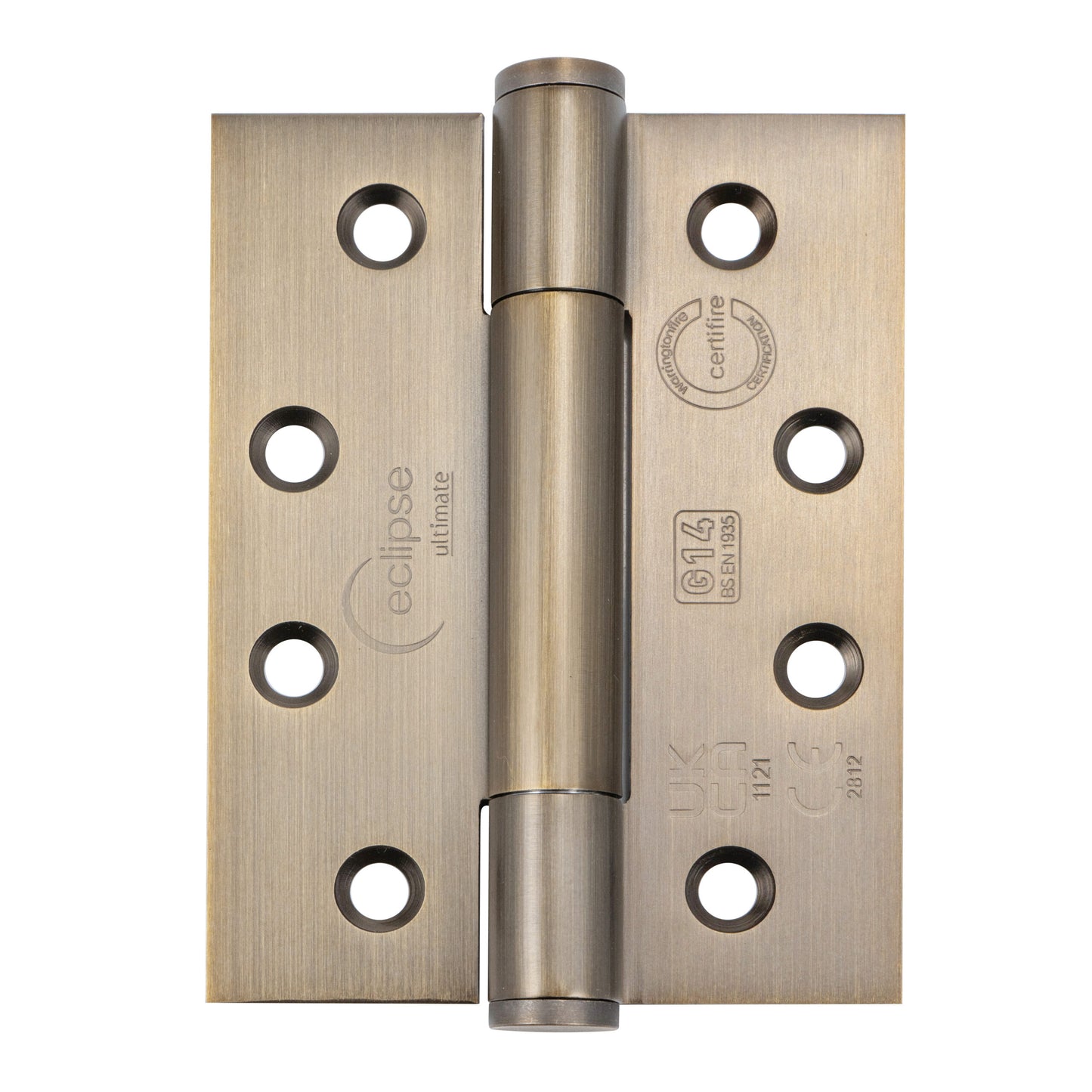

• Matt Antique Brass

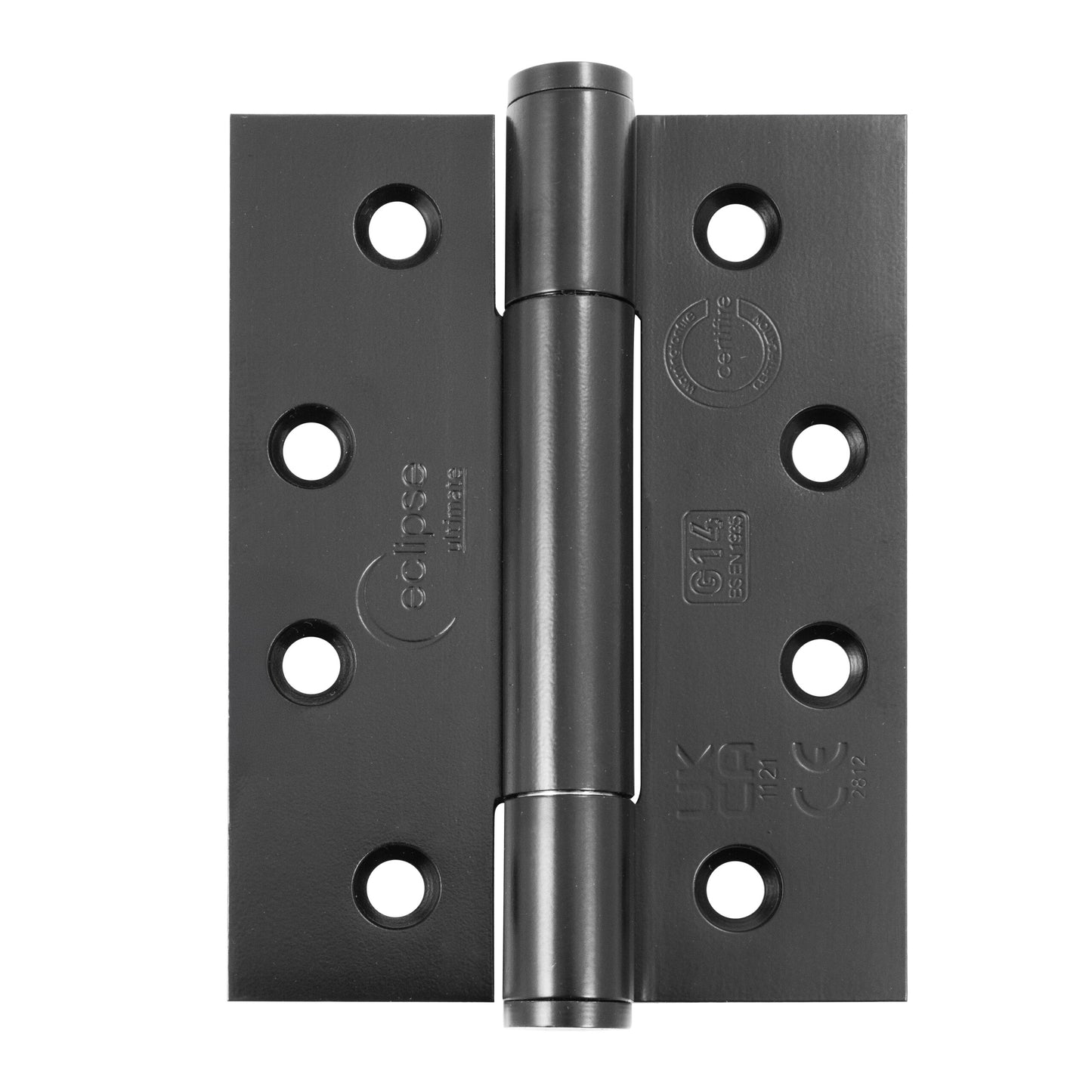

• Matt Black

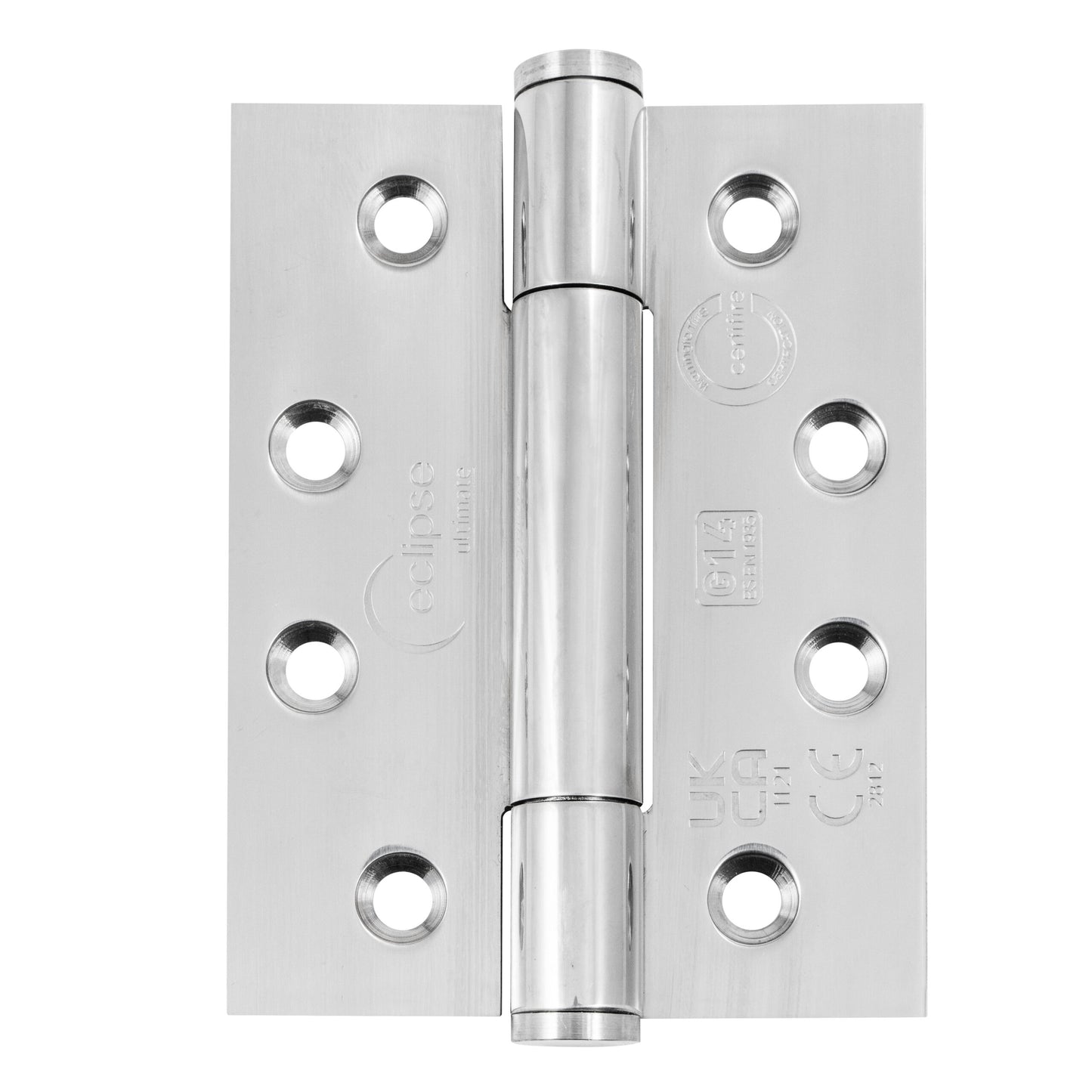

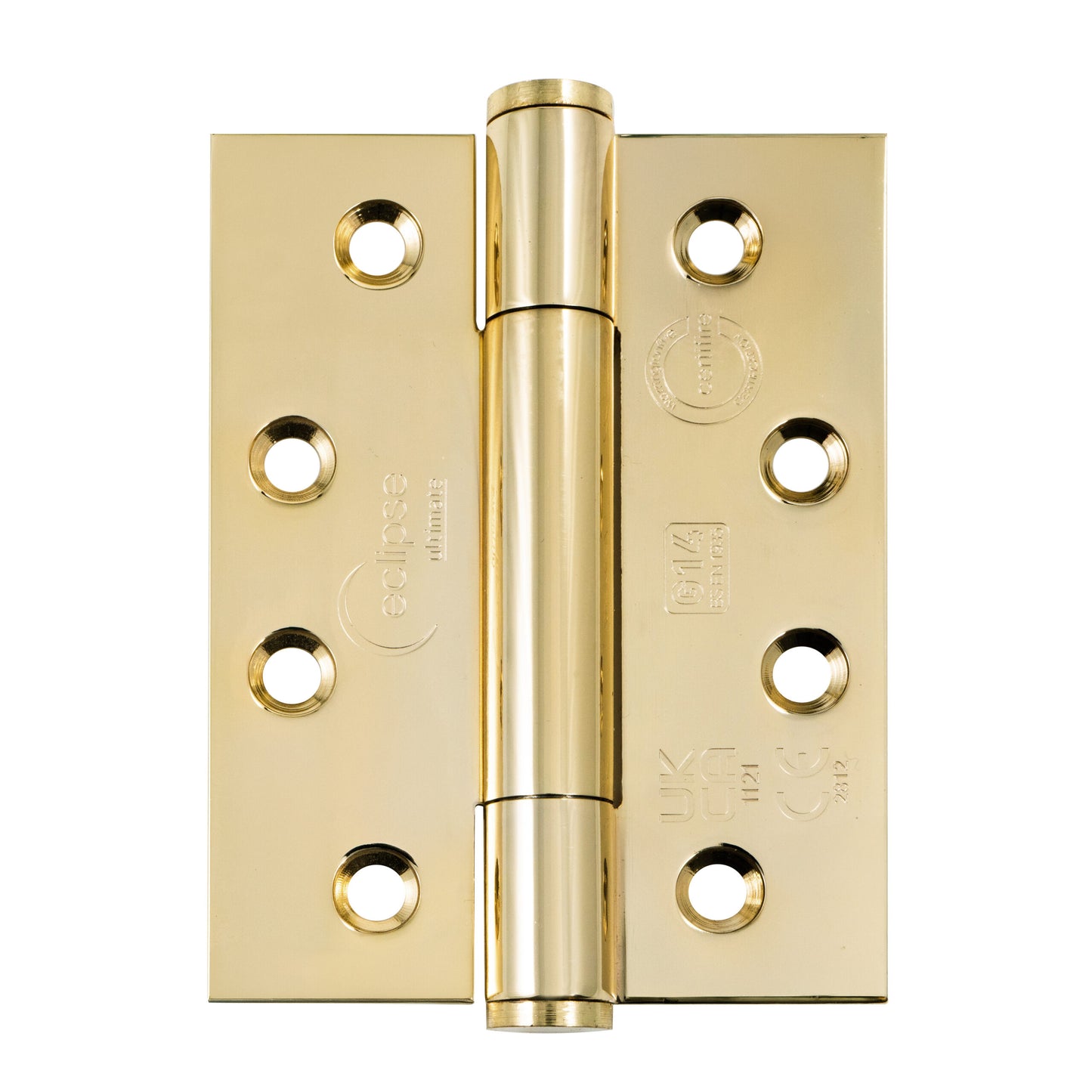

• Polished Brass
• Polished Stainless Steel

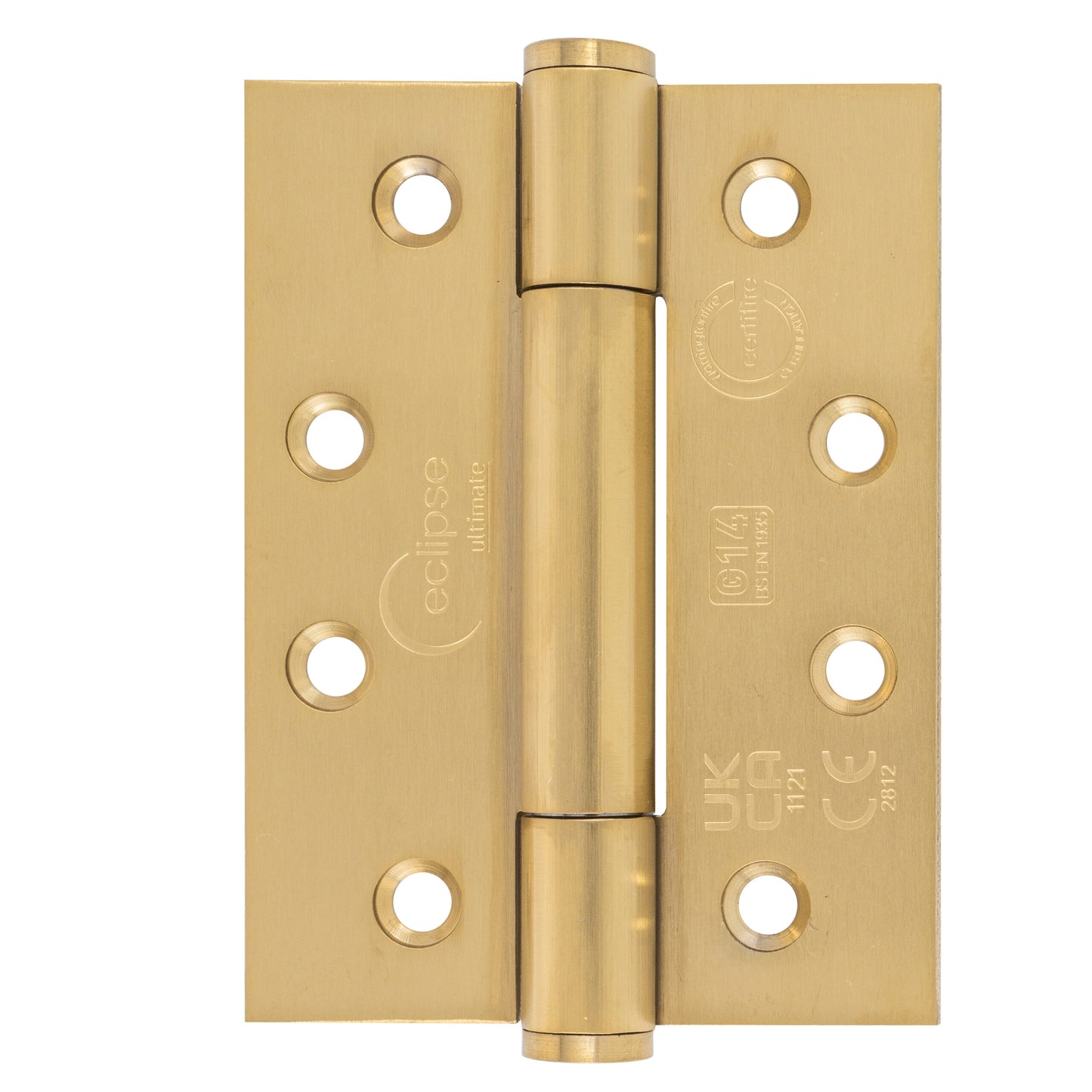

• Satin Brass
• Satin Stainless Steel

Elevate your door's functionality and aesthetic with the Eclipse Stainless Steel Concealed Bearing Hinge, where quality meets style.
