Grade 14 Ball Bearing Hinge

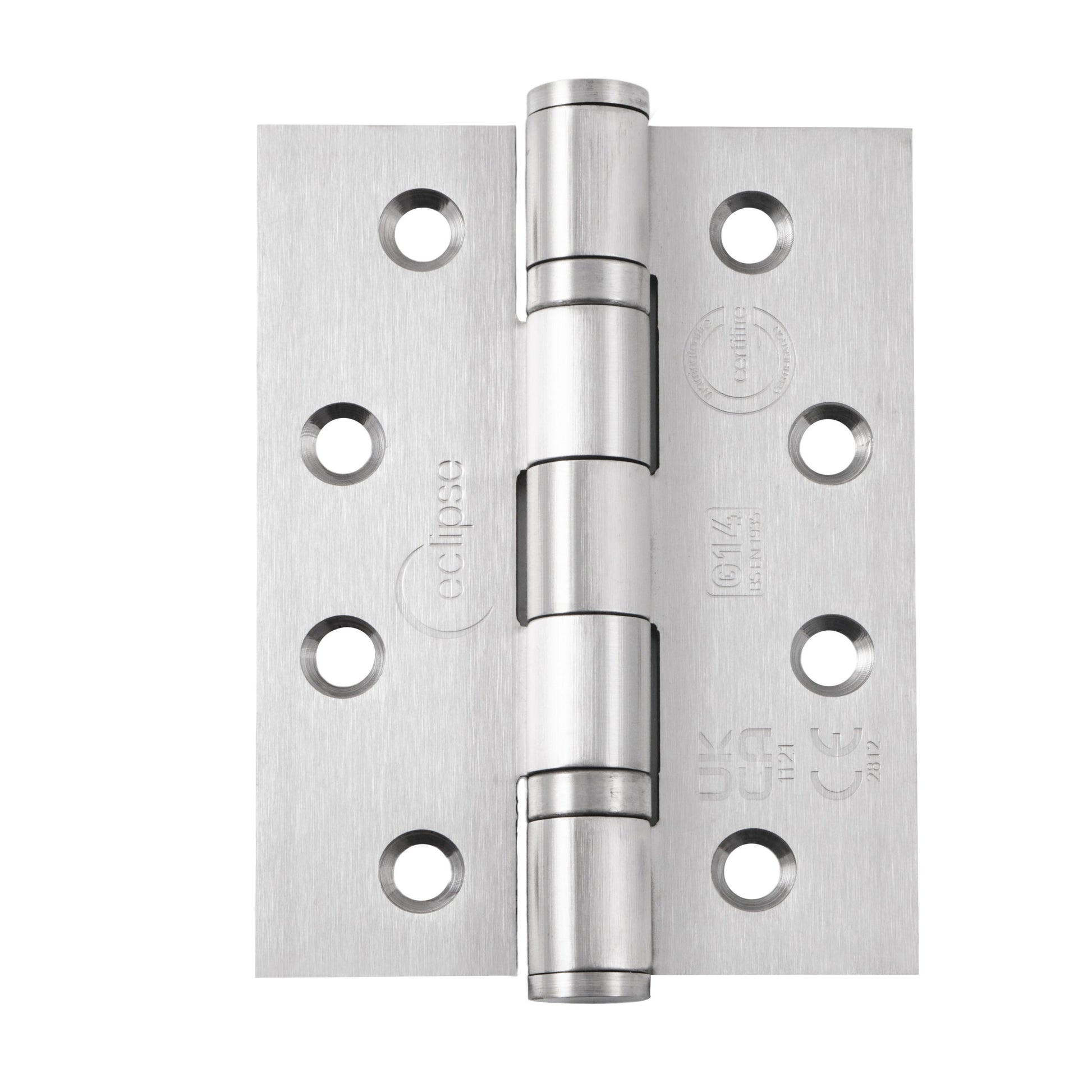

Introducing the Eclipse Stainless Steel Bearing Hinge, a robust and reliable solution for your door needs.

Key Features:

• Grade 14 Strength: Designed to support a total door mass of up to 160 kg, ensuring durability and stability.
• Premium Material: Crafted from SUS 201 stainless steel, this hinge offers excellent corrosion resistance and longevity.
• Certified Performance:
• CE 2812 and UKCA 1121 certified for quality assurance.
• Certifire CF336 certification guarantees fire safety.
• BS EN1935 performance tested for 200,000 cycles, meeting Grade 14 standards.
• Fire Resistance: Successfully tested for FD30, FD60, FD90, and FD120 minutes on timber doors, and FD240 minutes on steel doors.
• Dimensions: Compact size of 102x76x3mm, perfect for various applications.

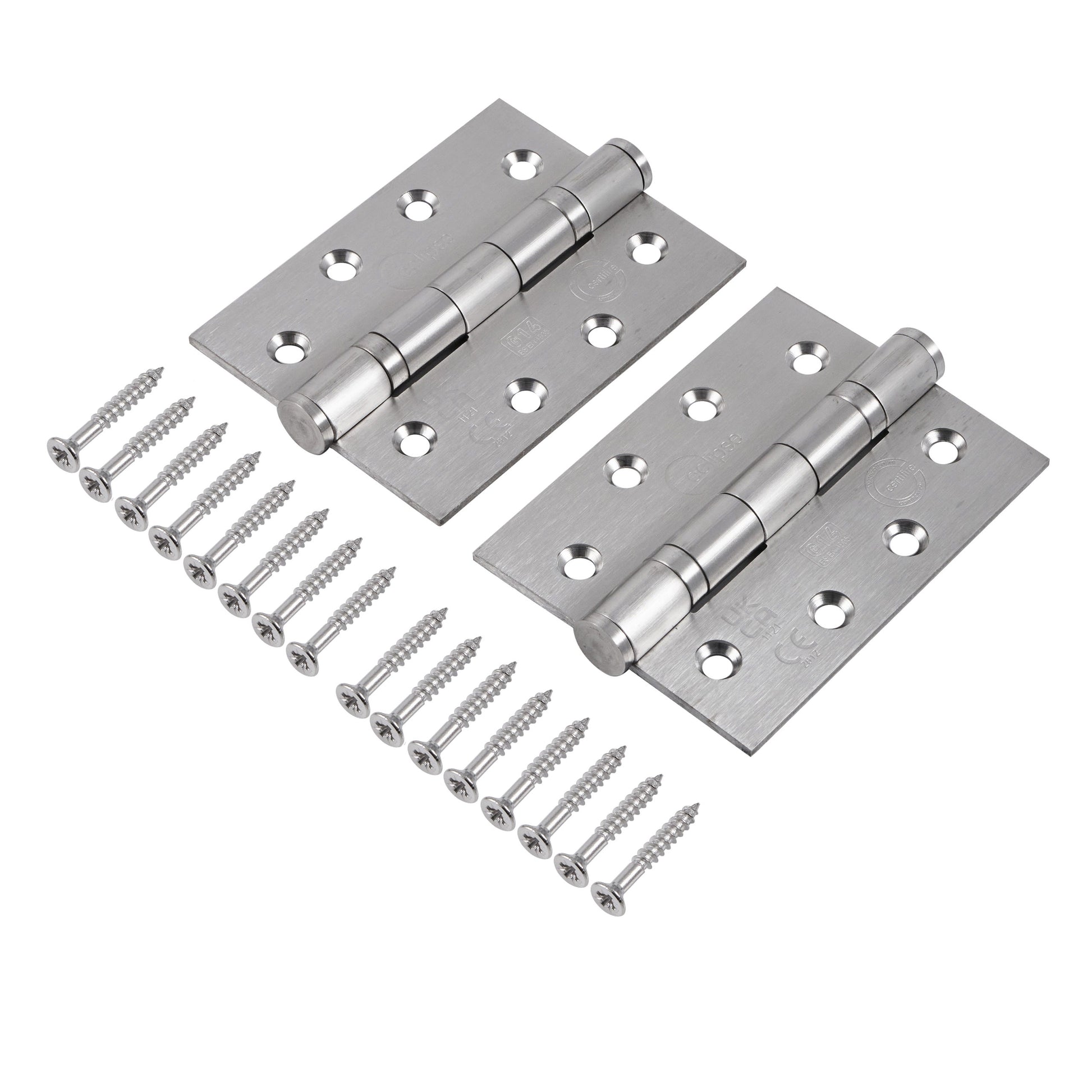

• Easy Installation: Supplied with 12×1.1/2″ Pozi Drive screws, featuring a 3/4″ threaded design for secure fitting.

Specifications:

• Bearing Type: Ball bearing for smooth operation.
• Base Material: 201 Stainless Steel for enhanced durability.
• BSEN 1935 Grade: 14, ensuring high performance.
• Certification: CE & CERTIFIRE, UKCA for compliance and safety.
• Finish: Satin stainless steel for a sleek appearance.
• Fixings: All necessary fixings included for convenience.

Upgrade your door hardware with the Eclipse Stainless Steel Bearing Hinge, combining strength, safety, and style in one exceptional product.
